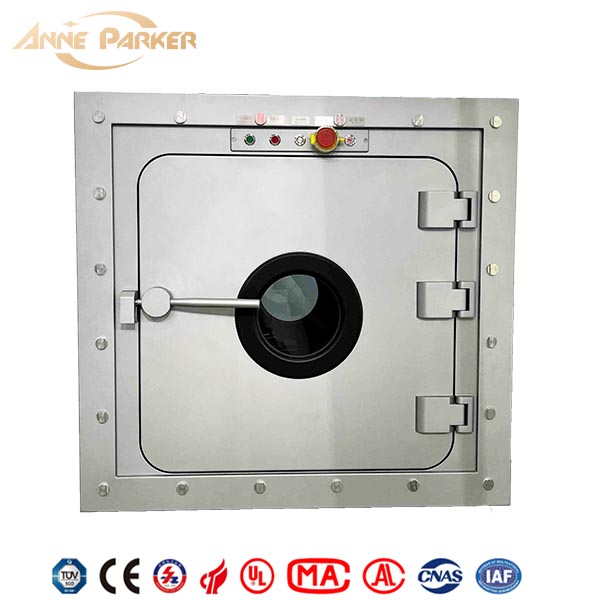

Biosafety Airtight Stainless Steel Pass Box in Biosafety Lab

Biosafety airtight pass box is mainly used in rooms with airtight requirements in high-level biosafety laboratories (BSL-3, BSL-4, ABSL-3, ABSL-4), which can solve the airtight problem of logistics channels. The double doors of the airtight transfer window adopt mechanical and inflatable double sealing methods to ensure the air tightness of the logistics channel, that is, the high elastic sealing ring and inflatable sealing ring are installed on the door panel of the transfer window, and a double sealing belt is formed between the door and the door frame through the pressing mechanism. As an item transfer equipment, the pass box is mainly used for the transfer of small items between the low pollution probability area and the high pollution probability area. The double door adopts an interlock device to avoid direct communication between different areas; At the same time, the VHP disinfection interface is set up, which can be used to connect the VHP disinfection equipment to disinfect the items in the pass box, which can effectively reduce the contamination in the transfer process.

Performance index

1. Mechanical devices and rubber components temperature environment adaptability: -40℃~+50℃;

2. Structural pressure resistance: ≥2500Pa;

3. Air tightness: under the pressure of -500Pa, the inner cavity of the transfer window is kept airtight, and the leakage rate is less than <0.5%vol/h;

4. Self-cleaning ability: After opening the self-circulating fan, the cleanliness in the transfer window can reach the A-level purification requirements;

5. Disinfection method: VHP disinfection can be carried out on the internal space of the pass box and internal items, and the disinfection effect can be verified;

6. Corrosion resistance: made of high-quality stainless steel, resistant to disinfectants, cleaning agents and acid, alkali and other chemical reagents.

Product characteristics

1. The electrical interlock device box is fully sealed, can be repaired online and ensures that both side doors cannot be opened simultaneously;

2. The use of airtight design, can meet the sealing requirements of the airtight laboratory.

3. The casing and connectors are made by sturdy, durable and strong resistance stainless steel 304.

4. The airtight doors are equipped with high-quality silicone seal rings on both sides for preventing gas leakage.

5. The pass box is equipped with a disinfection injection port and a disinfection verification port.

6. The double-layer tempered glass window allowing for easy monitoring of the transfer process inside the box.

7. The curved door design enhances aesthetics and reduces areas that are difficult to clean.

8. Optional features include an illumination light and ultraviolet light, which can be set to specific sterilization and disinfection times.
