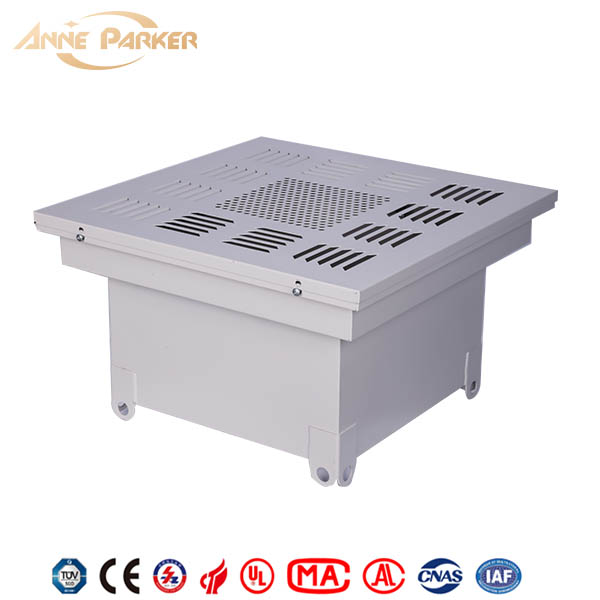

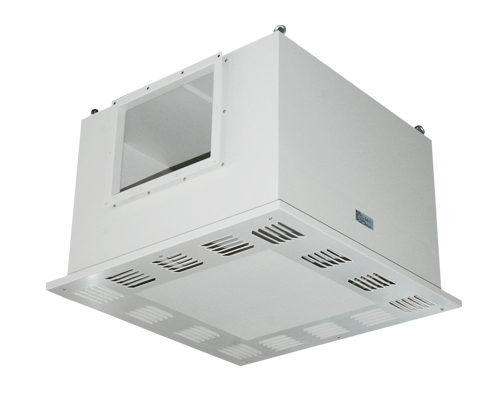

Cleanroom HEPA Air Supply Unit HEPA box

Product Description

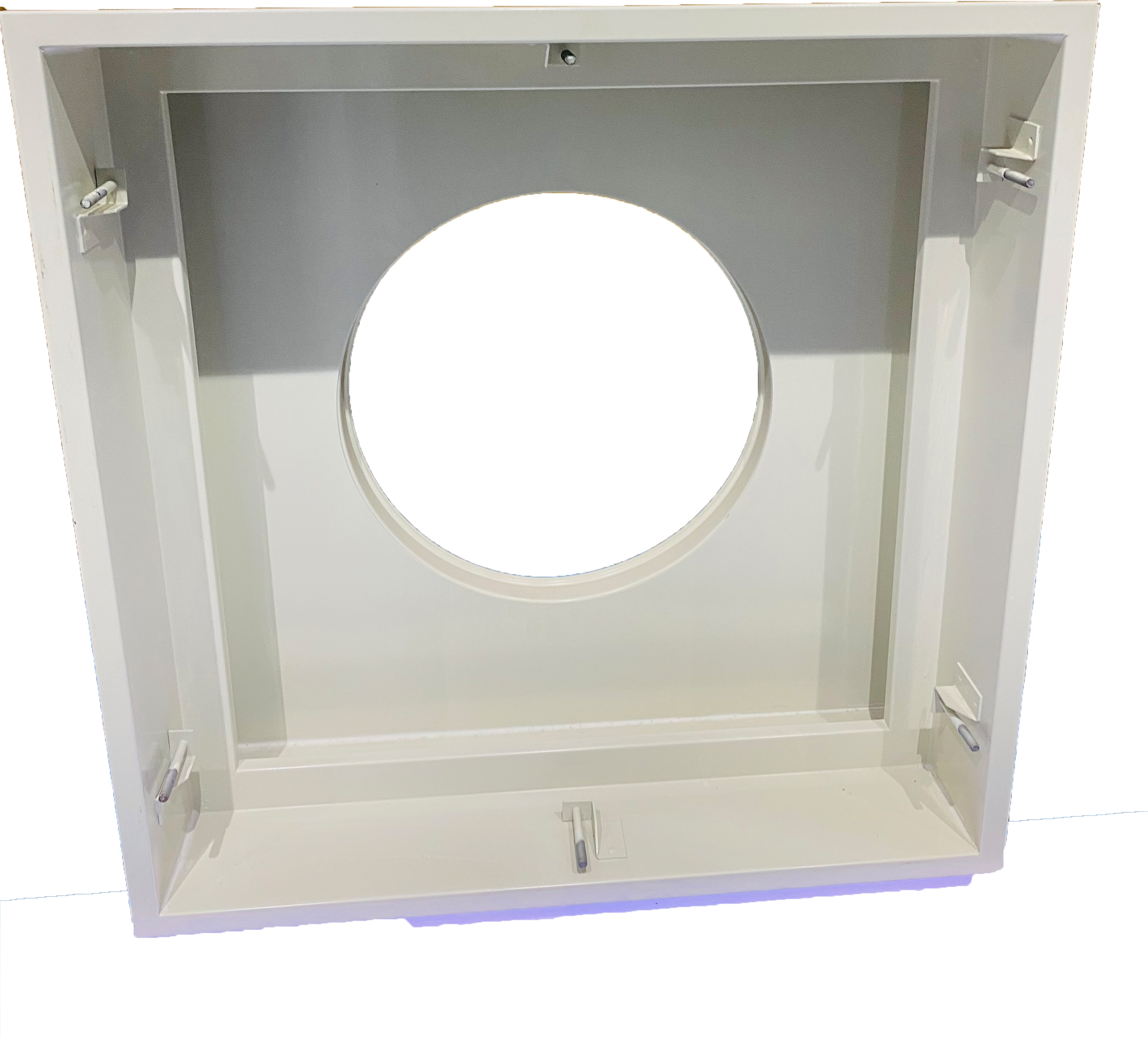

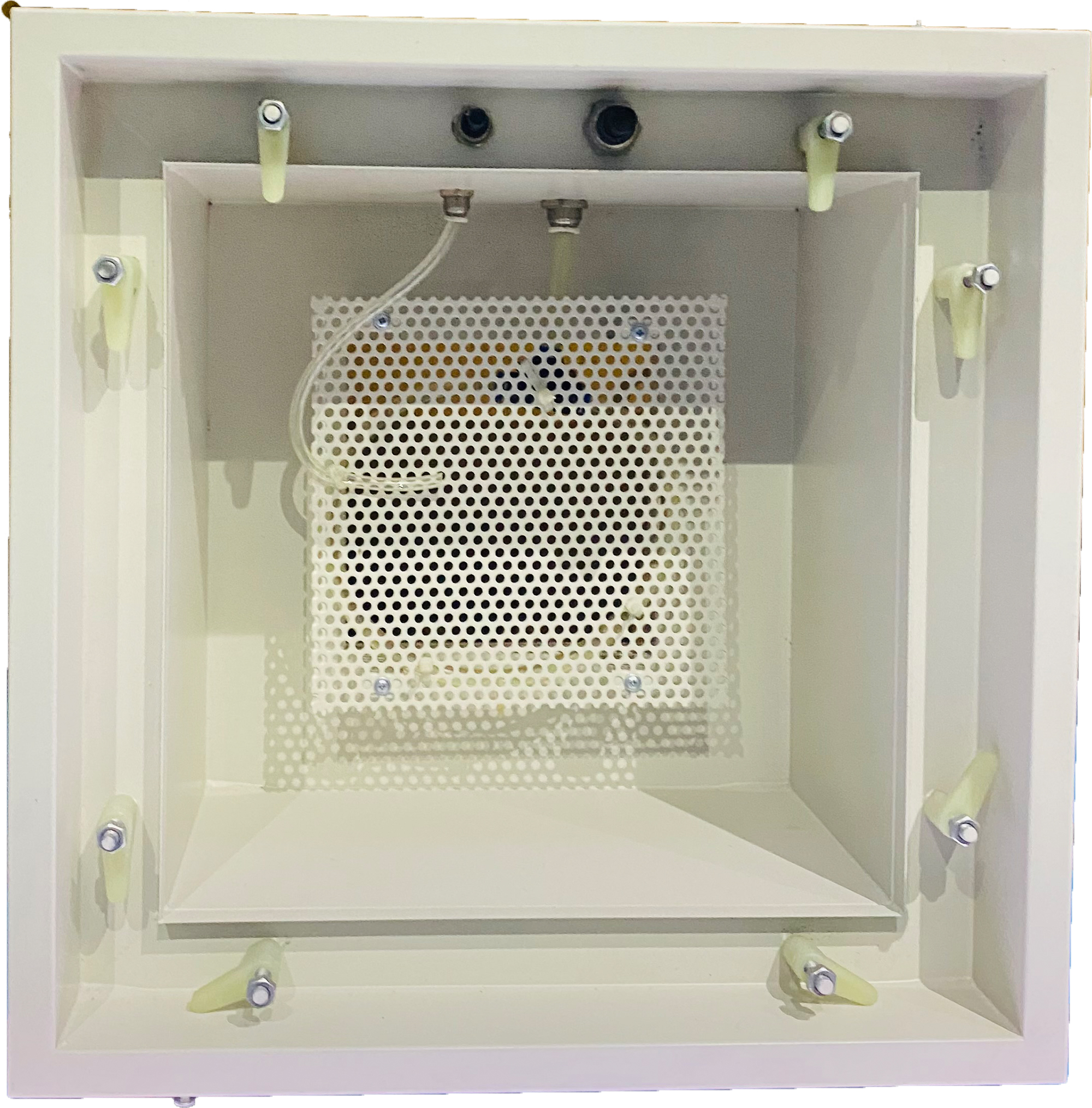

• The high-efficiency air outlet structure includes static pressure box, diffuser plate, air inlet flange, high-efficiency air filter, pressing device and bolts.

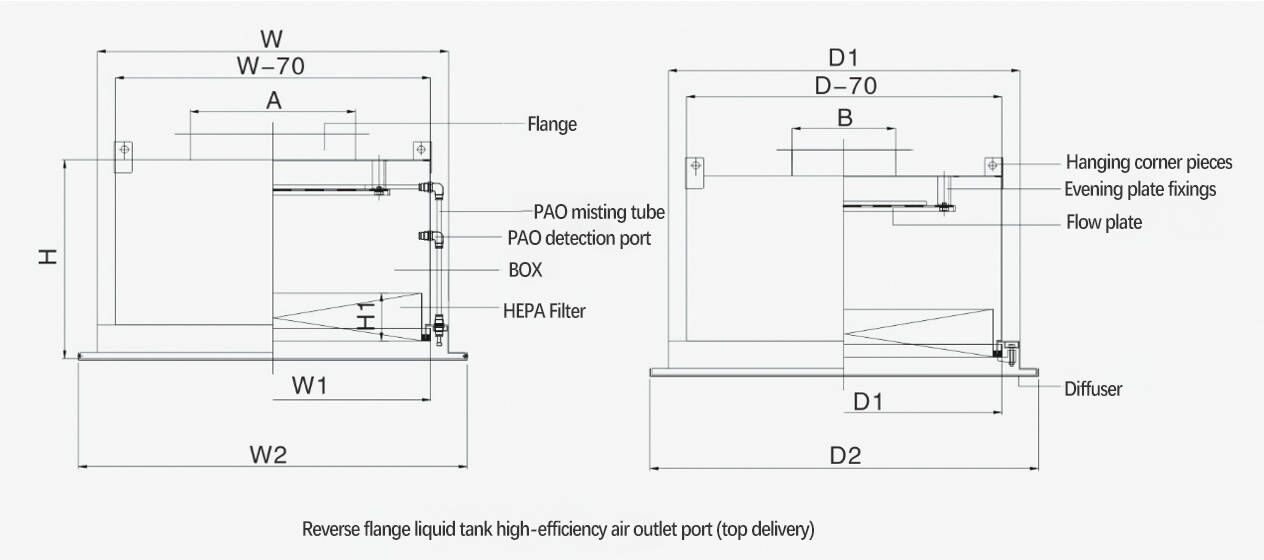

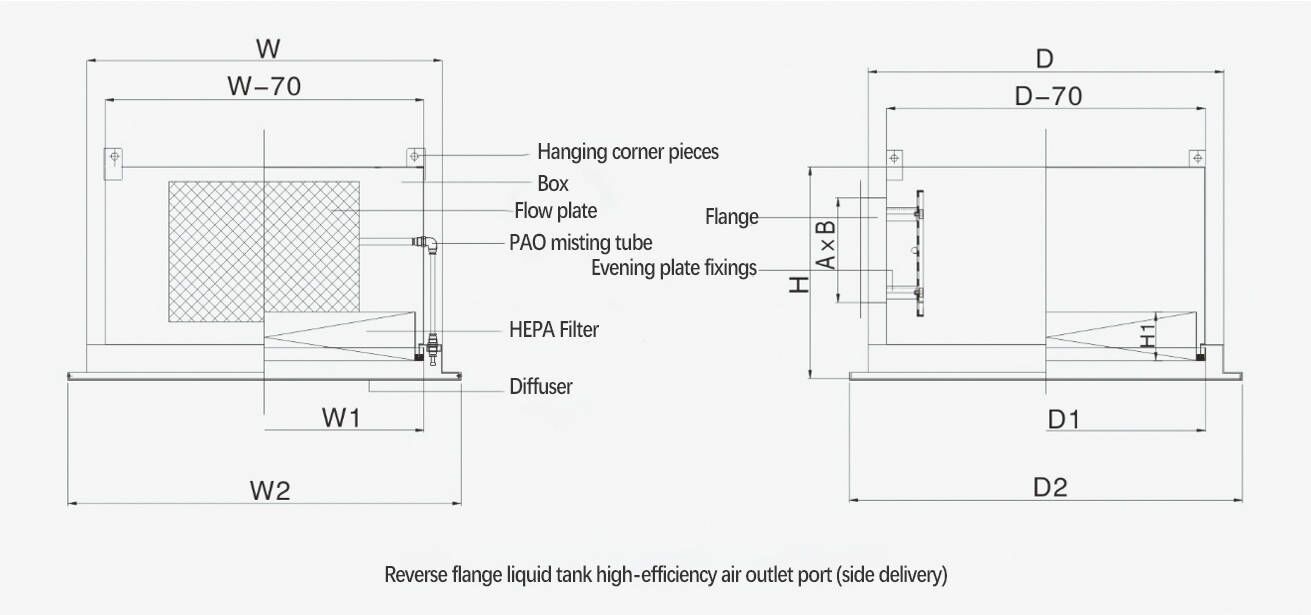

• According to the structure, the high-efficiency air outlet can be divided into top delivery and side delivery.
• There are two types of matching filters: ordinary filters with partitions and filters without partitions.
• Among them, filters without partitions are divided into two types: dry filters and liquid tank filters. The high-efficiency air outlet with dry filters is mainly used. In the electronics industry, the high-efficiency air outlet of the dosing tank filter is mainly used in the pharmaceutical industry.

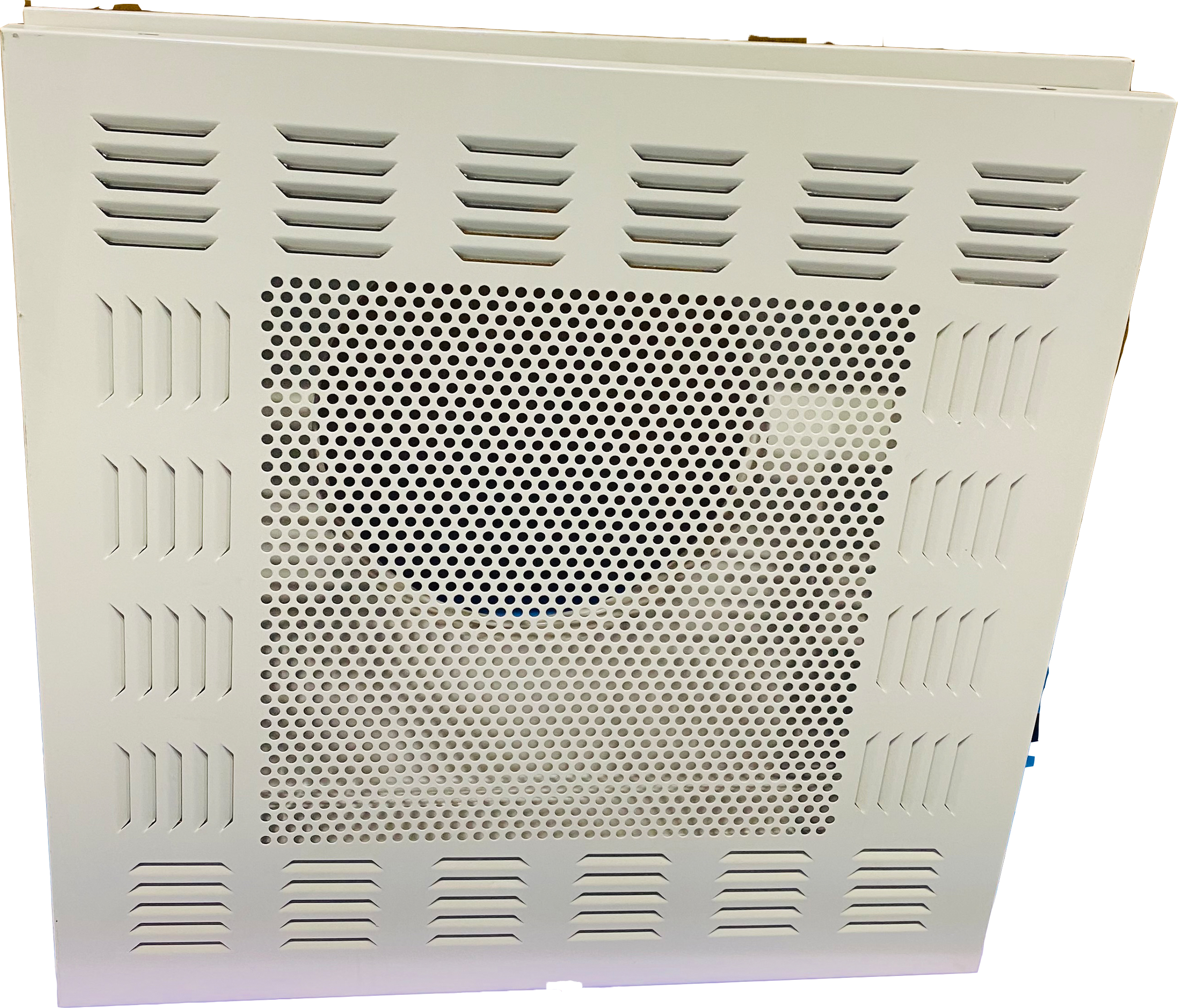

• The air outlet surface diffuser is divided into three types: round hole type, louver type and cyclone type.

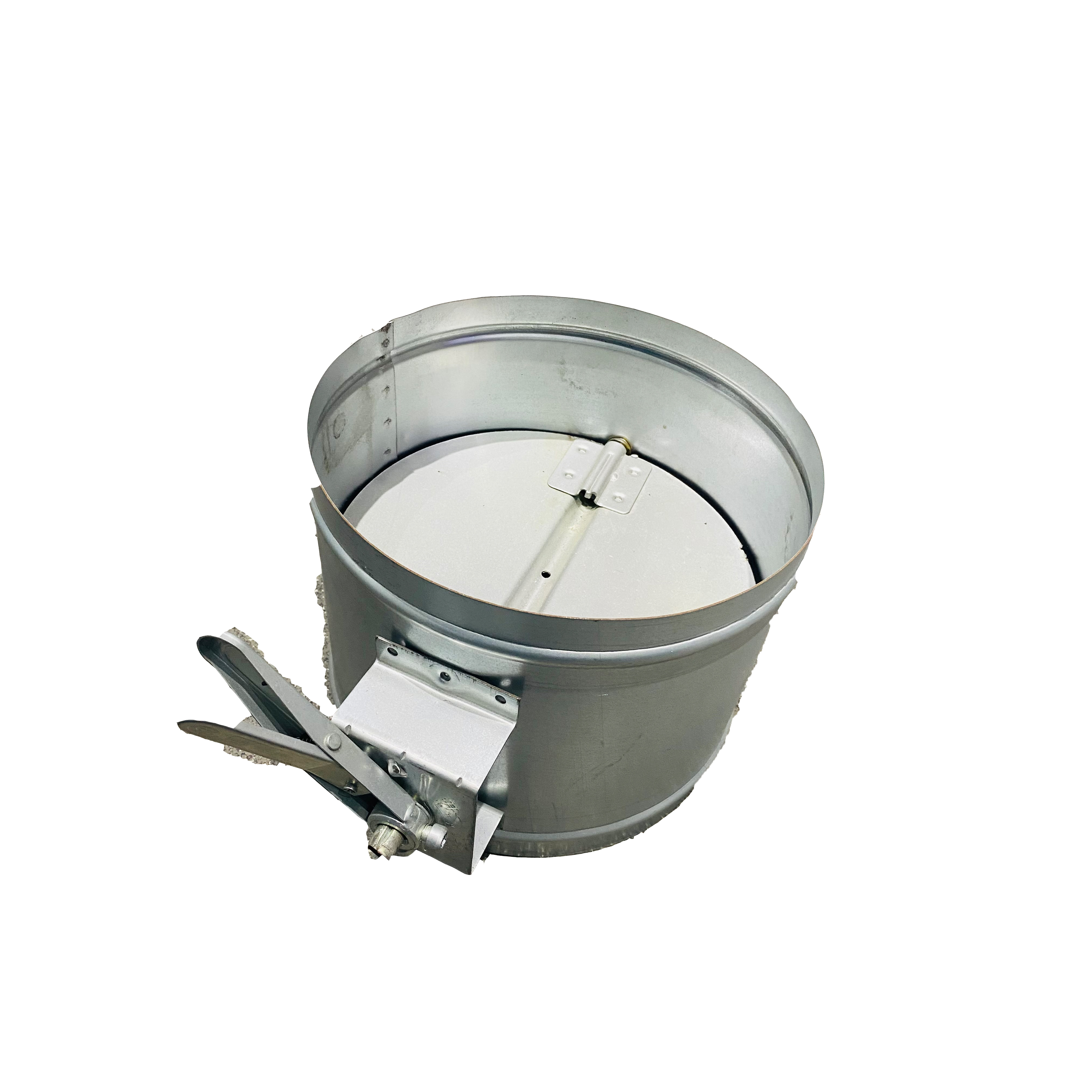

The air inlet is divided into two types: with air valve and without air valve

Product Details

Features of tank high-efficiency filter

1. Mainly used to filter air suspended particles above 0.3um, as the end filter of the filter system;

2. The filter material is made of ultra-fine glass fiber filter paper, separated by hot melt adhesive;

3. The hot-melt insulating adhesive without partitions can ensure the same pleat spacing, ensure the best airflow through, achieve high dust holding capacity, and make full use of the filter material of the entire depth of the filter;

4. Polyurethane sealant is used around the filter to ensure the tightness of the entire filter;

5. Install a plastic-sprayed protective net on the inlet and outlet surfaces of the filter to protect the filter paper from damage;

6. The air outlet surface of the filter is equipped with a flange, and the inner side of the flange is filled with sealant, and the sealing performance will be greatly enhanced;

7. The sealant in the tank is a non-Newtonian liquid, which has the advantages of non-volatile, non-climbing oil, acid and alkali resistance, non-toxic and tasteless;

8. Each filter is passed the PAO test and then leaves the factory.

PAYMENT

• Standard payment terms: pay 30% deposit in advance, 70% balance before shipment or L/C.
• More payment terms could be provided (T/T, Western Union, MoneyGram)

Certifications

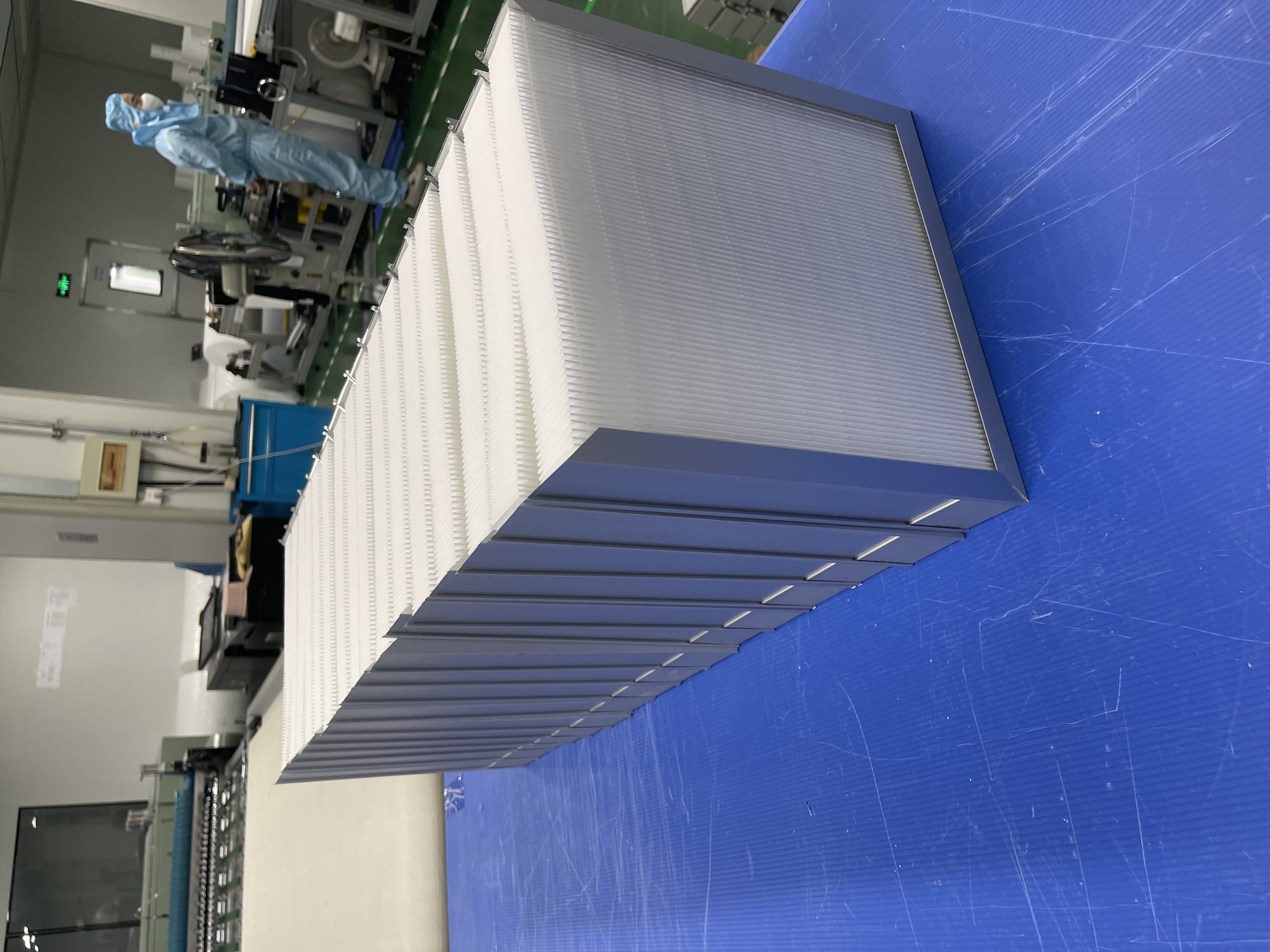

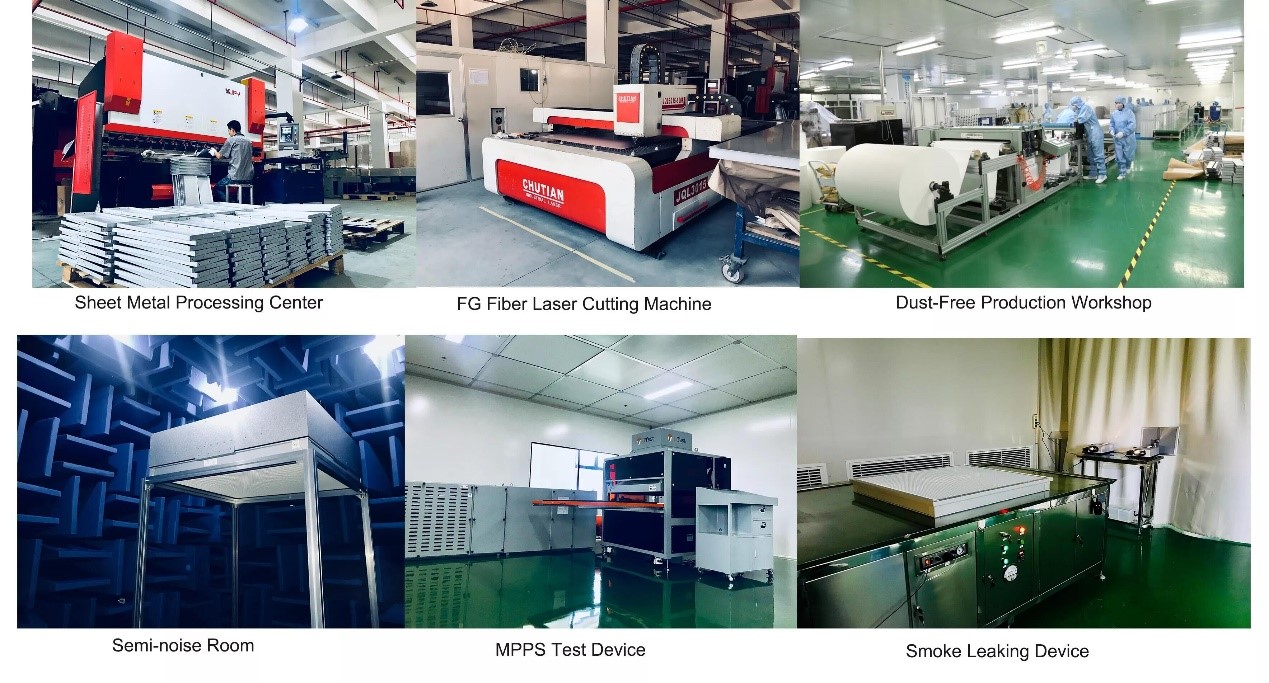

Production Line
