Laminar Flow Hood Localized Clean Air Protection
Localized Clean Air Protection for Critical Processes
Our Laminar Flow Hood provides a controlled clean air environment for critical production areas, helping reduce airborne particle contamination around exposed products and equipment. Designed for flexible integration into existing production lines, it is suitable for pharmaceutical vial filling, aseptic processing, and other applications requiring localized cleanliness. Customized dimensions and configurations are available to meet different process requirements.
OEM SOLUTIONS FOR FILLING EQUIPMENT MANUFACTURERS
Laminar Airflow for Vial Filling Machines
Customized Grade A laminar airflow units for vial filling, stoppering, and capping machines. Designed for seamless integration with pharmaceutical filling equipment.
Send Equipment Drawing Email Us
PRODUCT OVERVIEW

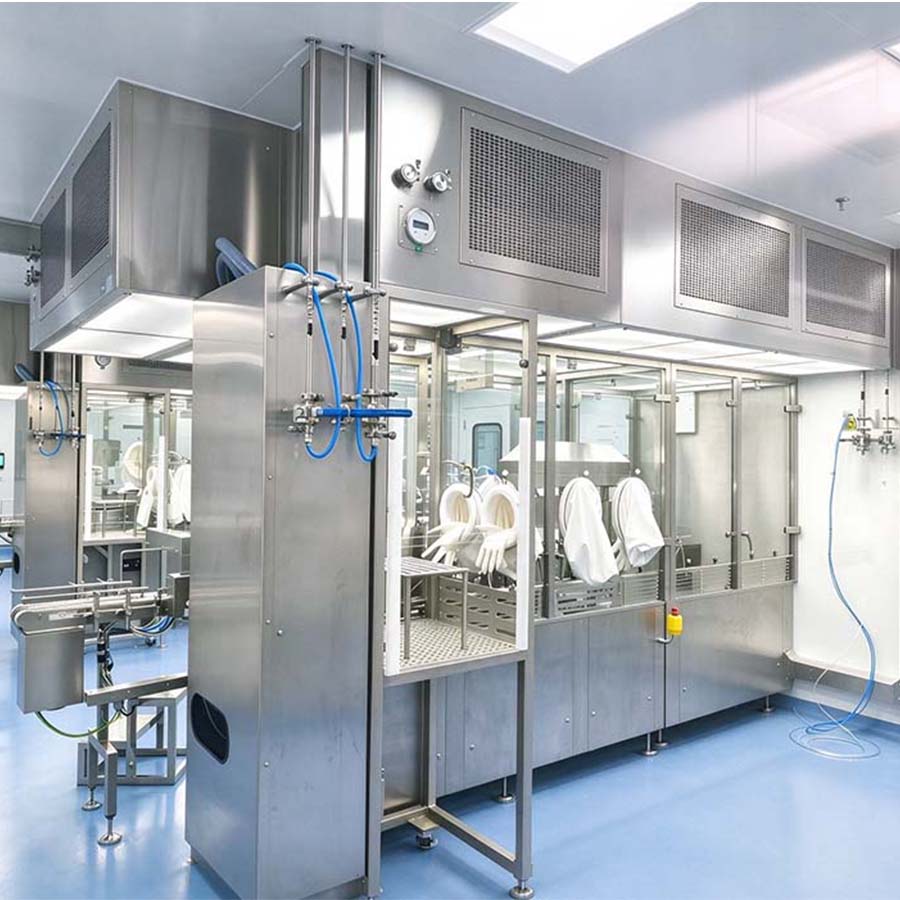

Grade A Laminar Airflow for Filling Equipment

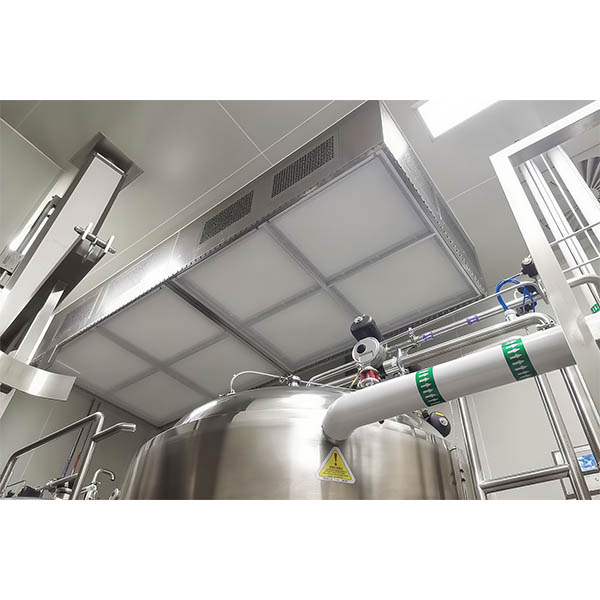

Our laminar airflow units provide localized unidirectional airflow protection for critical areas of pharmaceutical vial filling lines.
The unit can be customized according to the filling machine structure, critical working area and equipment layout.
- ✓ Vertical unidirectional airflow
- ✓ Grade A / ISO Class 5 clean air protection
- ✓ HEPA filtration
- ✓ SUS304 stainless steel construction
- ✓ Custom dimensions and configuration
- ✓ PAO / DOP testing ports available
APPLICATION

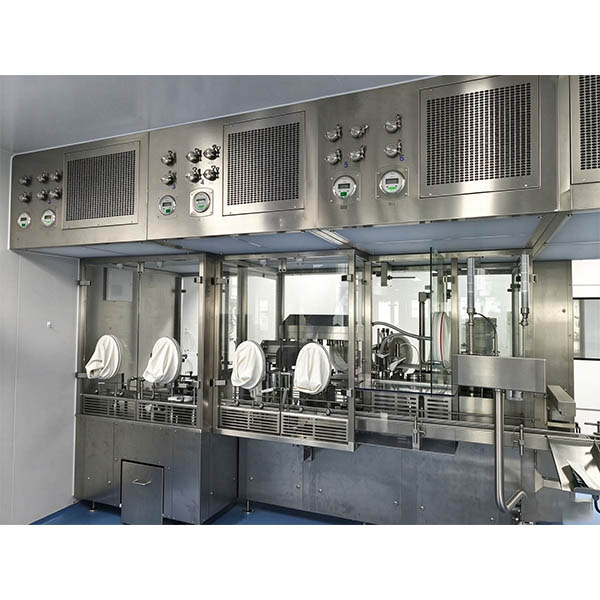

Application in Vial Filling Lines
Vial Filling
Localized clean air protection above the critical vial filling area.
Stoppering
Clean air protection around stopper handling and transfer areas.
Capping
Designed for integration with critical areas of aseptic processing equipment.
OEM INTEGRATION
Designed for Your Filling Equipment
We can develop the laminar airflow unit according to your filling machine drawings, critical working area and integration requirements.
Custom Dimensions
Adapted to your equipment and working area.
Airflow Coverage
Configured according to your process layout.
Control Integration
Compatible with control and monitoring systems.
Testing
PAO / DOP testing ports available.
TECHNICAL DATA
Technical Specifications
Standard configurations are available, while custom dimensions and airflow configurations can be developed according to your filling equipment.
| Model | External Dimension W×D×H (mm) |
Rated Air Volume (m³/h) |
Air Velocity (m/s) |
Cleanliness |
|---|---|---|---|---|
| AN-AJCLZ1100 | 800×600×600 | 600–800 | 0.45 ± 20% | Grade A |
| AN-AJCLZ1200 | 1200×600×600 | 800–1000 | 0.45 ± 20% | Grade A |
| AN-AJCLZ1201 | 1200×900×600 | 1500–1800 | 0.45 ± 20% | Grade A |
| AN-AJCLZ1500 | 1500×1000×600 | 2400–2600 | 0.45 ± 20% | Grade A |
| AN-AJCLZ2000 | 2000×1000×600 | 3200–3500 | 0.45 ± 20% | Grade A |
CUSTOM OEM SOLUTION
Built Around Your Equipment
For equipment manufacturers and pharmaceutical engineering companies, the laminar airflow unit can be configured according to the actual machine structure and critical process area.
- ✓ Equipment dimensions
- ✓ Airflow coverage
- ✓ Filter configuration
- ✓ Mechanical integration
- ✓ Control and monitoring
- ✓ Lighting configuration
Looking for a Laminar Airflow Partner?
Send us your filling machine drawing or basic dimensions. We can evaluate the critical working area and recommend a suitable laminar airflow configuration.
