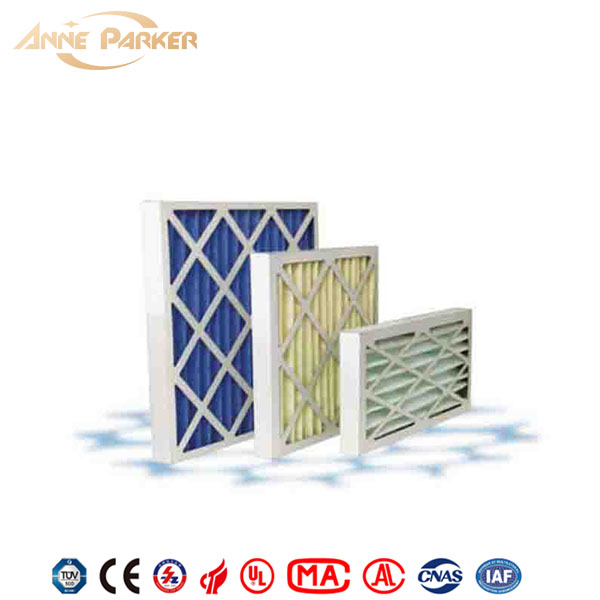

Dust collector 4 inch pleated Disposable Panel air filter

Choosing the right air filters for your air handling unit (AHU) will help keep your operation cost-effective, ensure food safety, keep the air your workers breathe clean and contaminant-free, save you money and prolong the lifespan of your HVAC system. We guide you through the most important considerations when choosing air filters.

Feature:

1. Self-supporting material

2. No metal, thus fully incinerable

3. Low pressure drop media

Technical data:

1. G3~G4 EN779; MERV5~8 ASHRAE
2. Available in 23mm, 44 and 95mm depth
3. Average arrestance: 92%(ASHRAE 52.2-1992)
4. DIN 53438 Flammability: F1
5. UL 900 Standard: Class 2
6. Max air flow rate: 125% of nominal air flow
7. Final pressure drop: 2-3 times initial pressure drop
8. Thermal Stability: Up to 70ºC
9. Moisture resistance: 100% RH

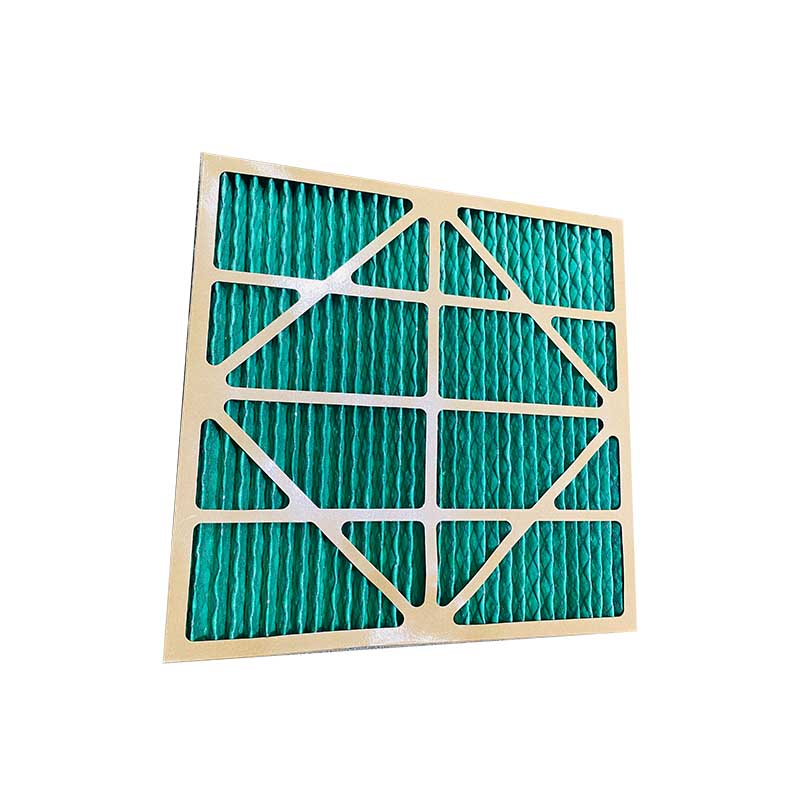

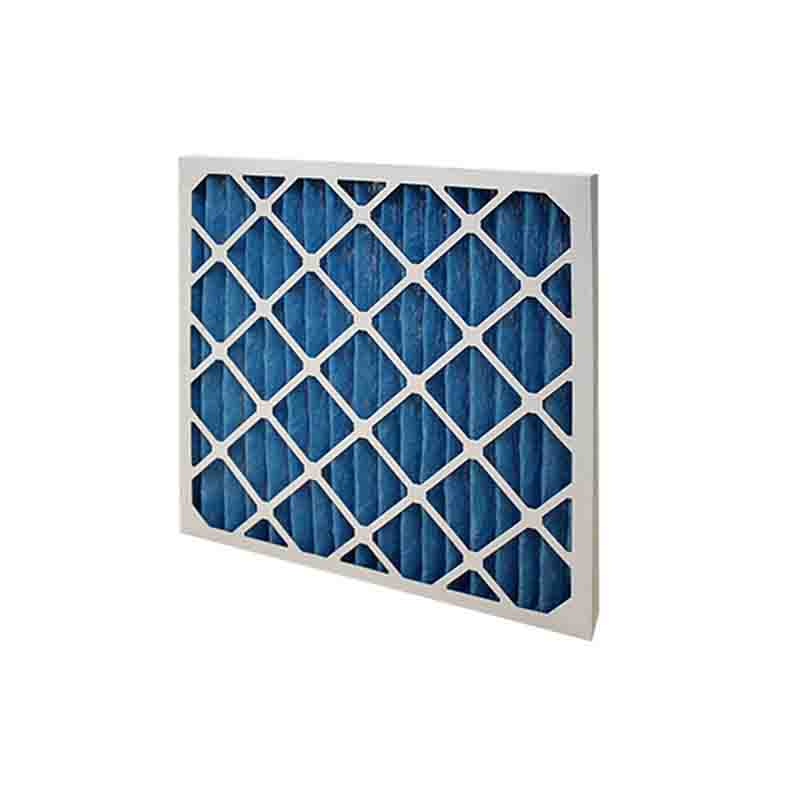

The Disposable Panel Filters core consists of a reinforced non-woven media which is bonded to an expanded metal support grid which is then Pleated, increasing the filtration surface area by up to 3 times that of the face area. This means that the Pleated Panel Filter will handle significantly higher air volumes with low-pressure loss, thus saving on energy and running costs.

Also available: Filter media achieving grades F5 – F8, Panel Filter sizes can be manufactured to any specific requirements. For more details on request please contact us.
