PRODUCT
Laminar HEPA good sealing filter for seal
Provides a collection efficiency of 99.999% or higher
(@0.12 im partical counting method).
High efficiency, Ultra low pressure, low operation cost.
Used for ULSI manufacturing line, semiconductors
manufacturing plants and Ultra clean laboratory.

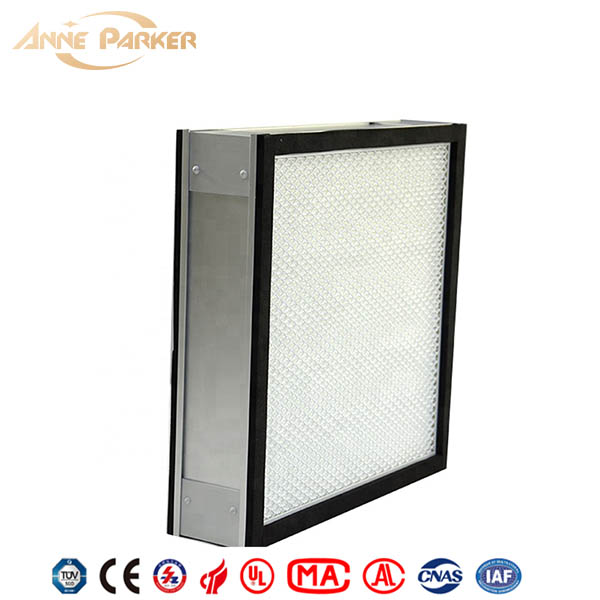

Laminar HEPA good sealing filter for seal
Applications: Applicable to clean room and other area with stringent clean air requirements
Applicable conditions: Working temperature(ºC) ≤ 70(158ºF)
• Ulpa filter high efficiency filter without partition
•Ulpa filter Features
1. Mini-pleat design, low resistance, operational cost saving
2. Wide application,space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.9995%(MPPS), 99.99995%(MPPS)
5. Mini pleat of fiberglass media with lowest resistance
6. Individually tested for certificated leak proof
7. Gel seal design
8. Hotmelt separators
9. Lightweight and compact
10. Unique construction
11. Energy saving design
•Product Details

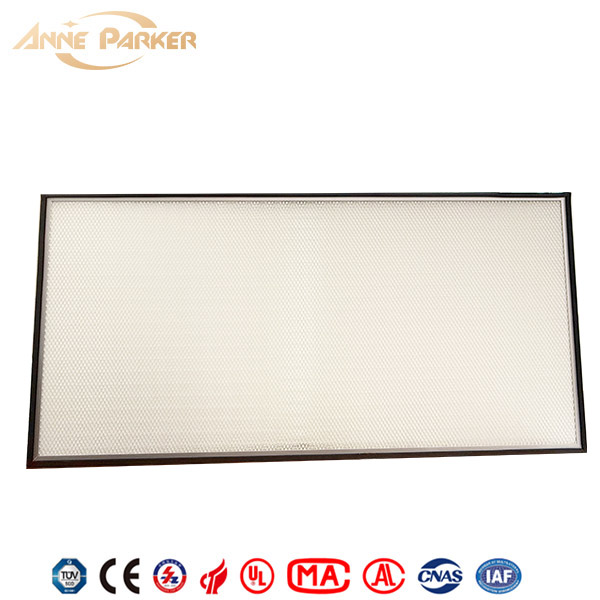

Type: Mini-pleat HEPA filter
Gasket: CR,EVA,EPDM,PU
Frame: Extruded aluminum.
Face guard: Baking finish
Separator: Hot-melt beads.
Filter class(EN1822):99.9995%,99.99995%
Media: H&V Glass fiber, PTFE Recommended final pressure drop.: 500 Pa
Temperature / Humidity: 70°C / 100% RH
