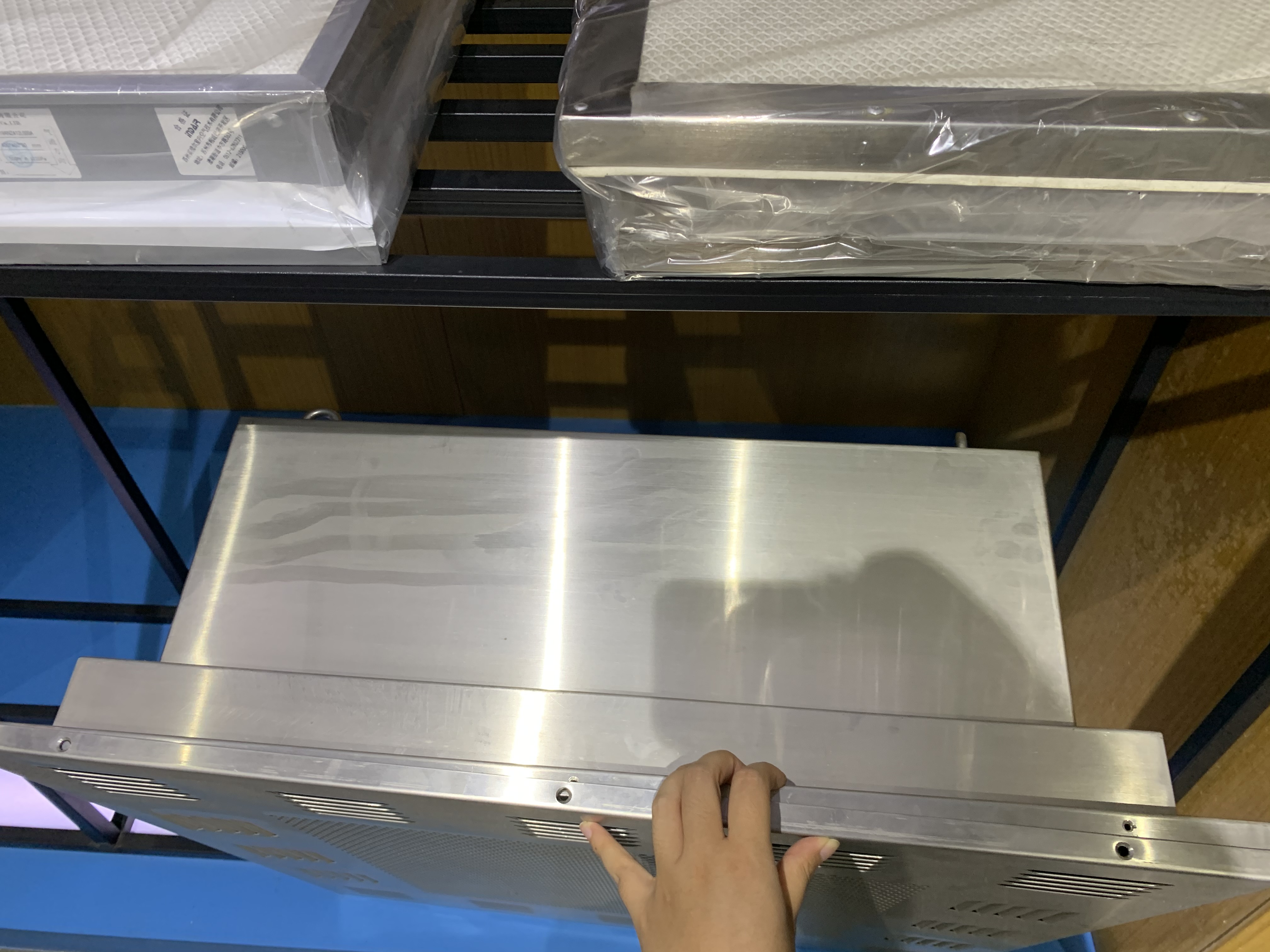

HEPA Box Air Supply HEPA Filter Box for Pharmaceutical Factory

Product Description

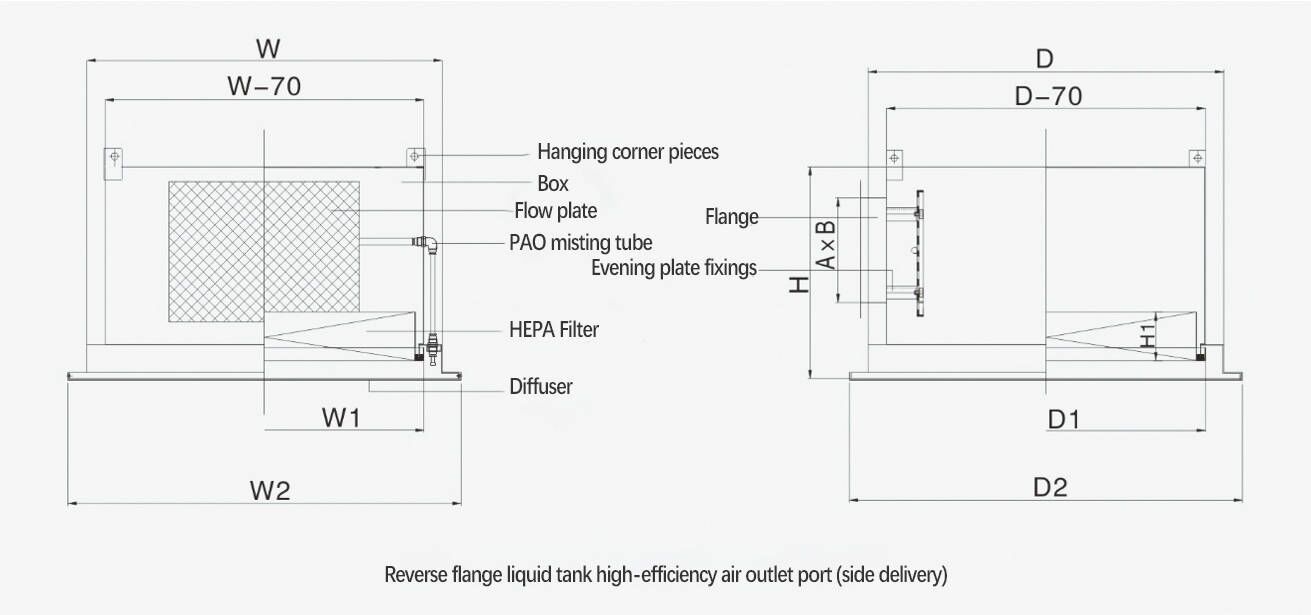

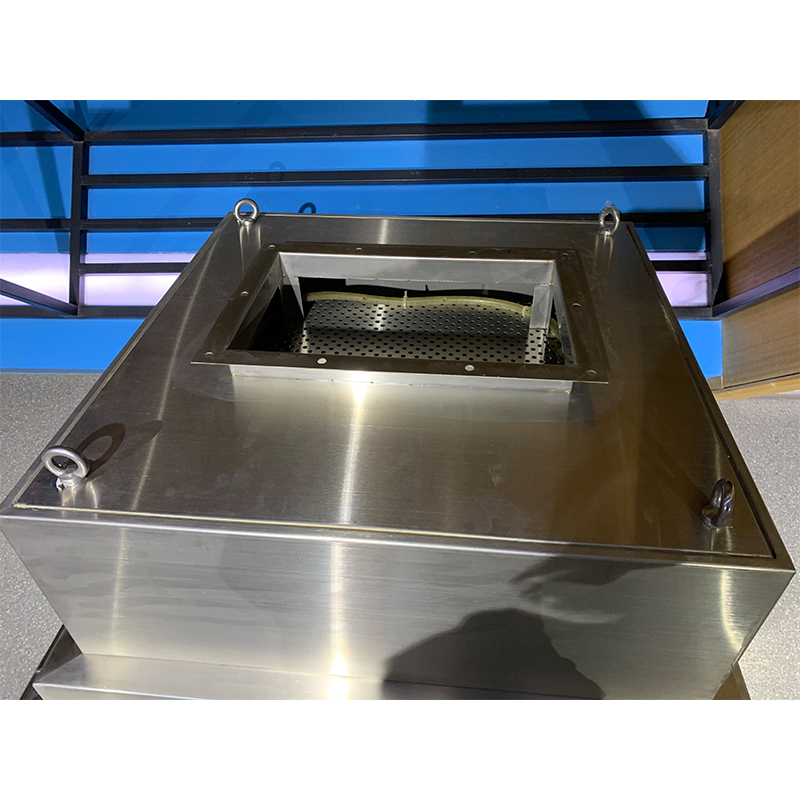

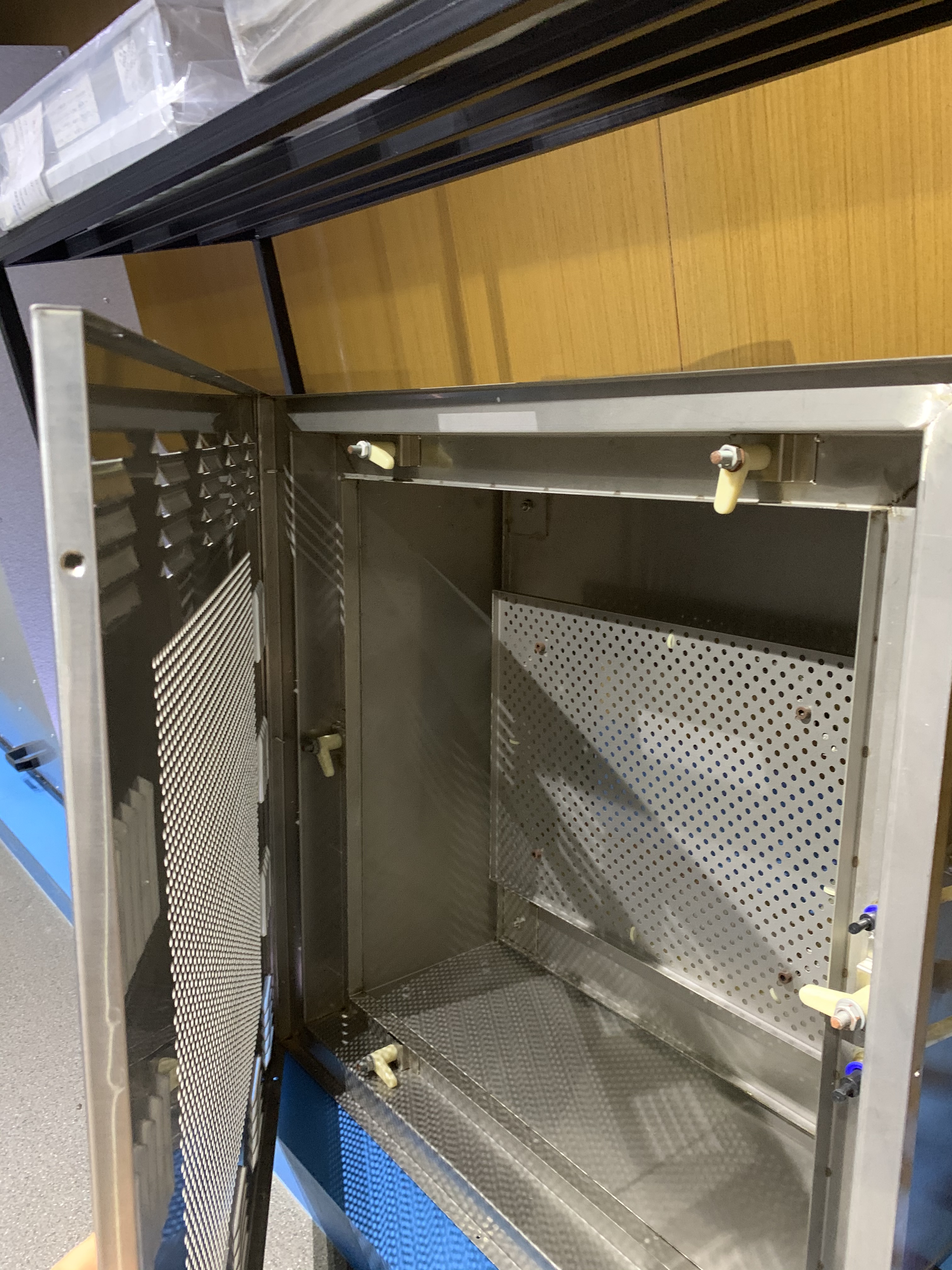

• The high-efficiency air outlet structure includes static pressure box, diffuser plate, air inlet flange, high-efficiency air filter, pressing device and bolts.
• According to the structure, the high-efficiency air outlet can be divided into top delivery and side delivery.

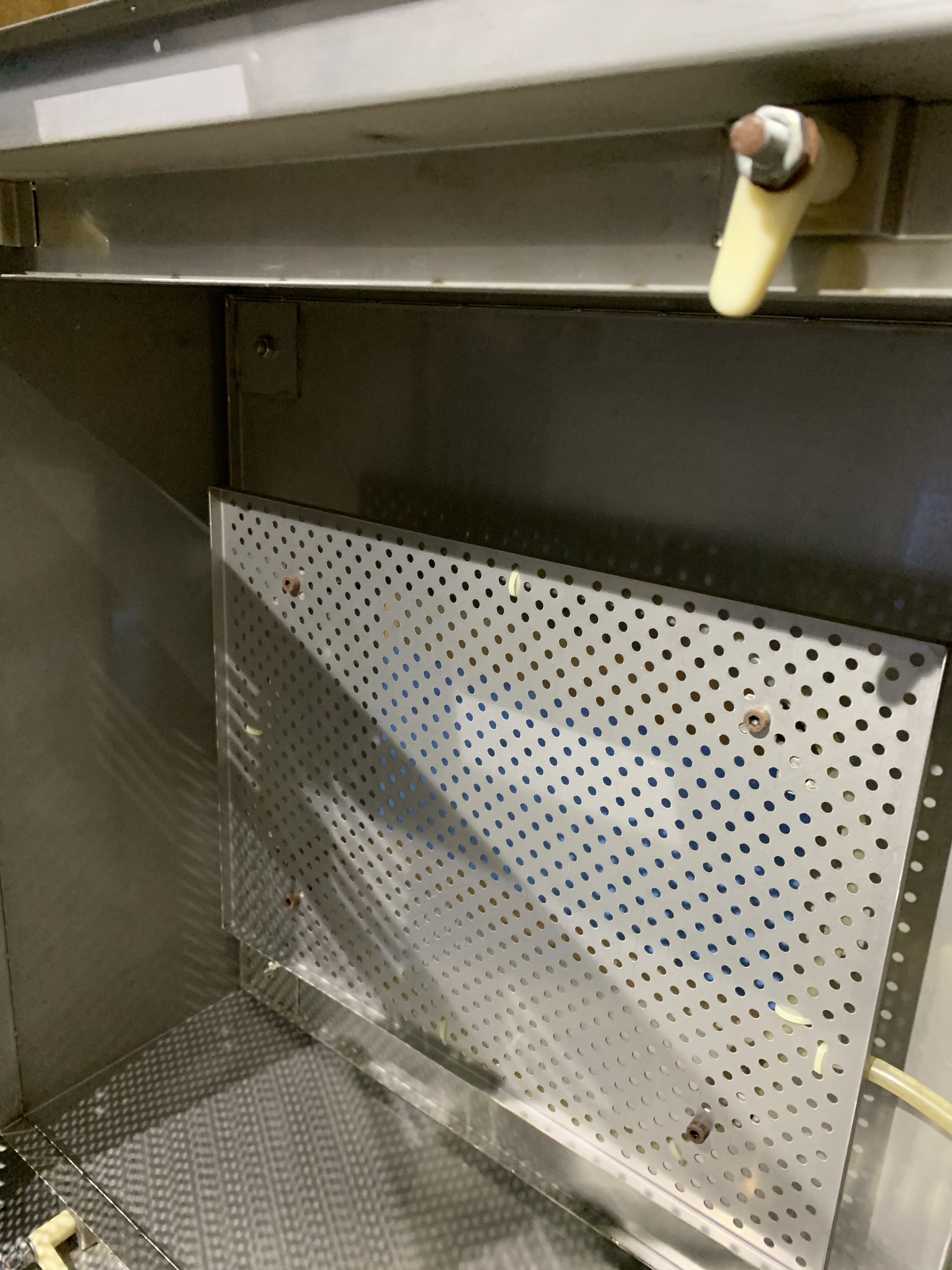

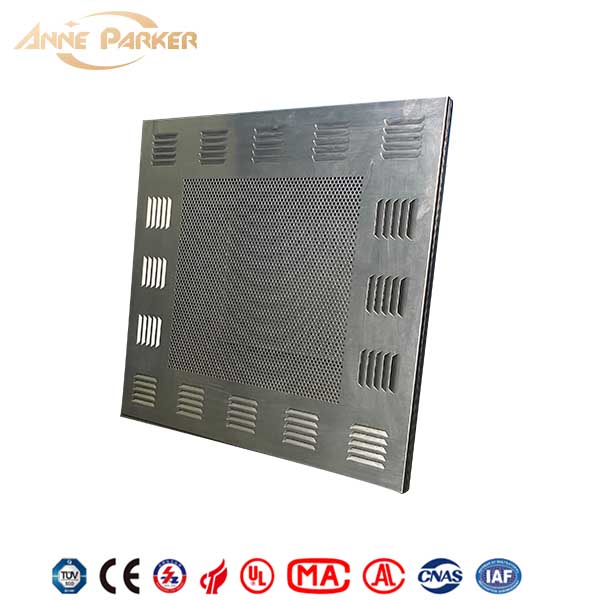

• The air outlet surface diffuser is divided into three types: round hole type, louver type and cyclone type.

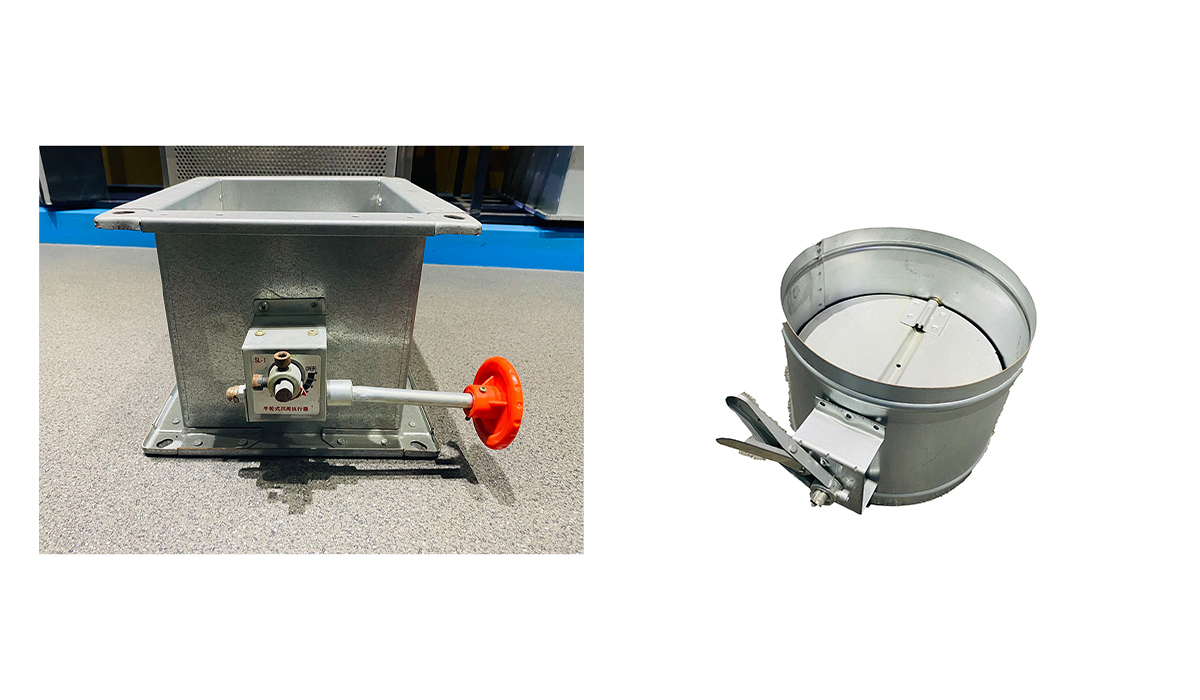

The air inlet is divided into two types: with air valve and without air valve

• There are two types of matching filters: ordinary filters with partitions and filters without partitions.
• Among them, filters without partitions are divided into two types: dry filters and liquid tank filters. The high-efficiency air outlet with dry filters is mainly used. In the electronics industry, the high-efficiency air outlet of the dosing tank filter is mainly used in the pharmaceutical industry.

Product Details

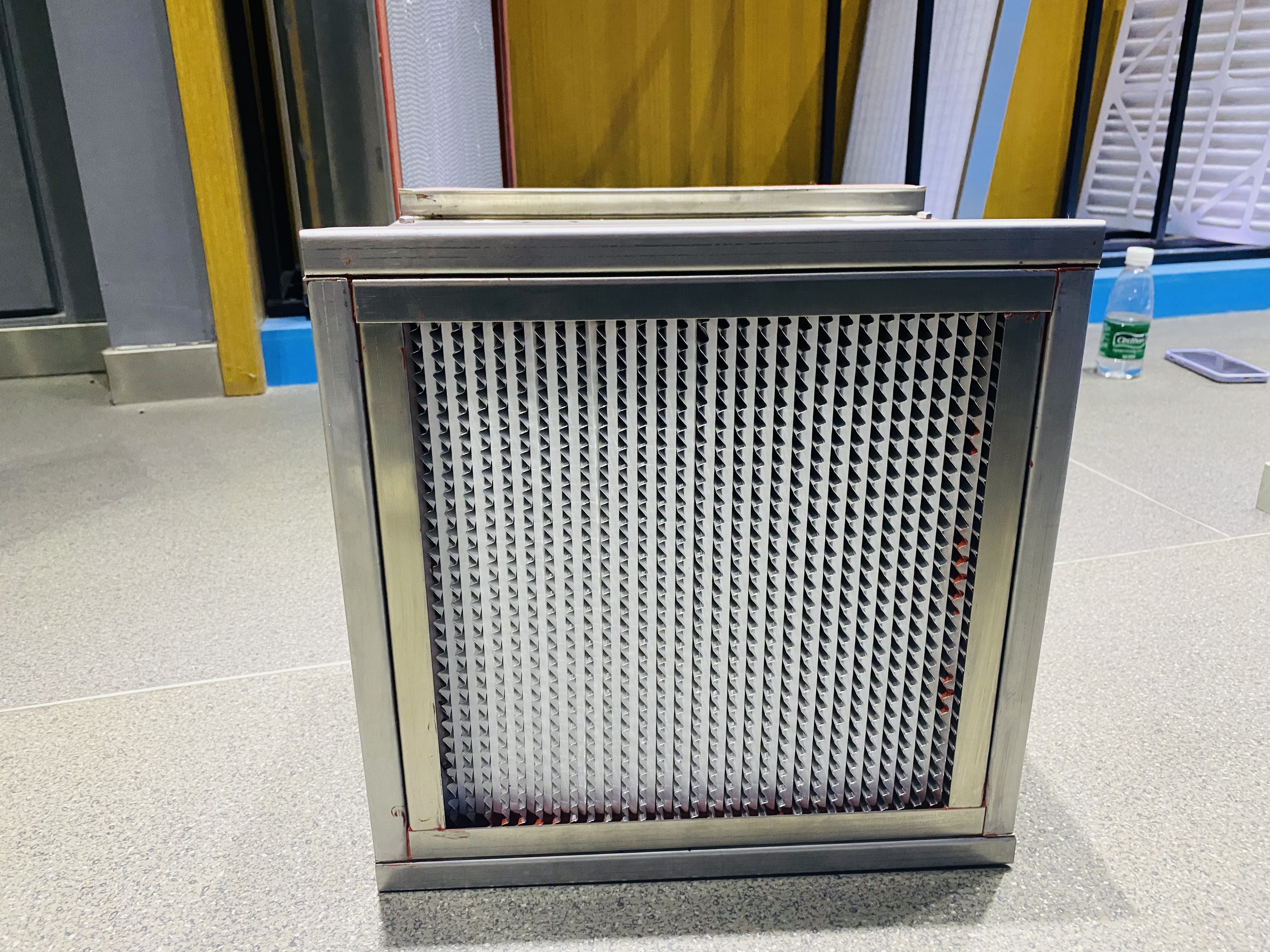

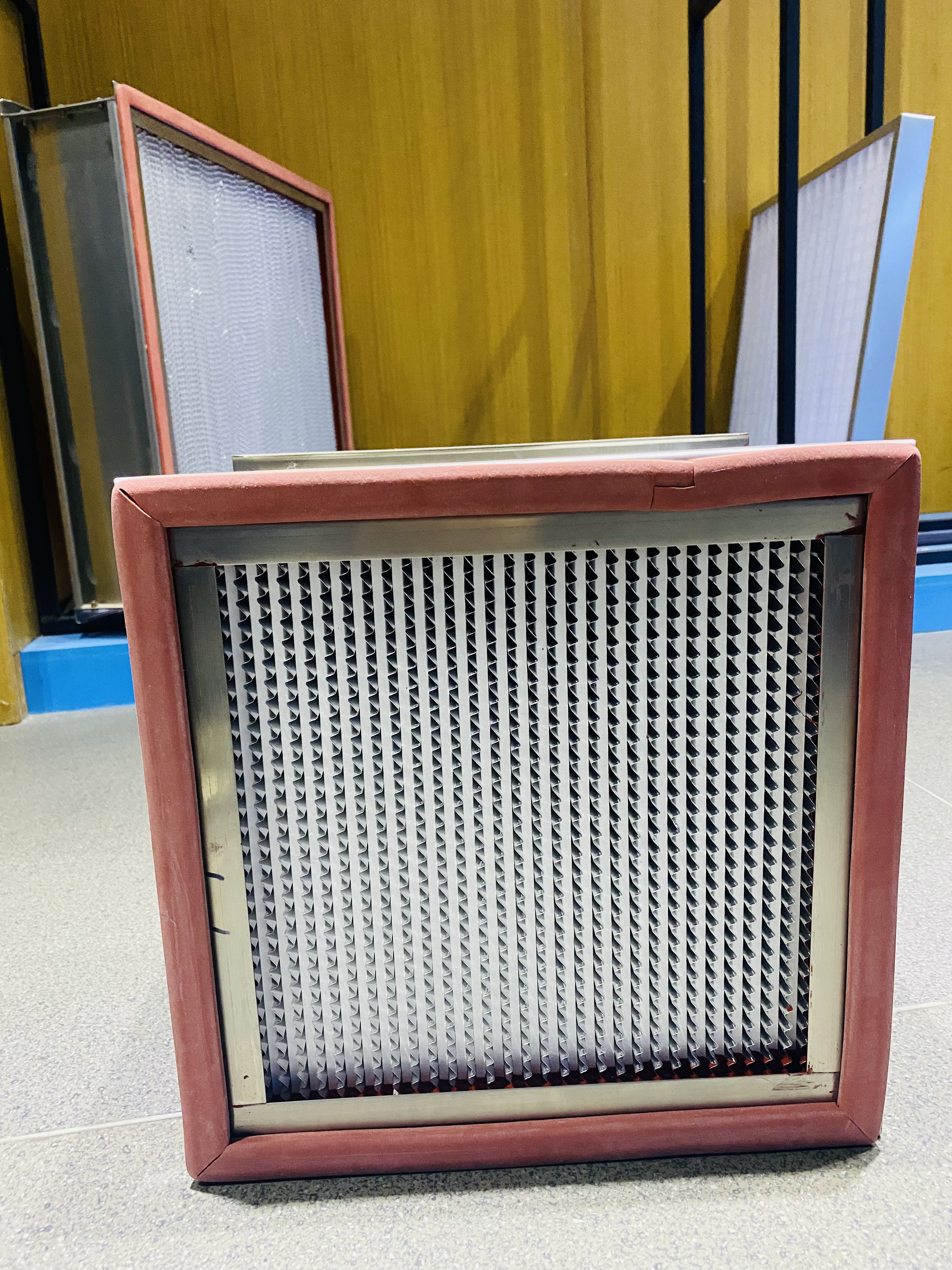

Features of tank high-efficiency filter

1. Mainly used to filter air suspended particles above 0.3um, as the end filter of the filter system.

2. The filter material is made of ultra-fine glass fiber filter paper, separated by hot melt adhesive.

3. The hot melt insulating adhesive without partitions can ensure the same pleat spacing, ensure the best airflow through, achieve high dust holding capacity, and make full use of the filter material of the entire depth of the filter.

4. Polyurethane sealant is used around the filter to ensure the tightness of the entire filter.

5. Install a plastic-sprayed protective net on the inlet and outlet surfaces of the filter to protect the filter paper from damage.

6. The air outlet surface of the filter is equipped with a flange, and the inner side of the flange is filled with sealant, and the sealing performance will be greatly enhanced.PAYMENT

•  Standard payment terms: pay 30% deposit in advance, 70% balance before shipment or L/C.
•  More payment terms could be provided (T/T, Western Union, MoneyGram)

SHIPPING

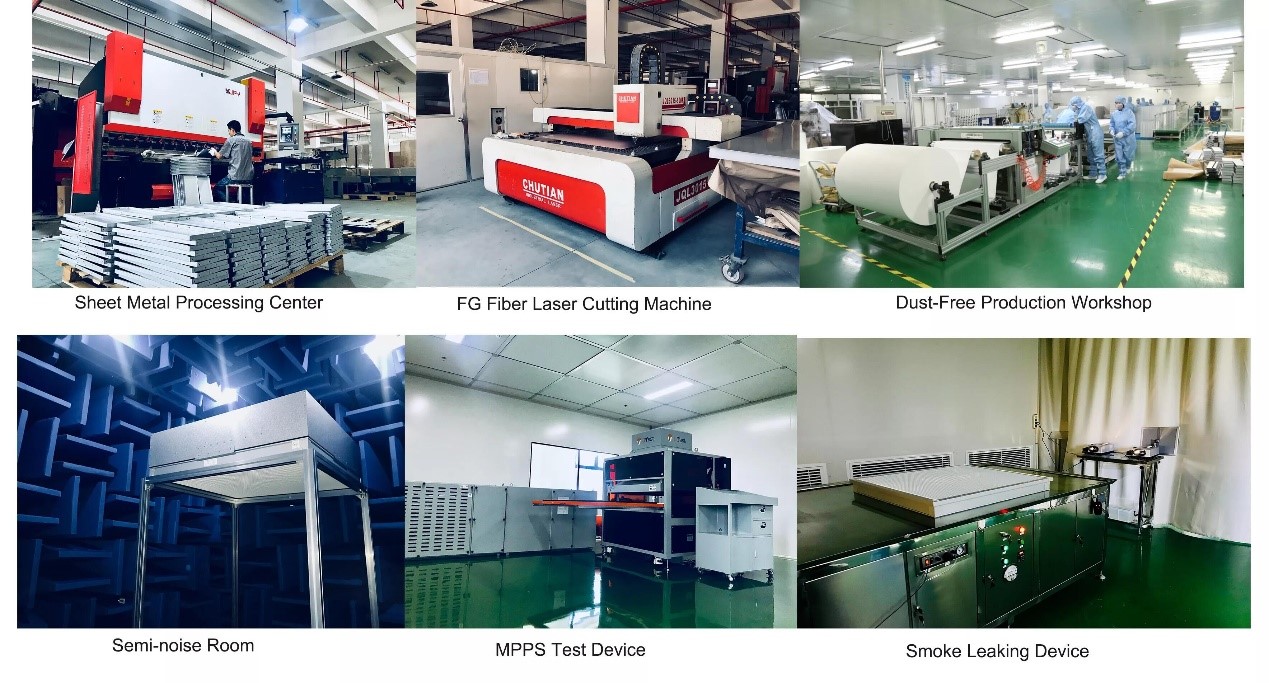

Production Line

Cooperation Partners

FAQ

Q1: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.

Q2: Can you provide customized products?

A: We can customize the right size for you according to your actual needs.

Q3: What is your main products?

A: For filter, we have HEPA and ULPA filter, V bank filter, primary/medimen effciency filter, chemical filter, etc. For clean room equipments, we have FFU, Air shower, Pass Box, clean bench, laminar air flow, etc.

Q4: How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
