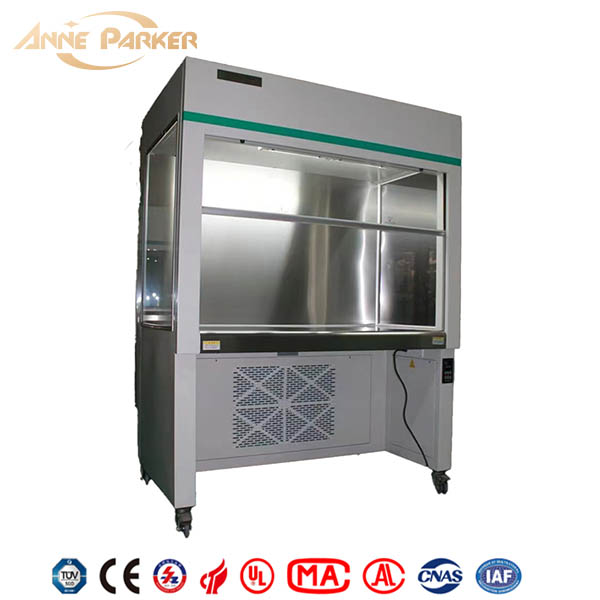

Vertical unidirectional laminar flow clean bench
Features:
◎ Cleanliness CLASS 100 conforms to ISO1466-1 international standard
◎ Adjustable air volume low noise fan system to ensure that the working area wind speed is always in an ideal state
◎ The electrostatic spraying of the box steel plate is bright and smooth, and the operating bench is 304 stainless steel.
Product Description

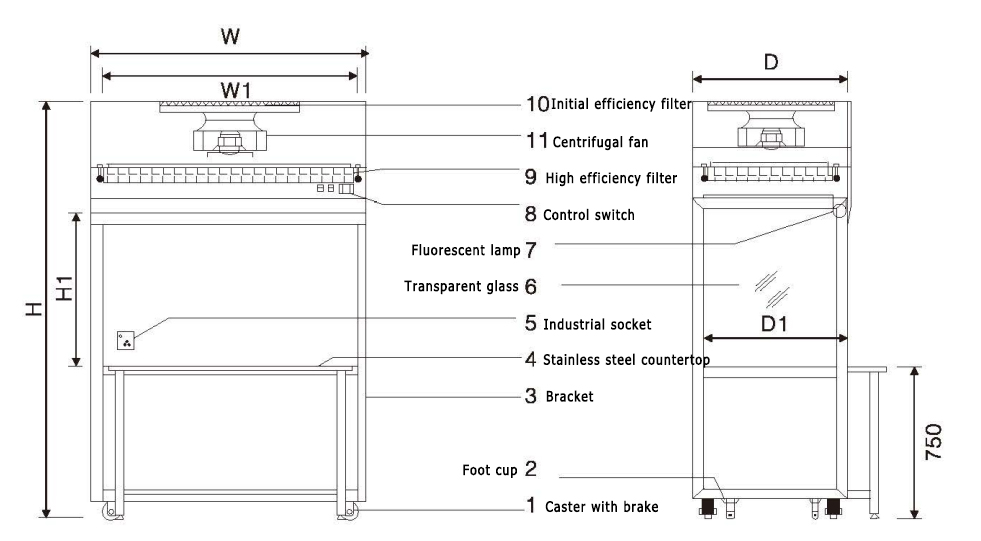

Vertical laminar flow bench form of a one-way flow of gas purifying, low noise centrifugal fan, static bins, filter modules combined into a single integrated structure. This product can be used to reduce the impact of vibration with a separate bench. It is a kind of air conditioning equipment that provides local clean environment with strong versatility, and its use has a good effect on improving process conditions, improving product quality and increasing yield.
Vertical unidirectional flow clean bench is widely used in areas requiring local purification. Laboratory, biopharmaceutical, photoelectric industry, microelectronics, hard disk manufacturing and other fields. Vertical unidirectional flow ultra-clean bench with high cleanliness can be connected to the assembly line, low noise, mobility and other advantages. The box is made of 1.2 thick high-quality cold-rolled steel plate electrostatic spraying treatment (or stainless steel), stainless steel countertop, high-quality centrifugal fan, single side and double side of a variety of models can be customized according to the actual needs of customers.
The vertical flow clean bench is an airflow protection device that provides a local clean environment. It uses fans and filters to continuously deliver vertical unidirectional airflow to the working area, so that a positive pressure difference is formed between the operating area and the outside. The reagents and samples are protected from contamination by external airflow. Widely used in water quality testing, food testing, precision instruments, instrument testing, plant tissue culture or inoculation and other industries.
Product Features
1. The cleanliness reaches class 100, and the air flow form: vertical flow and unidirectional flow.
2. The up and down sliding windows can be stopped at any position, which can prevent external turbulence from affecting the cleanliness of the working area.
3. The controller has the functions of wind speed adjustment and sterilization timing.
4. Stainless steel countertop, easy to clean.
5. Equipped with lights to ensure sufficient illumination in the working area.
6. Equipped with ultraviolet germicidal lamps to kill microorganisms and bacteria on the countertop.
Technical Parameters
|
Model number |
AN-10000 |
AN-1350 |
AN-1640 |
AN-1950 |
|
Dimensions (mm) |
W1000*L650*H1750 |
W1350*L650*H1750 |
W1640*L650*H1750 |
W1950*L650*H1750 |
|
Air shower size (mm) |
W820*L610*H600 |
W1270*L610*H600 |
W1560*L610*H600 |
W1870*L610*H600 |
|
Air volume (m/h) |
900 |
1100 |
1500 |
1800 |
|
Wind speed (m/h) |
0.45m/s±20% |
|||
|
Purification class |
Class 100 (ISO1466-1 international standard) |
|||
|
High filter efficiency |
99.99%@0.3um |
|||
|
High filter size |
880*570*69 |
1170*570*69 |
915*570*69 610*570*69 |
915*610*69 |
|
Number of high-efficiency filters |
1 |
1 |
1-1 |
2 |
|
Bench vibration half peak |
The bench and overall frame are separated without vibration effect (optional) |
|||
|
Surface material |
Sanding stainless steel |
|||
|
Noise |
＜50dB |
＜50dB |
＜50dB |
＜50dB |
|
Noise test location |
20cm in front of the bench and 1.2m above the ground |
|||
|
Power supply |
220V AC 50Hz |
|||
|
Applicable number of persons |
1 |
1-2 |
2-3 |
3-4 |
