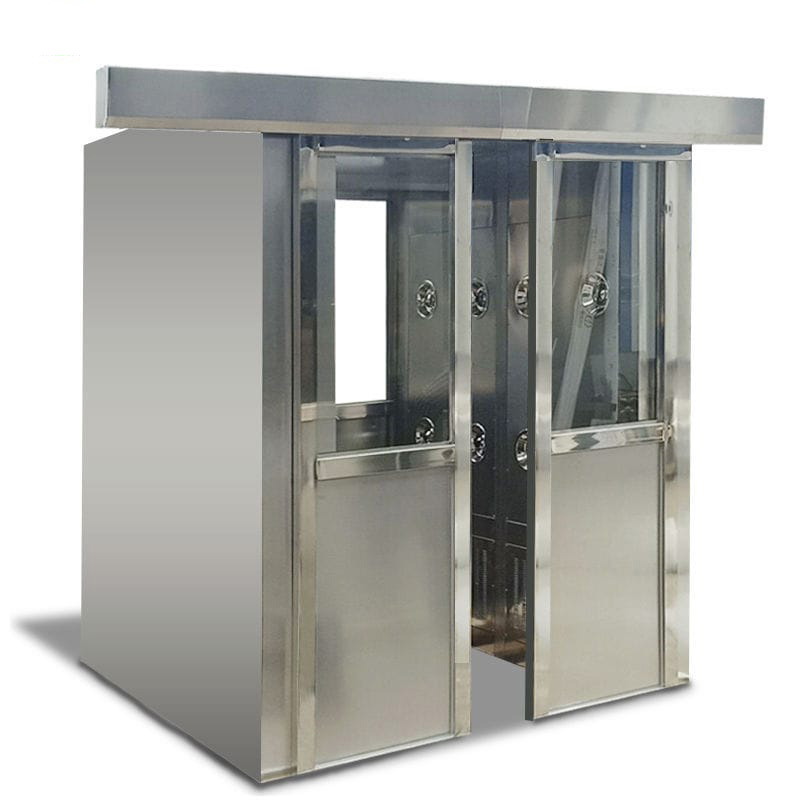

Fast Rolling door Cargo stainless steel Air Shower room

Fast Rolling Door Cargo Air Shower Clean Room

1. Photoelectric control, automatic blowing shower.

2. The design of circulating air ensures the cleanliness of the air shower room area in the non-blown shower state.

3. The double door adopts an electronic interlock to force the shower, and the double door can be made into an automatic Sliding door.

4. English Panel and English voice

Technical Parameters

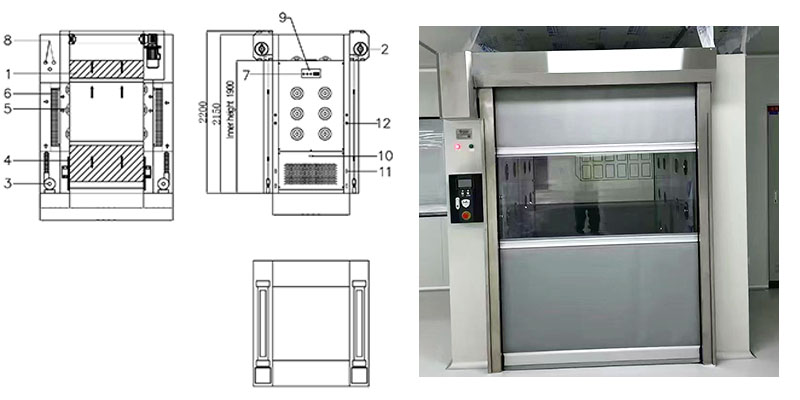

1.External dimensions: 2000*1500*2150mm

   Inner Size: 1400*1500*1900mm

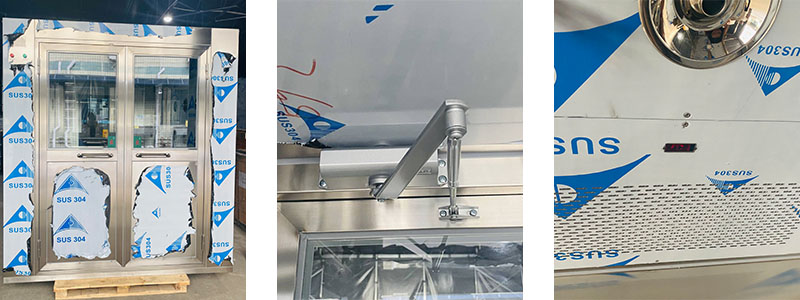

 2. Material

a. The box body and liner are made of stainless steel 304 sanded board, with natural sanding on

     the surface

b. No inner bottom plate, convenient for carts.

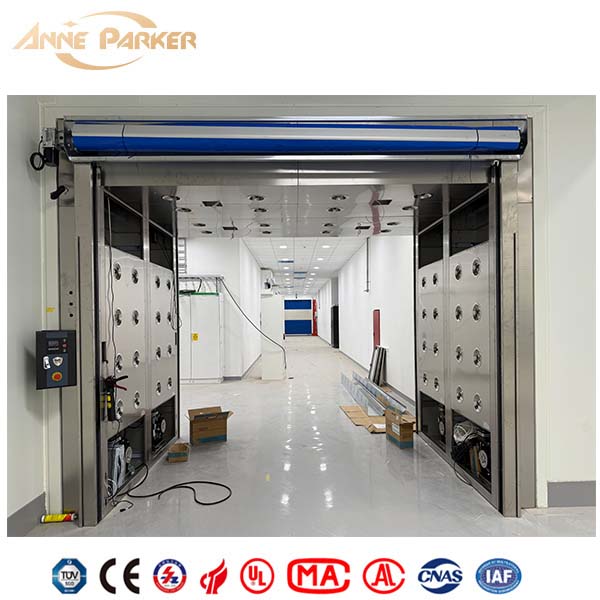

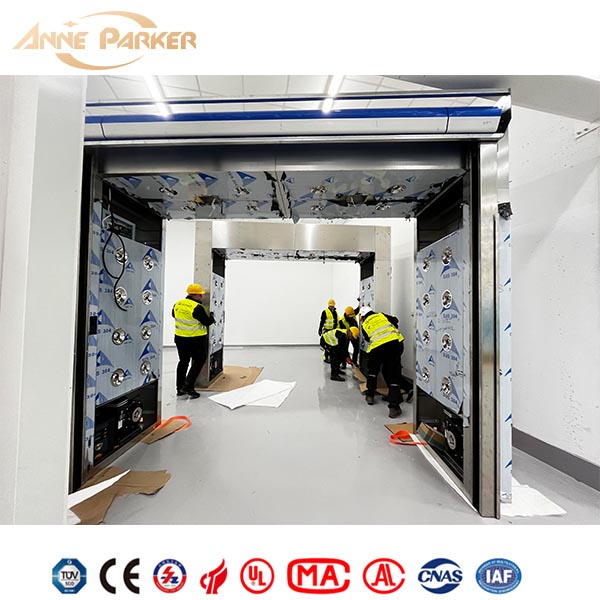

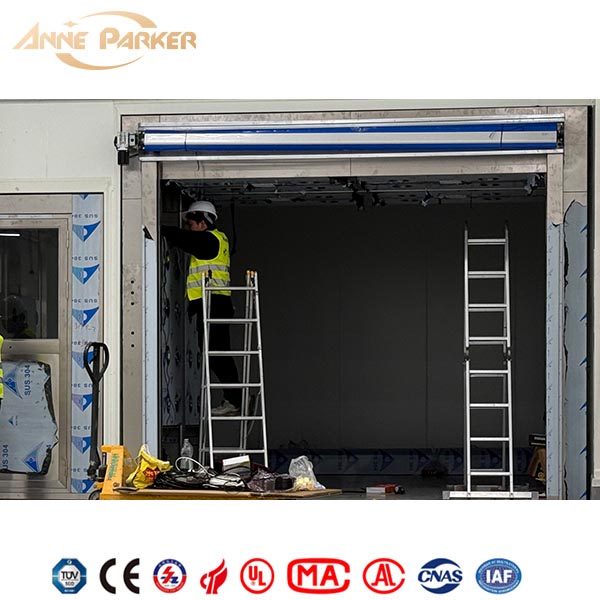

Automatic rolling door parameters

 1. Door frame material:

     Door frame material is stainless steel sanded 304

2. Curtain material:

    Fully transparent PVC film, transparent window can be rectangular or oval,

   which increases safety and management convenience, thickness 1.5mm

3. Features

   a. Opening and closing speed: 0.6-1.0m/s

   b. Power: door machine, three-phase 380V, 50Hz, power 0.75-3.0Kw

   C. Control method

   1. Button type 2. Remote control type 3. Microwave probe

4. Automatic motor service life: cumulative opening and closing times 250,000 times

Accessories description:

1. PVC rolling door (dark blue, light blue, gray, orange, yellow, optional colors,

transparent window in the middle)                                                                              1 set, 2 units

2. Automatic rolling door machine                                                                                2 sets

3.Centrifugal fan                                                                                                              2 Motors

4. Primary filter                                                                                                                  2 PCS

5. Stainless steel air nozzle                                                                                           18PCS

6.HEPA filter                                                                                                                     2 PCS

7. Circuit control panel (Siemens)                                                                                1 SET

8 .Power indicator, working indicator, emergency stop button three each in front and back

9.LED light                                                                                                                        1 SET

1 0.Infrared photoelectric sensor                                                                                  1 Unit

11. Anti-pinch sensor                                                                                                       4 Sets

12. Open door button                                                                                                       8 Pcs



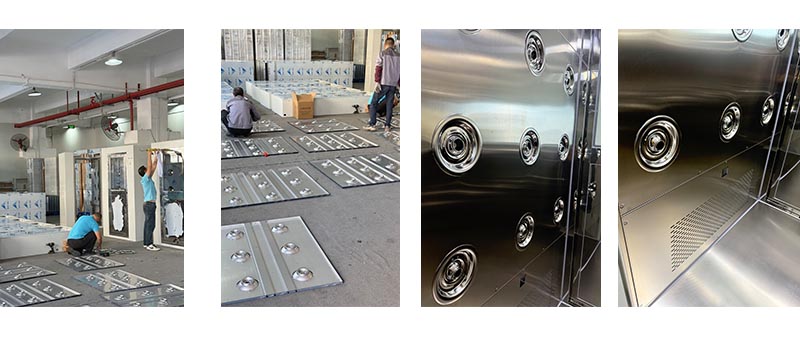

▶  Performance Characteristics

1. The fans in the air shower room/cargo shower room can be equipped with multiple protections such against overheating,

overcurrent, short circuits, and malicious use.-------Safe & Reliable Performance

2. Emergency buttons are set inside and outside the air shower/cargo shower to ensure the safety of personnel and equipment in emergencies

3. The control system is divided into Standard and High configurations for customers to choose from. The standard configuration

is a touch panel, which has a simple appearance and must have complete functions and low cost; The high-end configuration is

Siemens touch screen and PLC control. The control process can be customized and modified according to customers' different requirements.

The touch screen is easy to use, complete in functions, stable and reliable

4. The aluminum alloy automatic swing door can be opened electrically. The interlocking access control is controlled by a programmable controller.

The door type is made of aluminum alloy, and the doors and windows are tempered glass.

Entering the air shower room, the controller immediately opens the entrance door and starts blowing the shower, the interlocking door is

controlled by the programmable controller, the emergency interruption switch is superior to the interlocking and open air shower door,

the large-scale automatic stacking rolling shutter door, the transmission mechanism motor is a high-speed motor , The rolling shutter door

of the cargo shower room has its own safety (protection) system

The bottom of the door body is in contact with the sensing edge, and the semi-automatic hand crank can be lifted in the event of a power

failure (or power failure) (customized according to customer requirements)

5. The air shower/cargo shower box implements the master-slave modular structure design, and meets the customer's needs through

different combinations.-------Different Shower Air Speed

6. The air shower clean room/cargo shower room has its own pressure relief device to prevent the fan from being over-pressed and

causing the temperature to rise too high.-------Security Risks

7. Automatic door induction blowing shower system: Japan OMRON brand photoelectric sensor switch is used, with stable and reliable

performance, to ensure that the blowing and showering process of personnel entering the clean room is carried out normally, so as to

achieve the most effective blowing and showering effect.

8. Lighting system: 220V LED lighting, long service life, high irradiation intensity, small size, low energy consumption, etc.

9. Voice prompt system: The air shower room has its own voice function and humanized design. Users can operate according to the voice

prompt requirements, so as to achieve the best blowing effect.



▶  Configuration Instructions

Air Shower - Configuration Instructions

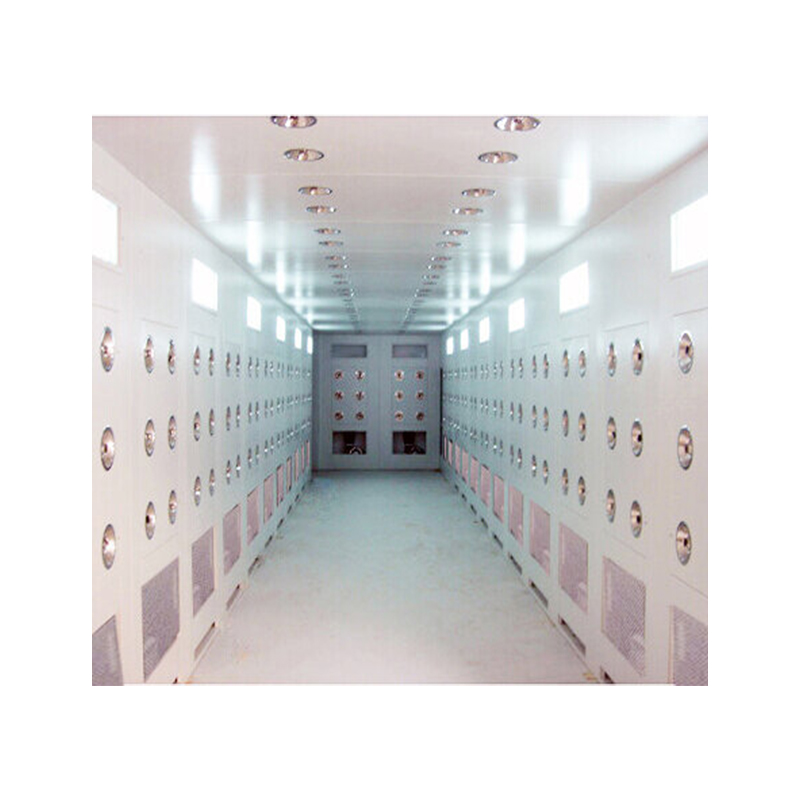

Type: straight-through, tunnel, L-type, T-type

• Door opening method: manual single door, manual double door, automatic translation single door, automatic translation double door, PVC quick-roll door

•Material: stainless steel 304, stainless steel 201, steel plate paint

• Application area: changing room into clean room entrance, cargo entrance, and exit, between clean room and clean room

•Material confirmation: the overall 304 material of semiconductor, food, medical equipment industry

•Confirmation of specifications and quantity: the width and height are by the standard, and the depth is following

the number of people in the workshop or the number of people entering a single time

• Confirmation of door opening method: ◊ Single door opening: Confirm door opening direction

                                                                                            ◊ Sliding door: Confirm that the outside width is sufficient for the sliding door space

                                                                                            ◊ PVC fast rolling door: confirm the clean room floor height and door operator position

• Floor confirmation: unloading method, transportation method

• Confirmation of details: emergency stop switch, floor method, whether top blowing is required, control method, whether access control is required, power access point
