Auto Sliding door Cleanroom Air Shower Unit Tunnel For Industries

 ▶  Air Shower

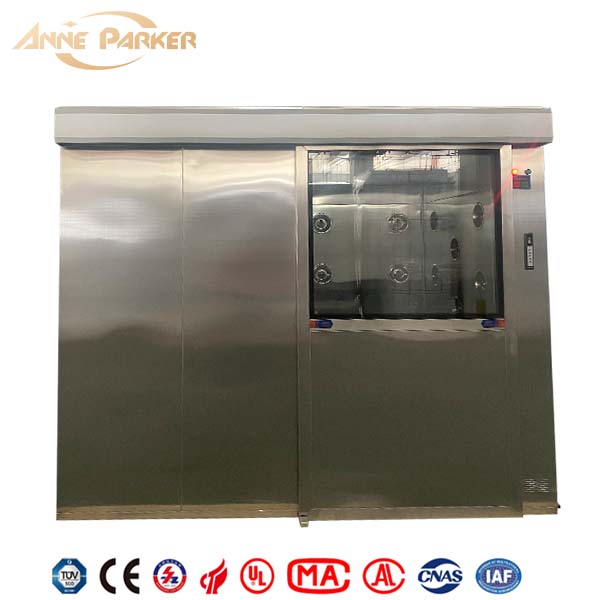

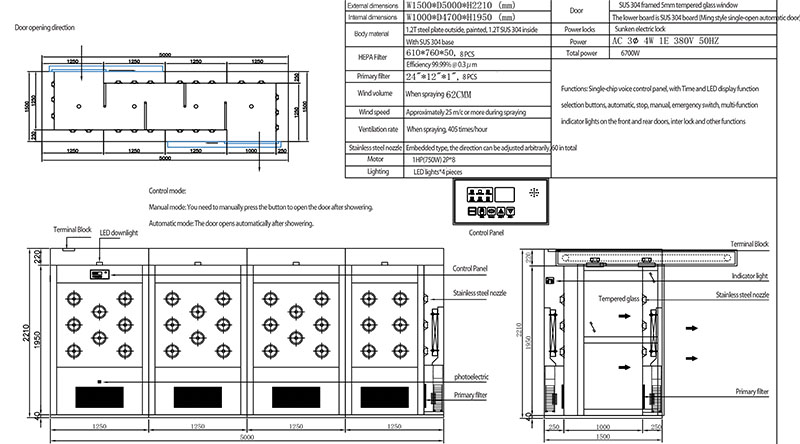

Auto sliding door  Drawings will confirm all air shower tunnels before production.

Air Shower Tunnel The AS series air shower clean room is used to blow off the dust attached to the surface of people and objects, and at the same time act as an airlock, preventing unpurified air from entering clean areas. is the performer

Effective equipment for the body, material purification, and prevention of outdoor air intrusion into clean areas, universally has strong performance and can be used with all clean rooms and clean workshops.

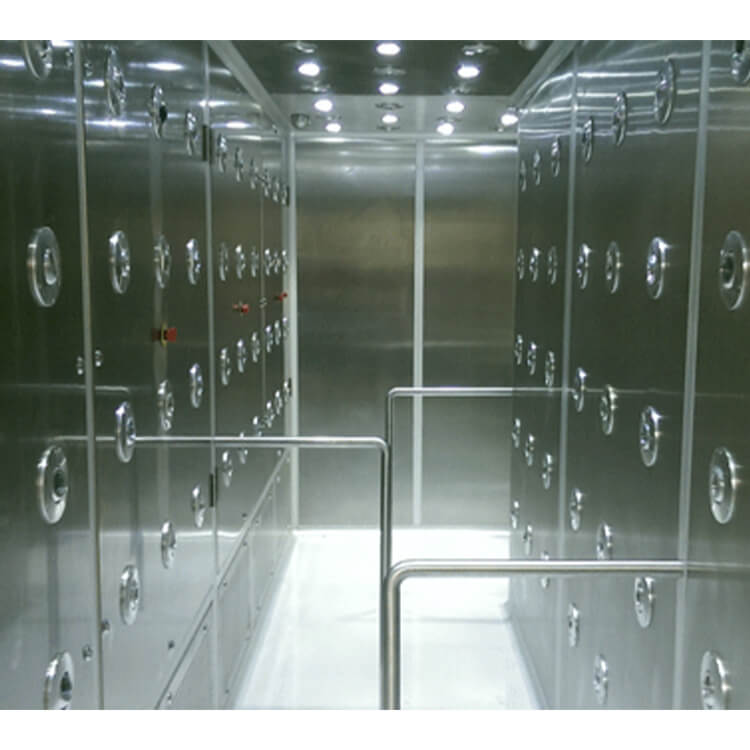

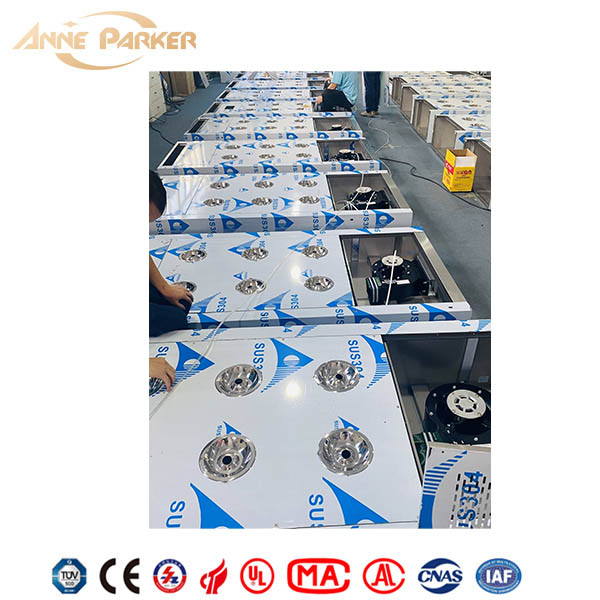

SUS 304  Air Shower Unit Tunnel

1. Photoelectric control, automatic blowing shower.

2. The design of circulating air ensures the cleanliness of the air shower clean room area in the non-blown shower state.

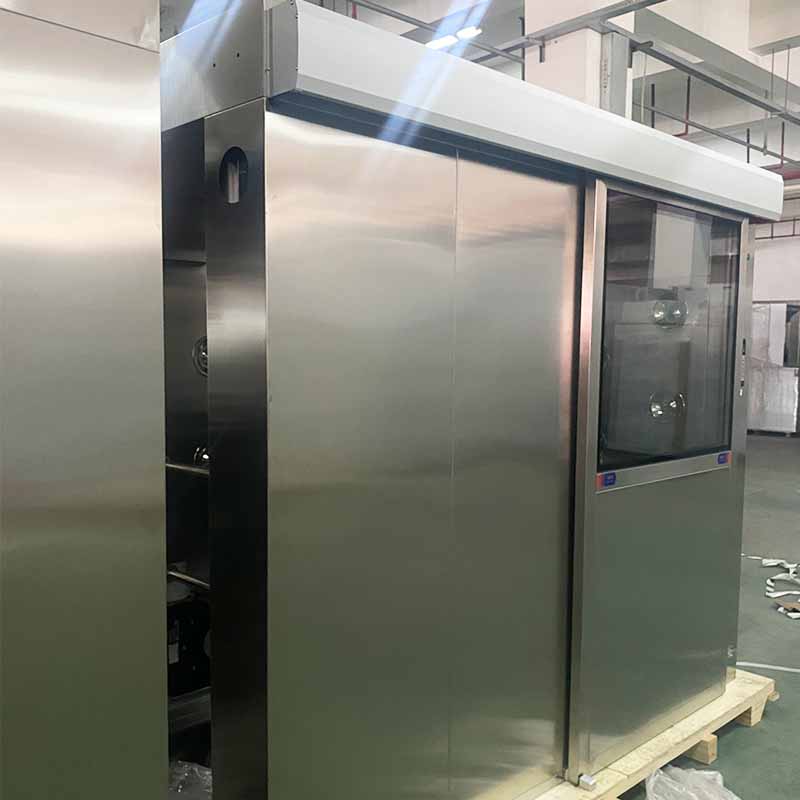

3. The double door adopts an electronic interlock to force the shower, and the double door can be made into an automatic Siding door.

Introduction

Air showers and Air Shower Unit Tunnel are widely used in microelectronics, optoelectronics, semiconductors, medicine, food, chemical industry, aviation,non-clean workshops and stepped cleanliness workshops such as cars, printing, laboratories, etc.

During the process of entering the high-cleanness room, the dust particles larger than 0.3 microns on the human body and various parts of the goods are removed to avoid being brought into the clean room;  it also acts as an airflow buffer, because in the process of opening the door, there is a flow of air attached to it.

The air shower/cargo shower can stop the air flow inside it well to avoid the pollution caused by the air flow.

▶  Configuration Instructions

Air Shower - Configuration Instructions

Type: straight-through, tunnel, L-type, T-type

• Door opening method: manual single door, manual double door, automatic translation single door, automatic translation double door, PVC quick-roll door

•Material: stainless steel 304, stainless steel 201, steel plate paint

• Application area: changing room into clean room entrance, cargo entrance and exit, between clean room and clean room

•Material confirmation: the overall 304 material of semiconductor, food, medical equipment industry

•Confirmation of specifications and quantity: the width and height are in accordance with the standard, and the depth is in accordance with the number of people in the workshop or the number of people entering a single time

• Confirmation of door opening method: ◊ Single door opening: Confirm door opening direction

                                                                                            ◊ Sliding door: Confirm that the outside width is sufficient for the sliding door space

                                                                                            ◊ PVC fast rolling door: confirm the clean room floor height and door operator position

• Floor confirmation: unloading method, transportation method

• Confirmation of details: emergency stop switch, floor method, whether top blowing is required, control method, whether access control is required, power access point
