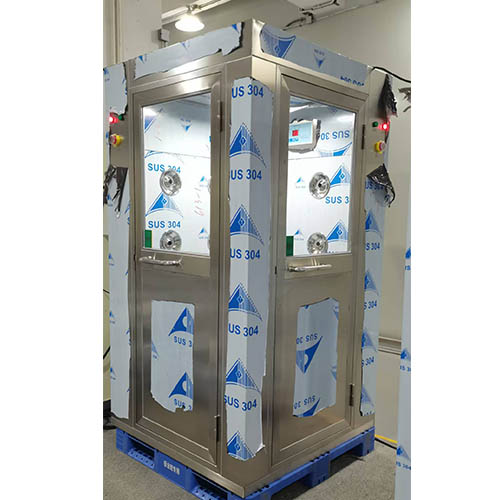

Swing door cleanroom air shower for pharma cleanroom project
air shower in pharmaceutical industry
L Type air shower details
Product name: Corner double-blowing air shower room
Specifications: W1200×D1200×H2180mm (outside)
W880×D880×H1930mm (inside)
Configuration and technical parameters:
1. Box and inner wall materials:
a. The box and outer bottom frame are made of stainless steel 304 sanded plate (national standard 1.2mm) and bent,
with natural sanding on the surface;
b. The inner wall is made of stainless steel 304 sanded plate, with natural sanding on the surface;
c. The inner bottom plate is made of stainless steel 304 sanded plate, with natural sanding on the surface;
2. Double-door electronic interlocking (electric lock, door magnet, and relay constitute the interlocking system);
3. Door material:
a. The door frame is made of stainless steel sanded plate 304#.
b. The door core frame is made of t1.0×30×60mm stainless steel sanded flat pass 304# material welding;
c. The upper window of the door core is made of t5.0 mm transparent tempered glass;
d. The lower sealing plate of the door core is made of 304# stainless steel sanded plate;
4. Power supply: 3P/AC380V/50Hz/2.5KW.
FAQ about air shower
1. How to ship? Does it need to be assembled on-site?
a. For a single-person air shower room, we will pack the whole machine in a wooden box for shipment,
and customers can directly connect and use it on site;
b. For a multi-person air shower room/air shower tunnel, it will be shipped in several sections. Before shipment,
we will shoot the installation and connection video and provide text installation tutorial. Each section and the part that
needs to be wired are marked to facilitate customers' on-site connection. If there are problems with on-site assembly,
we can also provide online guidance
c. If there are special requirements on the project site, we can ship in pieces and provide installation videos
On-site assembly of the air shower room, and subsequent installation and maintenance, are all performed inside the air shower room
2. What are the door opening methods to choose from?
Swing door, automatic sliding door, fast rolling door; we have a variety of door opening methods to choose from, and customers can choose the door opening method according to the on-site conditions. Sufficient space should be reserved on site foran automatic sliding door.
3. What sizes are available?
Usually, an air shower room is a customized product, and we will customize it according to the customer's size requirements. If there are no special requirements, the recommended height is 2180mm, and the packaged size is 2400mm, which can be directly packed (except for the mist shower room and fast rolling shutter door)
The size of the hot-selling single-person air shower room (swing door): W: 1290*D1000*H2180 (mm)
Raw materials can be selected: stainless steel 304 (recommended for high-cleanliness projects such as biopharmaceuticals) or steel plate baking paint (electronics factories and new energy projects)
4. How to control?
The air shower room is equipped with a control screen to control the shower time and lighting, and is also equipped with English prompts
5. Delivery time
7-10 working days after receiving the customer's advance payment can be packaged and shipped
The mist shower room requires more verification, the process is relatively complex, and the delivery time is 20- 25 days
