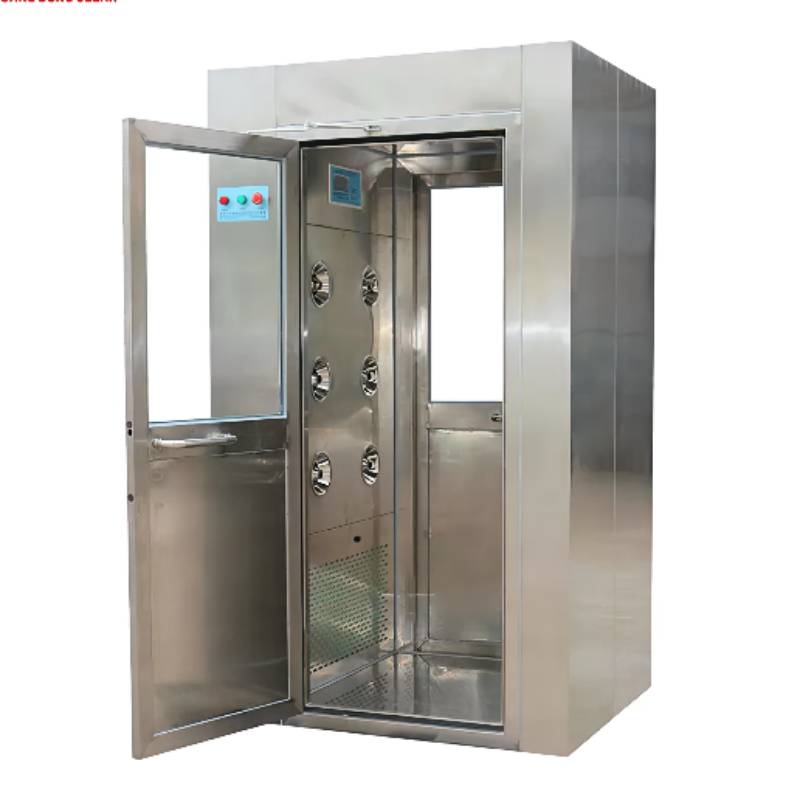

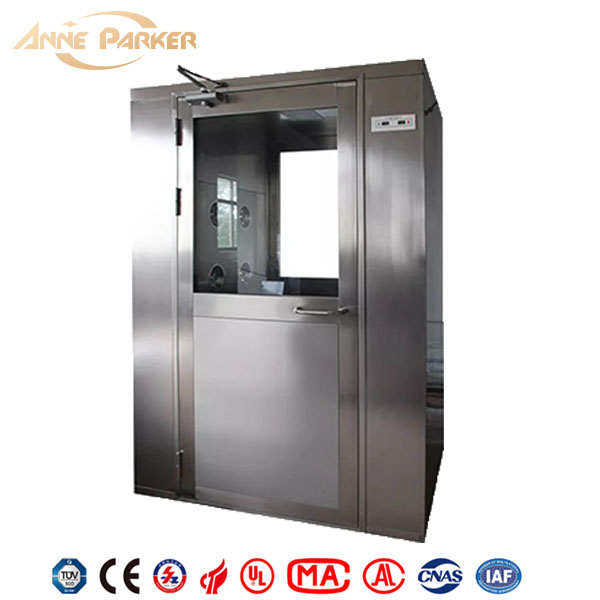

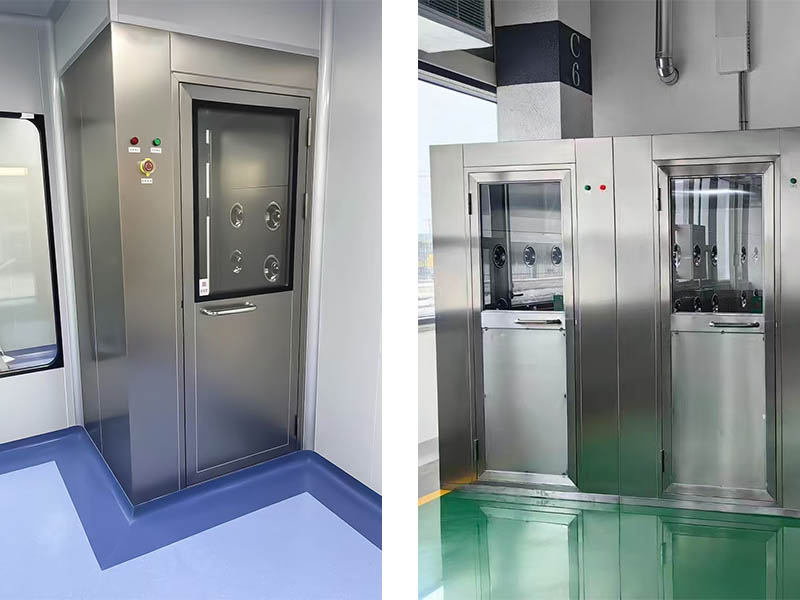

Swing Door Stainless Steel Air Shower Clean Room

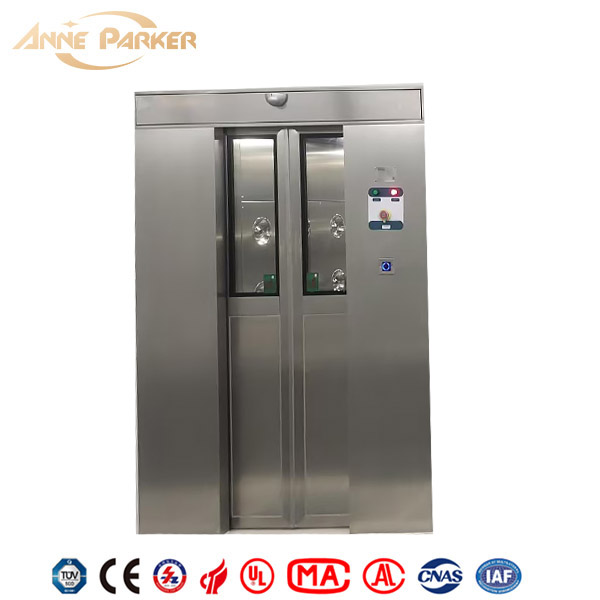

Swing door stainless steel air shower

Product name: Single double-blowing air shower room

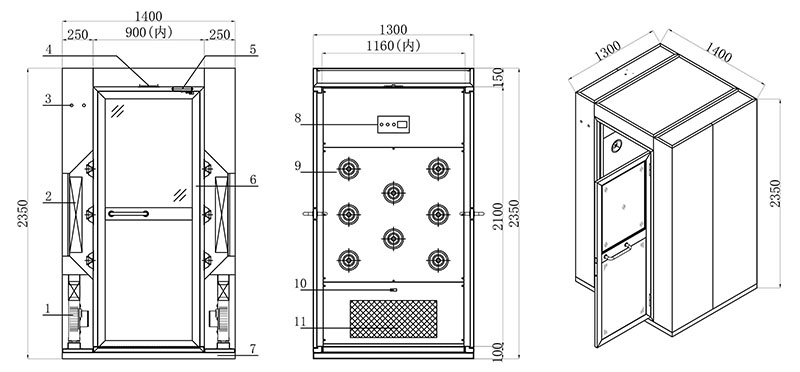

Specifications: W1400×D1300×H2350mm (outside)

W900×D1160×H2100mm (inside)

Configuration and technical parameters:

1. Box and inner wall materials:

a. The box and outer bottom frame are made of 304 sanded stainless steel plate with natural sanding on the surface;

b. The inner wall is made of 304 sanded stainless steel plate with natural sanding on the surface;

c. The inner bottom plate is made of 304 sanded stainless steel plate with natural sanding on the surface;

2. Double-door electronic interlocking (electric lock, door magnet, relay constitute the interlocking system);

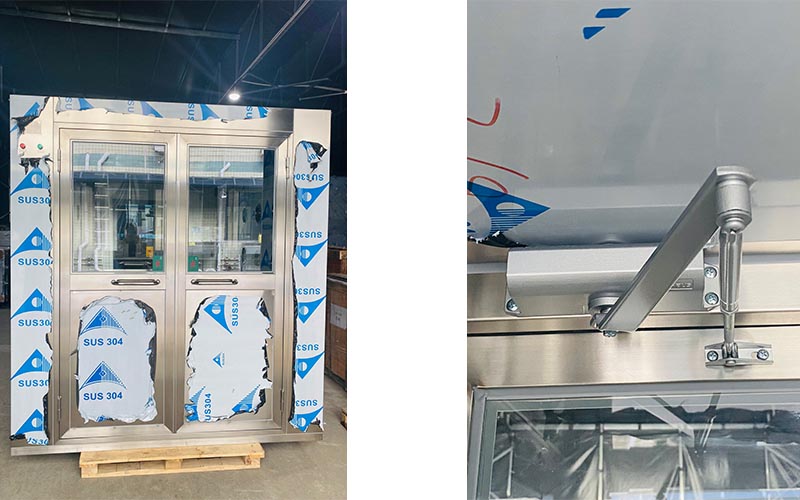

3. Door material:

a. The door frame is made of 304 sanded stainless steel plate;

b. The door core frame is made of t1.0×30×60mm304 sanded stainless steel flat material welding;

c. The upper half of the door core window is made of t5.0mm transparent tempered glass;

d. The lower half of the door core is made of 304 sanded stainless steel plate;

4. Power supply: 3P/AC380V/50Hz/2.5KW.

Stainless Steel Air Shower Product functions:

1. Used for the entry and exit of personnel or goods between high-level clean areas and low-level clean areas,

to prevent unclean airflow from entering high-level clean areas;

2. A shower purification device is set up in the work area to eliminate dust attached to the surface of people, and it has the function of an airlock;

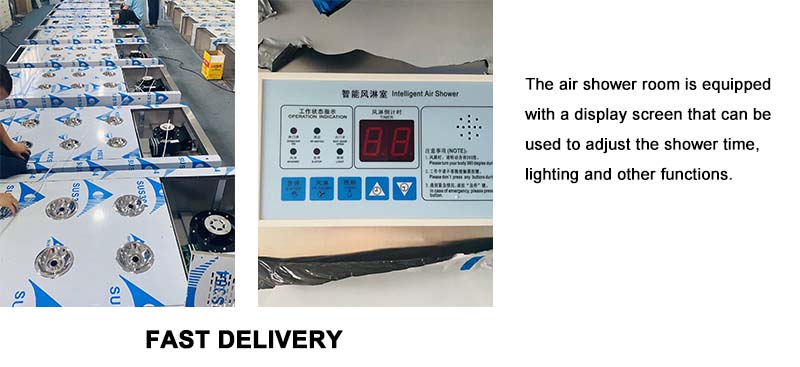

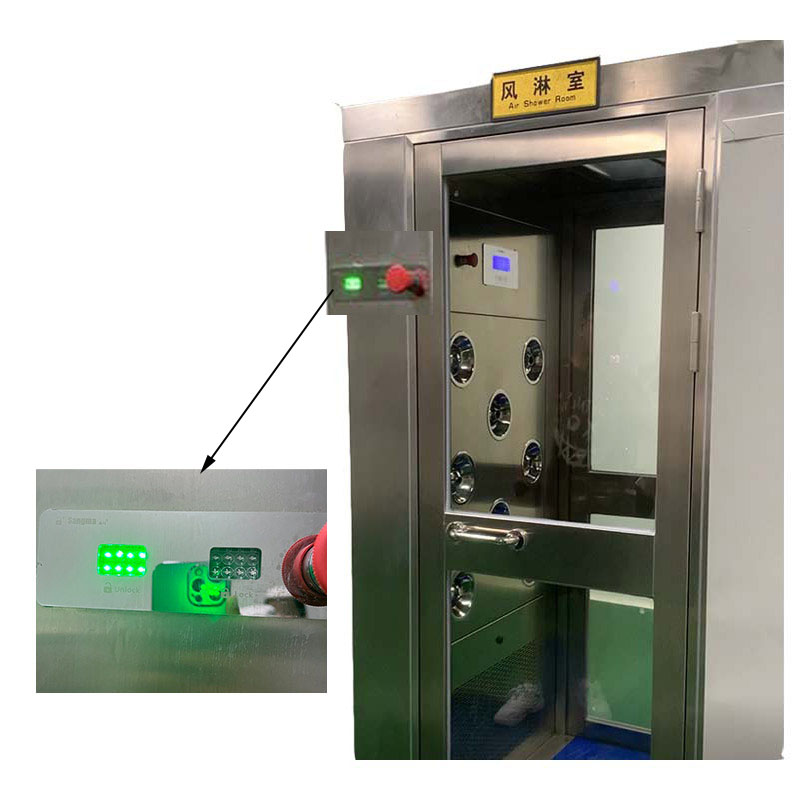

3. Voice prompts, automatic control, infrared sensing, and automatic spraying on both sides;

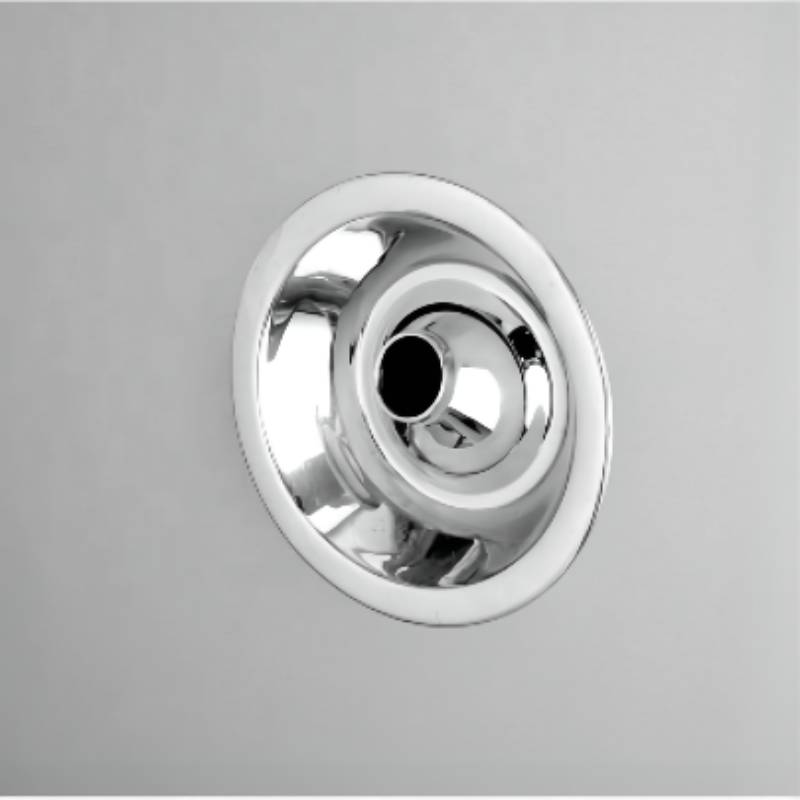

4. The nozzle shower wind speed can reach 22-25m/s, and the shower time is adjustable from 10 to 99 seconds;

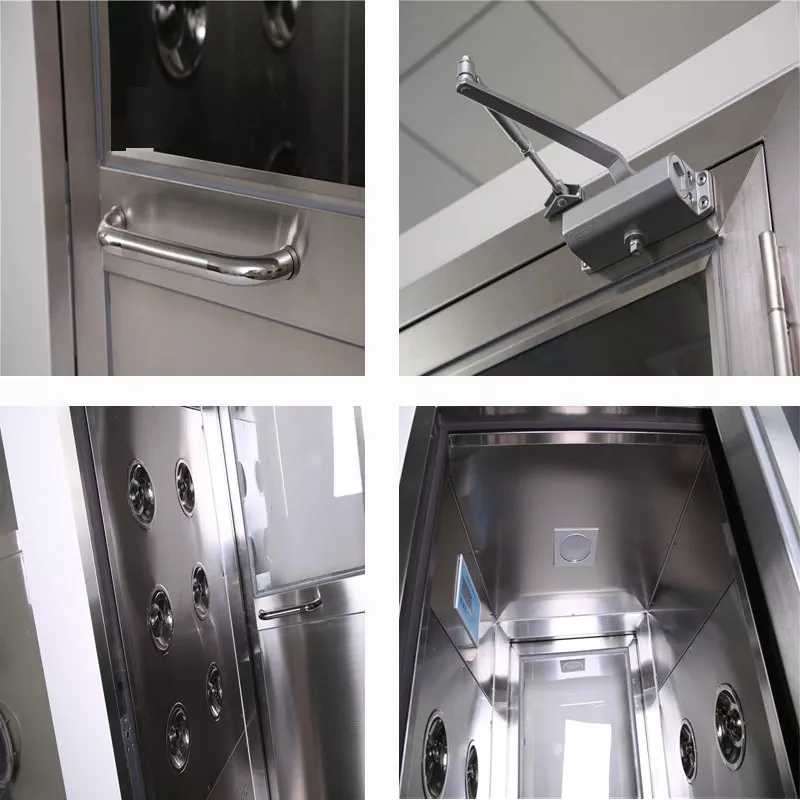

5. The door closer device ensures that the door body cannot open automatically when it is not in operation;

6. The interlocking device ensures that the doors on both sides cannot be opened at the same time in the working state, which is safe and reliable;

7. The bottom surface of the air shower room is made of stainless steel plate, which does not produce dust, is wear-resistant, corrosion-resistant, and easy to clean;

8. The door glass window can be used to view the situation in the work area at any time, which is convenient to use;

9. The efficiency of the high-efficiency filter is 99.95%@0.3um;
