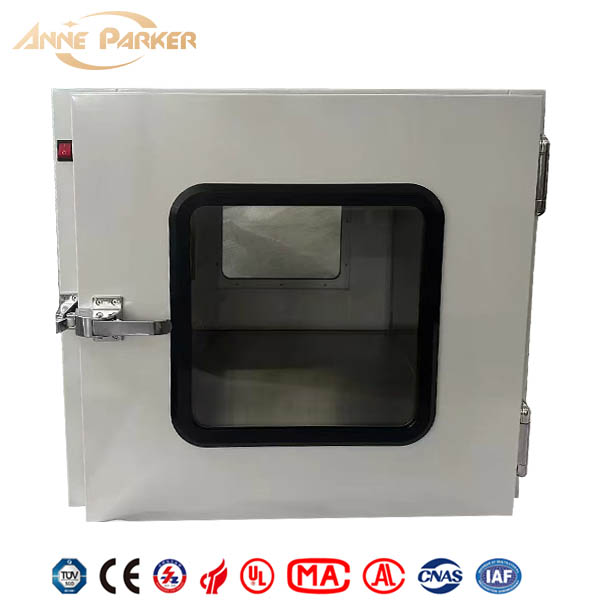

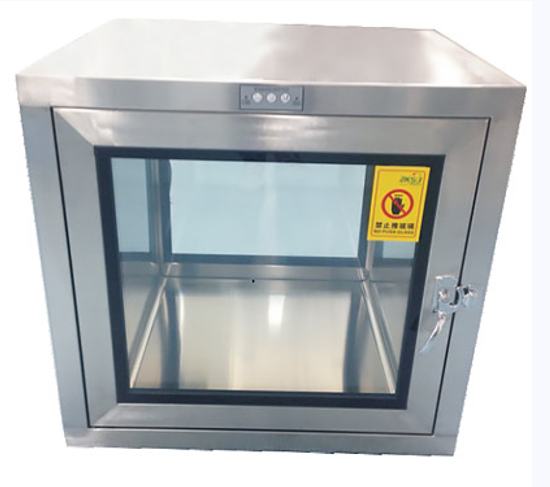

Static pass box is an air purification equipment used in conjunction with clean workshop, suitable for medium and small cargo transfer between clean rooms or between clean room and a non-clean room.
The use of pass boxes can reduce the number of opening and closing times of clean rooms and minimize pollution in clean areas.
The products are widely used in micro technology, the electronics industry, biological laboratories, pharmaceutical factories, hospitals.
food processing industry, and other air purification places.
Raw Material and the details

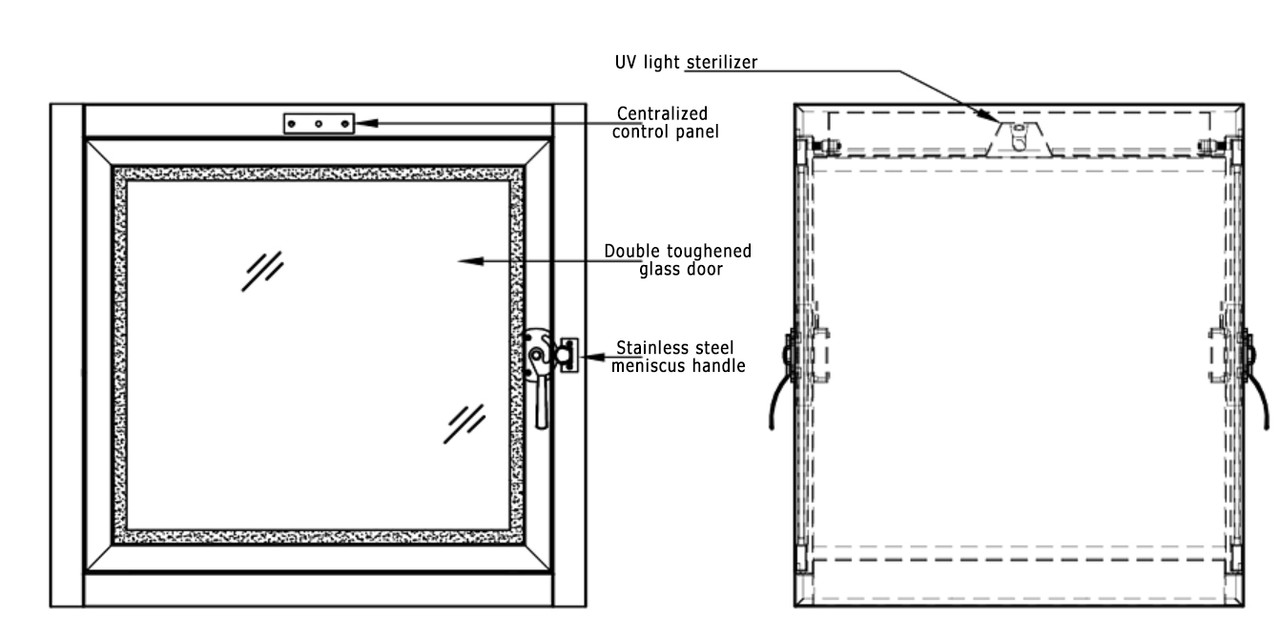

1. The outer shell and the inner liner are made of 1.2 mm stainless steel sanded plate 304 material, and the four corners of the inner liner are designed with seamless arcs
2. The door core is made of t1.2*20*40mm stainless steel sanded plate 304 material
3. The doors and windows are equipped with double-layer tempered glass
4. A dedicated control system is set up, and the double doors are electromagnetically interlocked
5. A UV lamp is set inside
Basic performance requirements:
◎ Double shell inside and outside, circular arc treatment around the inside to ensure seamless connection;
◎ Control function: UV lamp, designed with a separate switch;
◎ Double door interlock, effectively prevents cross-contamination;
◎ Intercom available;
◎ High sealing performance;
Technical Parameters
1 |
Handle |
2 |
Set |
1 each in front and back |
2 |
UV Light |
1 |
Pcs |
L=460mm |
3 |
Stainless steel door |
2 |
Pcs |
1 each in front and back |
4 |
Magnetic lock |
2 |
Set |
1 each in front and back |
5 |
Tempered glass |
4 |
Pcs |
t 5.0mm |
6 |
Control Panel |
1 |
Set |
Front and rear control panel |
Note: The specifications listed in the table are for customer reference only, and the clean pass box can be designed and made according to customer requirements.
