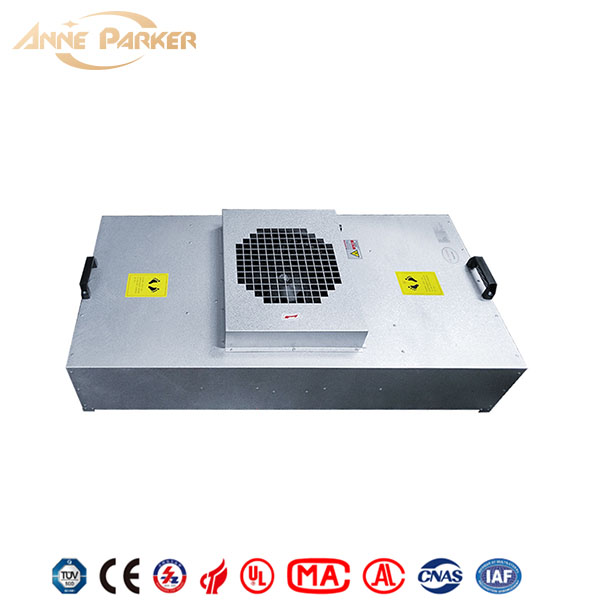

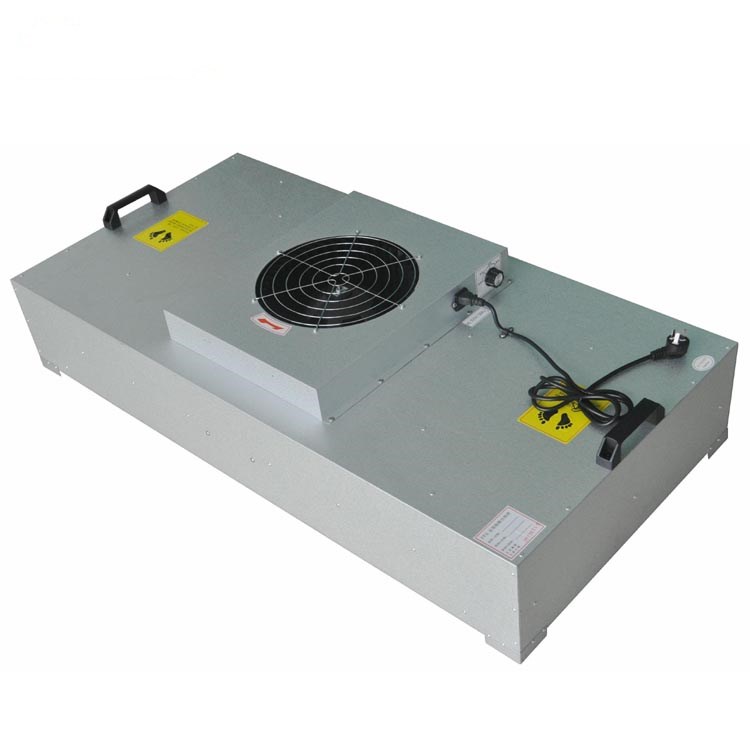

230V 110V ffu equipment ULPA fan filter unit

230V 110V ffu equipment ULPA fan filter unit

Product Tags : clean room ffu clean room hepa fan filter unit equipment fan filter unit

Product Attributes :

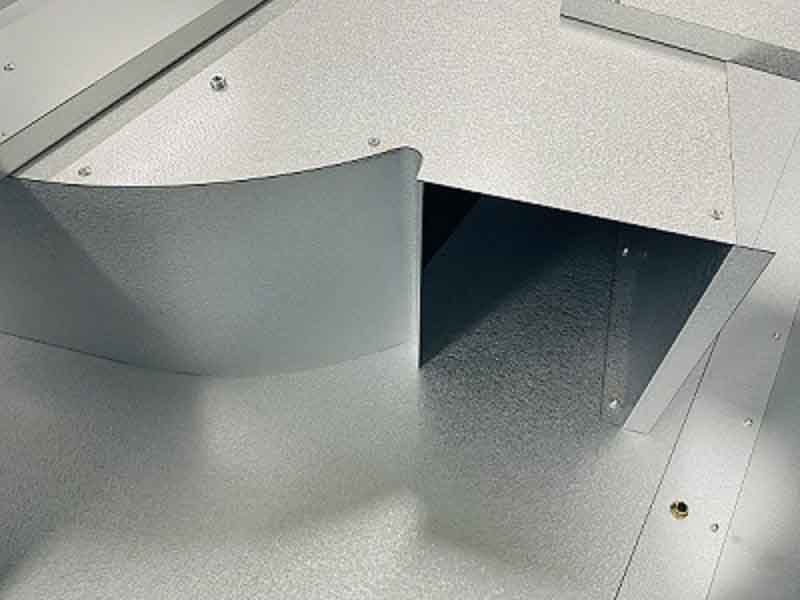

1. Rustproof aluminium/Self-contain stainless steel / galval

-nium / powder coated steel FF is compact in size and

can be easily installed in Clean Room ceiling grids.

2. Low energy consumption reduces operating cost

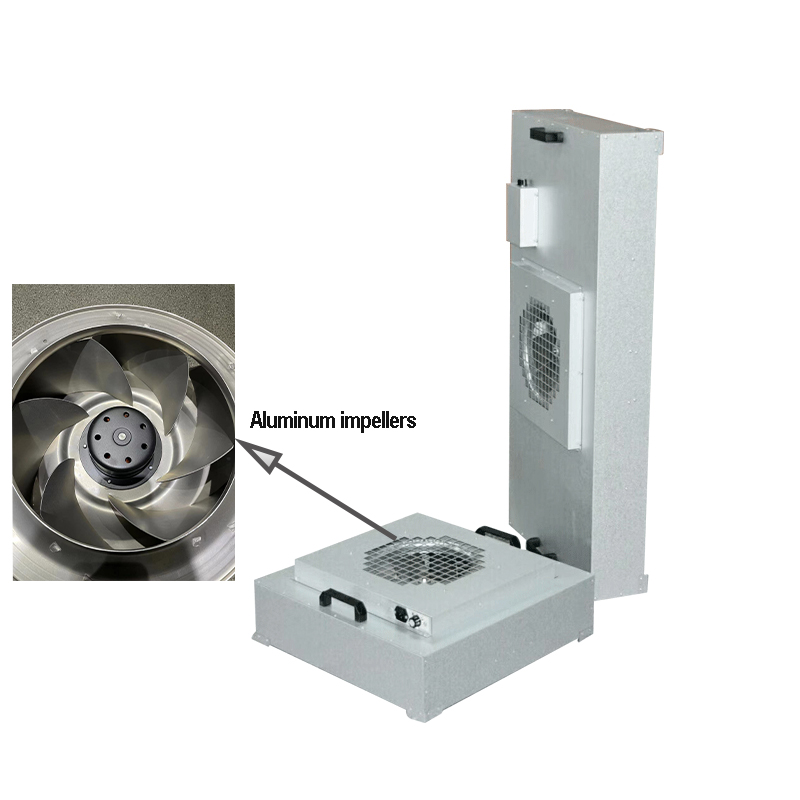

3. Our FFU Fan and Filter Unit comes with powerful blowers, which is extre-

mely reliable and quiet even under high static pressure.

4. Our FF are capable of achieving Class 10,000 through

Class 1 Clean Room condition.

5. Control for our FFUs(Fan and Filter Units) can be: 3 speed on device control, 3 speed remote control (with status indicator), computer control,and main-sub controller system.

Product Description

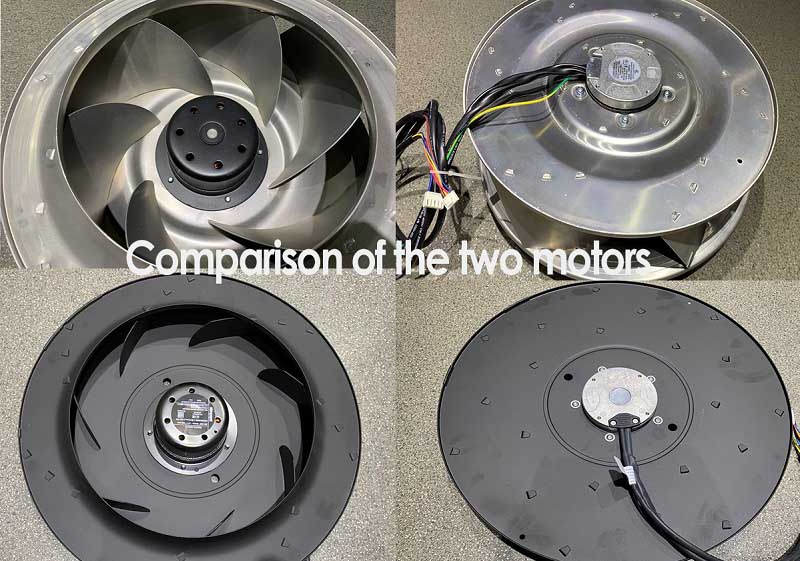

230V 110V H14 FFU HEPA filter HEPA ULPA filter With German DC Motor fan filter unit

PRODUCT SPECIFICATIONS

Model		FFU0606G/S/A1M-H/U		FFU0906G/S/A1M-H/U		FFU1206G/S/A1M-H/U		FFU1209G/S/A1M-H/U		FFU1212G/S/A1M-H/U
Size(mm) AC motor	Normal	575×575×320		875×575×320		1175×575×320		1175×875×320		1175×1175×320
	Bottom loading	575×575×370		875×575×370		1175×575×370		1175×875×370		1175×1175×320
Face wind speed		H		S	H	S	H	H		H
		0.45		0.45		0.45		0.45		0.45
Machine residual external pressure（pa）		50	120	50	120	50	120	50	120	50	120
Standard working condition power consumption（W）		80	150	90	160	110	180	210	220	250	260
Maximum power consumption（W）	AC motor	180		130	230	150	250	280		320
Single noise dB(A)	AC motor	49	52	49	52	50	53	52	55	53	56
HEPA filtration efficiency		99.995%(@0.3µm) / 99.9995%(@0.12µm)
HEPA SIZE(MM)	Normal	570×570×70		870×570×70		1170×570×70		1170×870×70		1170×1170×70
	Bottom loading	570×570×110		870×570×110		1170×570×110		1170×870×110		1170×1170×110
Power supply		AC single item,220V/50HV
Way to control	AC motor	AC motor FFU can realize three-speed speed regulation, five-speed speed regulation, remote control and group control

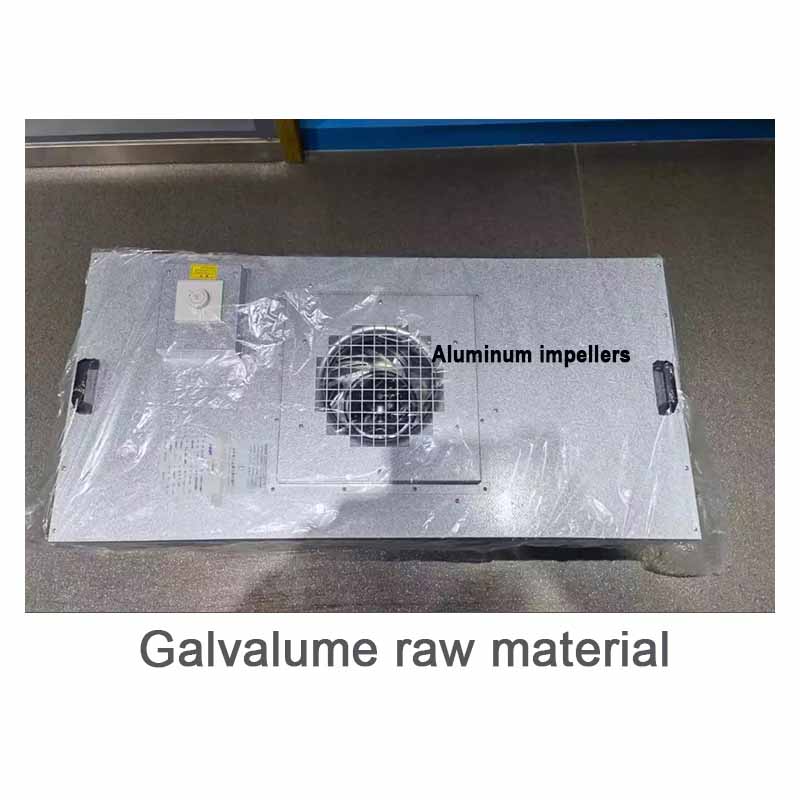

Box material		Galvalume, aluminum, stainless steel（SUS304、SUS430、SUS201）

Note:

1. H is a high static pressure type, S is a standard type;

2. Clean room FFUs of the above specifications are not equipped with phase-effect filters, if you need to be equipped with coarse-efficiency filters, you need to add an explanation when ordering, and the height of the cleanroom FFU is also Will increase by 30mm accordingly.

3. Standard operating conditions refer to the operating conditions when the rated wind speed is 0.45m/s and the residual pressure outside the machine is 50Pa (120Pa). 4. The maximum power consumption is the power consumption when the cleanroom FFU air volume is at its maximum.

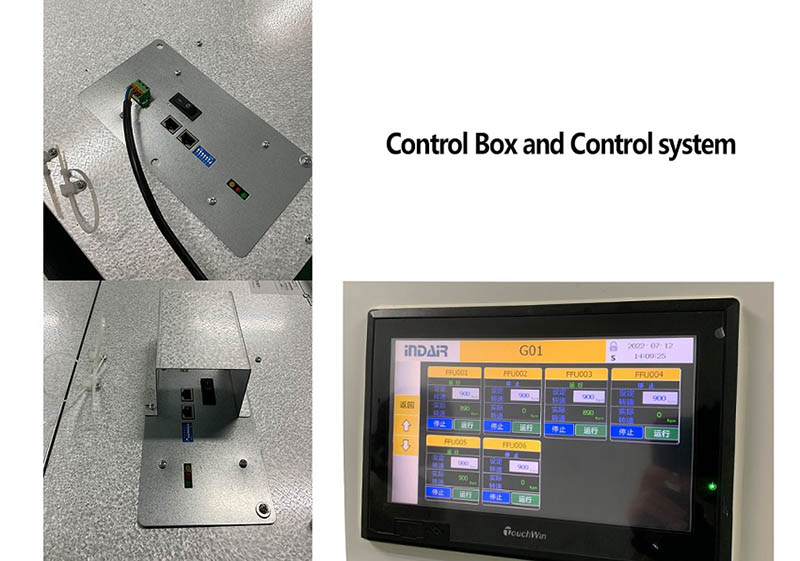

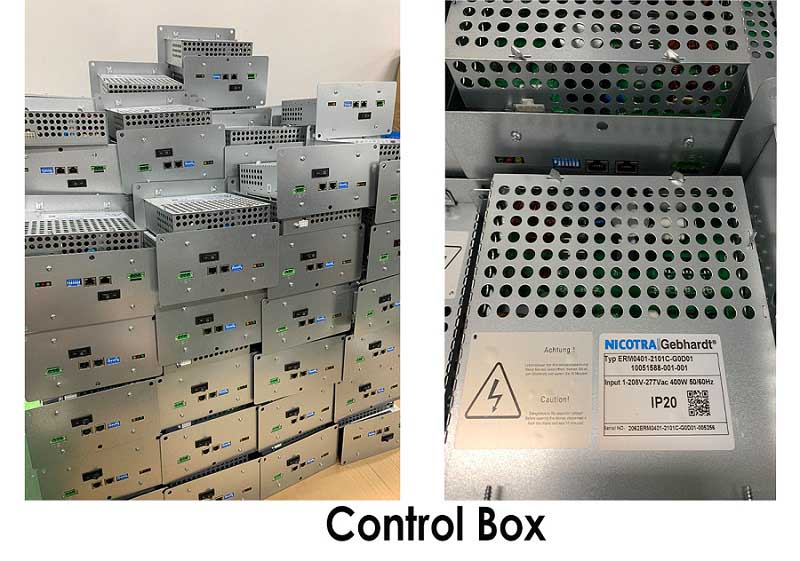

FFU CONTROL SYSTEM

The cleanroom FFU group control system can centrally control and monitor a large number of FFUs.
Control cleanroom equipment FFU operation, stop, speed, and can monitor FFU status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, distinguish the authority of different operators.
• It can provide on-site layout view to visually display the FFU filter unit location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the FFU filter unit at the specified time (only computer support).
•You can record system logs, and you can view historical operations, equipment failures and other information (only supported by computers).
• Fast communication response speed, the status of 3000 cleanroom FFUs can be inquired every minute, and the inquiry speed can be doubled by adding a communication interface.
• AC FFU and DC FFU can be mixed in one system, and the group control system provides a unified control interface.
• It can provide dual control functions. When using a computer as the main control terminal, the touch screen or LCD screen can be installed on site as a slave control terminal, and the computer and the slave control
All control terminals can monitor and control the FFU.
• The control terminal can be connected with third-party systems such as firefighting and automatic control for data exchange, or control the equipment FFU according to external input signals.
• Sensors such as wind speed and pressure difference can be added to the system, and the data can be displayed and monitored on the control terminal.
• Customized functions can be added according to customer needs.
