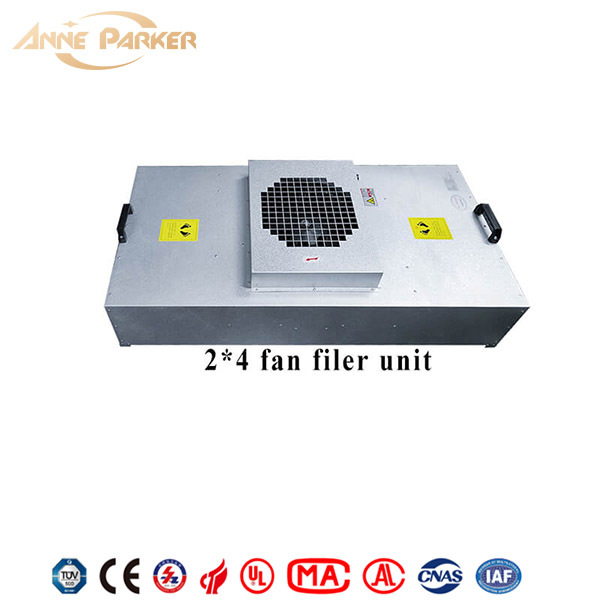

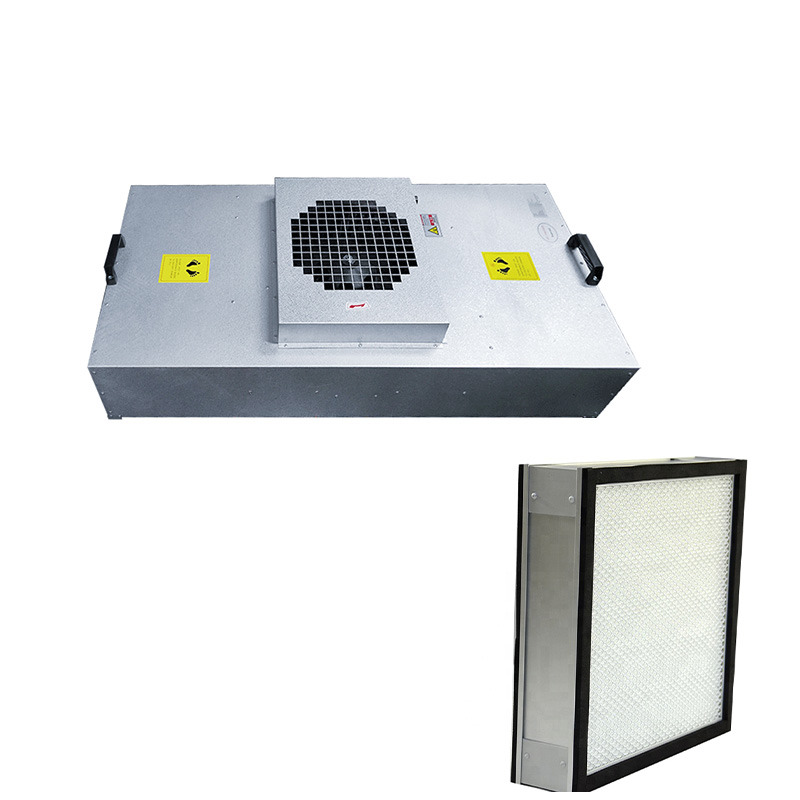

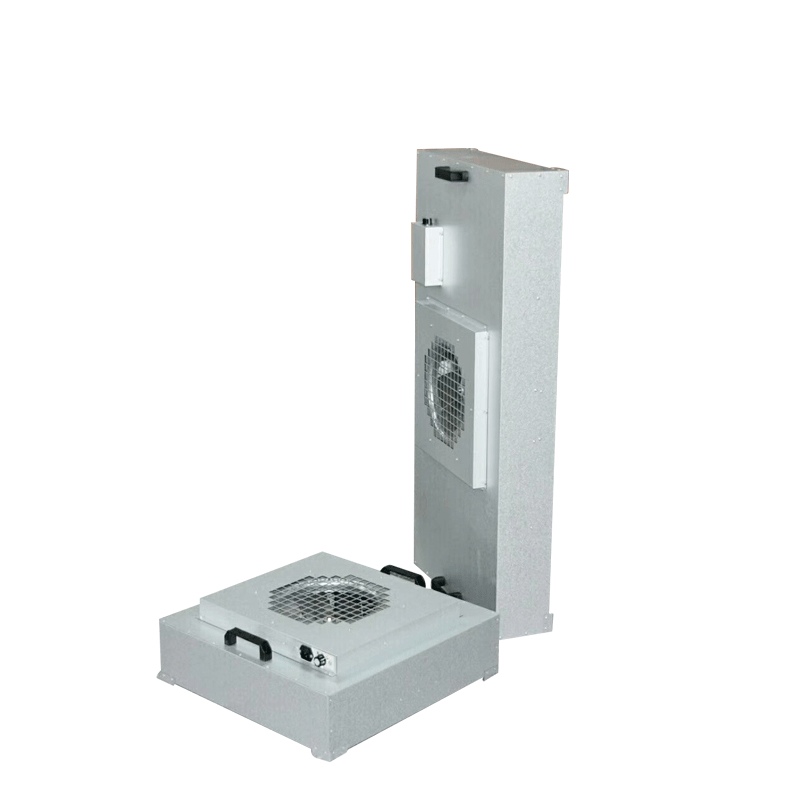

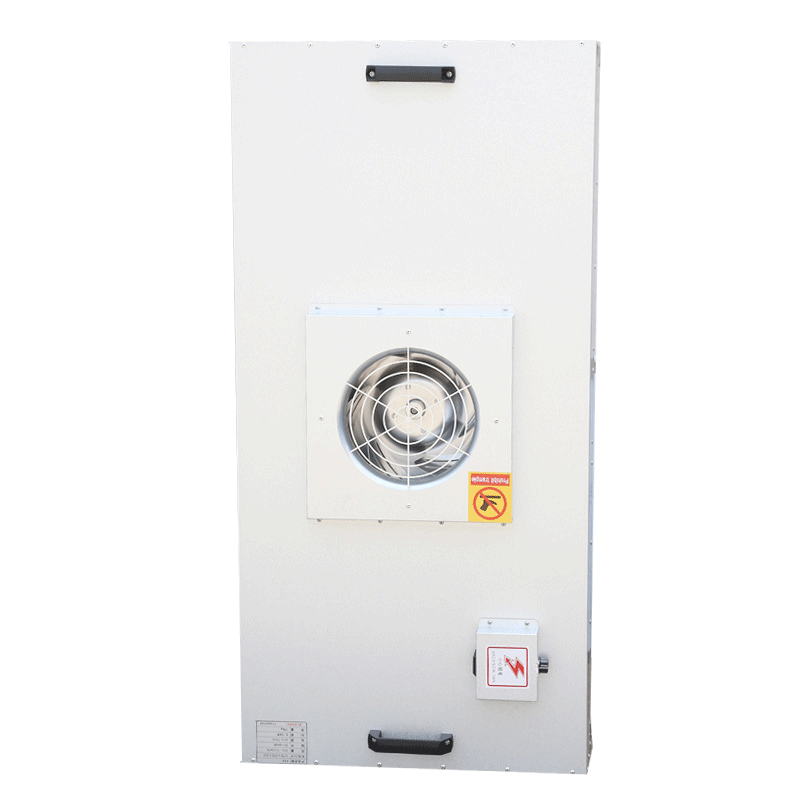

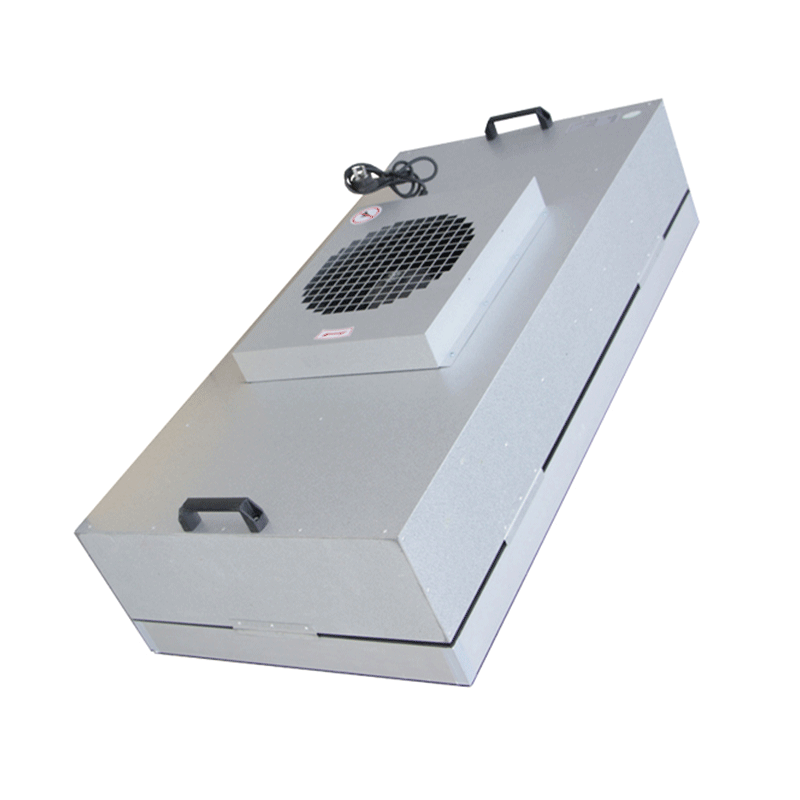

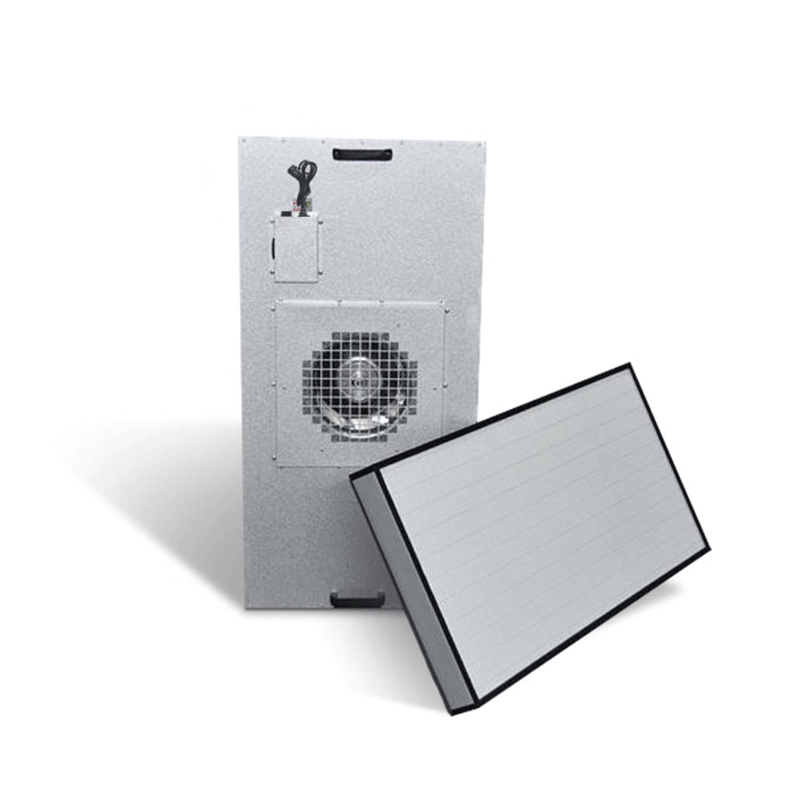

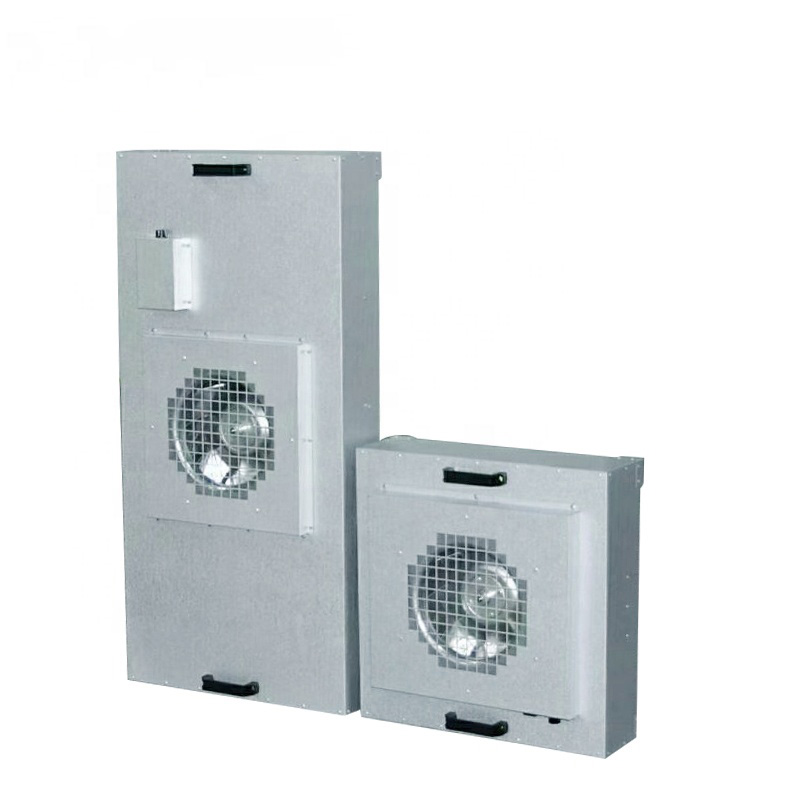

EC/AC motor HEPA H14 fan filter unit for dust free room
-
This product is divided into two types of AC and EC motors, with low energy consumption and low operating costs.
-
Suitable for various clean rooms from class 10000 to class 1.
-
A variety of different box materials can be selected, stainless steel, rust-proof aluminum plate, etc.
-
There are many ways to control the system, manual control, computer control, providing group control system.
DC/AC motor HEPA H14 fan filter unit for dust-free room
Product Description
| Model | FFU0606G/S/A1M-H/U | FFU0906G/S/A1M-H/U | FFU1206G/S/A1M-H/U | FFU1209G/S/A1M-H/U | FFU1212G/S/A1M-H/U | ||||||
| Size(mm) AC motor | Normal | 575×575×320 | 875×575×320 | 1175×575×320 | 1175×875×320 | 1175×1175×320 | |||||
|
Bottom loading |
575×575×370 | 875×575×370 | 1175×575×370 | 1175×875×370 | 1175×1175×320 | ||||||
|
Face wind speed |
H | S | H | S | H | H | H | ||||
| 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | |||||||
|
Machine residual external pressure（pa） |
50 | 120 | 50 | 120 | 50 | 120 | 50 | 120 | 50 | 120 | |
|
Standard working condition power consumption（W） |
80 | 150 | 90 | 160 | 110 | 180 | 210 | 220 | 250 | 260 | |
|
Maximum power consumption（W） |
AC motor |
180 | 130 | 230 | 150 | 250 | 280 | 320 | |||
|
Single noise dB(A) |
AC motor |
49 | 52 | 49 | 52 | 50 | 53 | 52 | 55 | 53 | 56 |
|
HEPA filtration efficiency |
99.995%(@0.3µm) / 99.9995%(@0.12µm) | ||||||||||
| HEPA SIZE(MM) | Normal | 570×570×70 | 870×570×70 | 1170×570×70 | 1170×870×70 | 1170×1170×70 | |||||
| Bottom loading | 570×570×110 | 870×570×110 | 1170×570×110 | 1170×870×110 | 1170×1170×110 | ||||||
|
Power supply |
AC single item,220V/50HV |
||||||||||
|
Way to control |
AC motor |
AC motor FFU can realize three-speed speed regulation, five-speed speed regulation, remote control and group control |
|||||||||
|
Box material |
Galvalume, aluminum, stainless steel（SUS304、SUS430、SUS201） | ||||||||||
The FFU group control system can centrally control and monitor a large number of FFUs.
Control FFU operation, stop, speed, and can monitor FFU status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, distinguish the authority of different operators.
• It can provide on- site layout view to visually display the FFU location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the FFU at the specified time (only computer support).
•You can record system logs, and you can view historical operations, equipment failures and other information (only supported by computers).
• Fast communication response speed, the status of 3000 FFUs can be inquired every minute, and the inquiry speed can be doubled by adding a communication interface.
• AC FFU and DC FFU can be mixed in one system, and the group control system provides a unified control interface.
• It can provide dual control functions. When using a computer as the main control terminal, the touch screen or LCD screen can be installed on site as a slave control terminal.
All control terminals can monitor and control the FFU.
• The control terminal can be connected with third-party systems such as firefighting and automatic control for data exchange, or control the FFU according to external input signals.
• Sensors such as wind speed and pressure difference can be added to the system, and the data can be displayed and monitored on the control terminal.
• Customized functions can be added according to customer needs.
