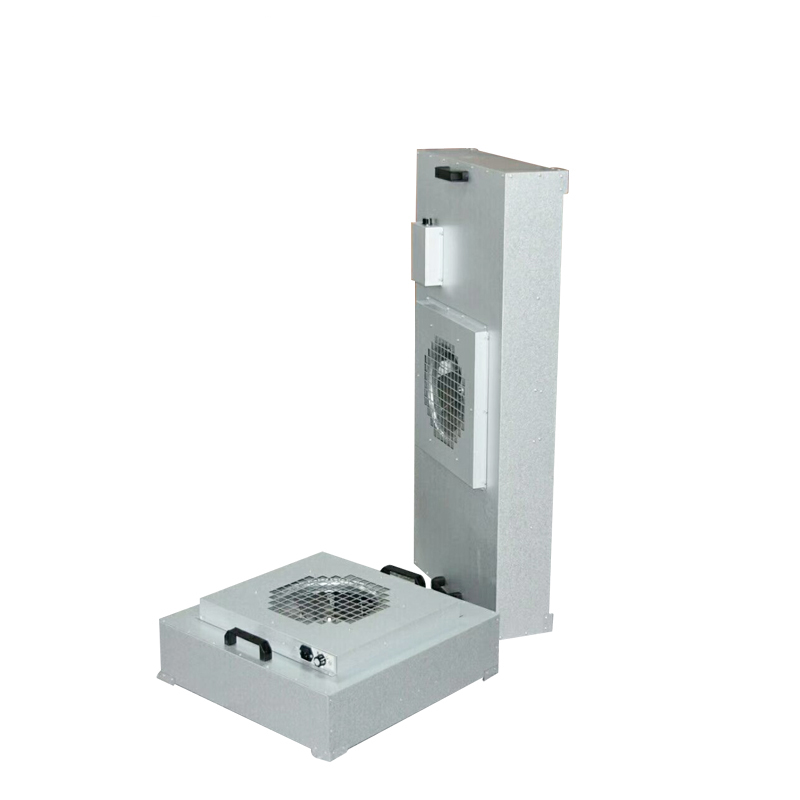

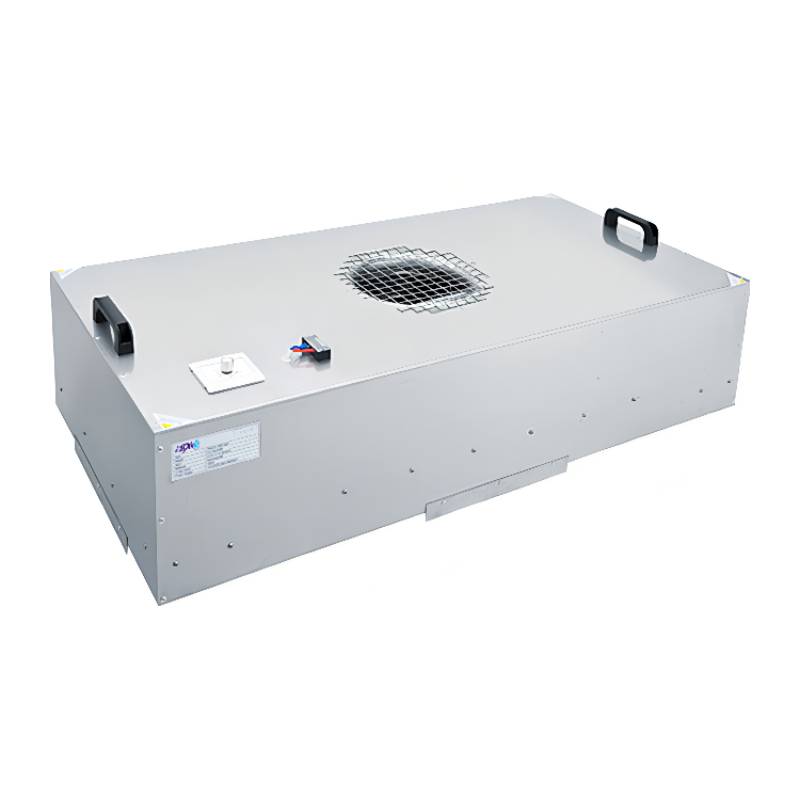

EC/AC motor ffu 1175*575 575*575 Clean room Fan filter unit
1. Our Fan Filter Unit FFU system is very versatile and flexible, capable of
supporting any Clean Room configuration, layout and
level of cleanliness. It can also be used in many other
applications, such as clean booths, clean workbenches,
and Clean Room tunnels.
2. Rustproof aluminium/Self-contain stainless steel / galval
-nium / powder coated steel FF is compact in size and
can be easily installed in Clean Room ceiling grids.
3. Low energy consumption reduces operating cost
4. Our FFU Fan Filter Unit comes with powerful blowers, which is extre-
mely reliable and quiet even under high static pressure.
5. Our FF are capable of achieving Class 10,000 through
Class 1 Clean Room condition.

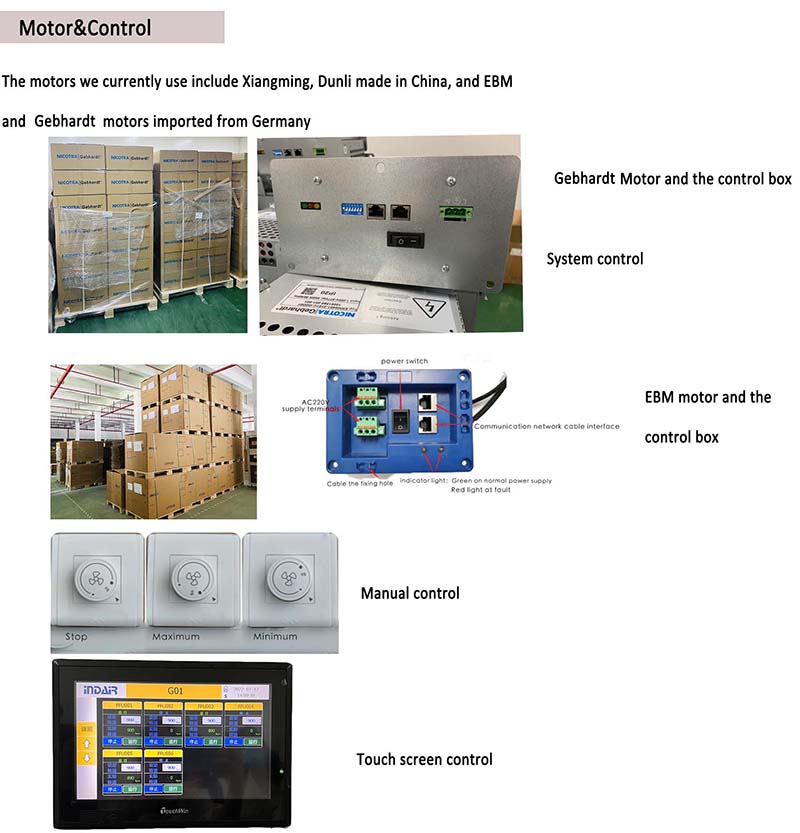

6. Control for our FFUs(Fan Filter Units) can be: 3 speed on device control,
3 speed remote control (with status indicator), computer
control,and main-sub controller system.

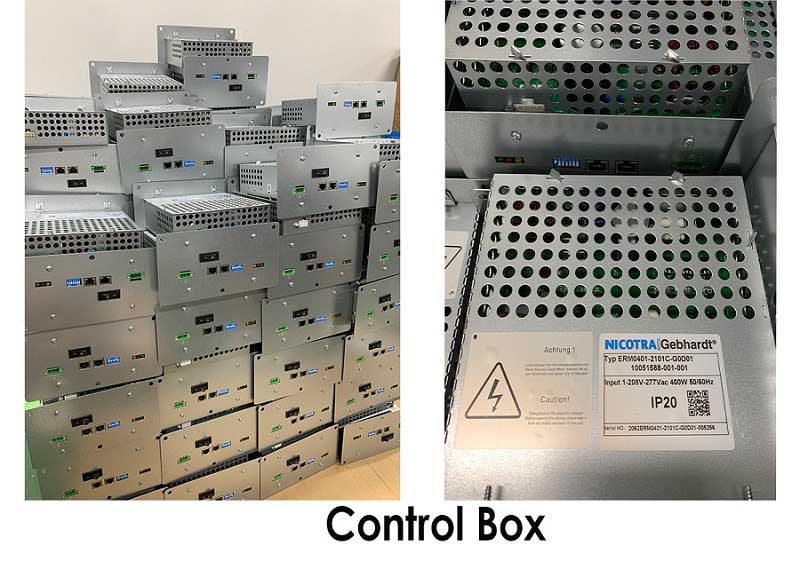

FFU CONTROL SYSTEM
PRODUCT PARAMETERS
• The FFU Fan Filter Unit group control system can centrally control and monitor a large number of FFUs. Control FFU operation, stop, speed, and can monitor FFU status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, distinguish the authority of different operators.
• It can provide on-site layout view to visually display the FFU location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the FFU at the specified time (only computer support).
EC/AC motor ffu 1175*575 575*575 Clean room Fan filter unit

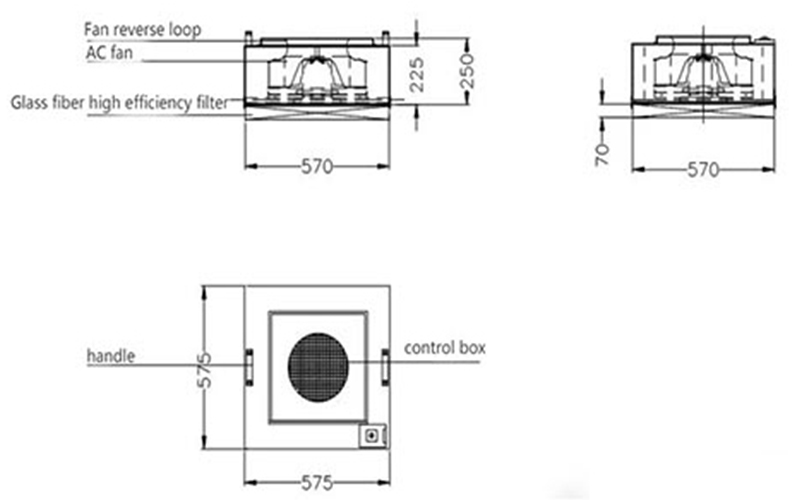

| Rated air volume | 500m³/h | Cabinet Specifications | 575*575*250mm |
| Cabinet material | Galvalume | Filter Specifications | 570*570*70mm |
| Filter Material | Glass Fiber | Filtration efficiency | 99.995% (@0.3μm) |
| Control Method | AC manual control | Initial Resistance of Filter |
≤120Pa(0.45m/s) |
| Power Supply | AC 220V 50Hz | Filter frame material | Aluminum |
| Input Power | ≤ 150W | Seal material | EVA (Double seal) |
| Noise | ≤55dB | Filter protection net | Double-sided steel mesh |
•
