SUS 304 clean room project stainless steel HEPA FFU fan filter unit

•  FFU is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities, or microenvironments by removing harmful airborne particles from recirculating air.

• Our FFU system is very versatile and flexible, capable of supporting any Clean Room configuration, layout, and level of cleanliness. It can also be used in many other applications, such as clean booths, clean workbenches, and Clean Room tunnels.
• Rustproof aluminum/Self-contain stainless steel/galvalnium / powder coated steel FFU is compact in size and can be easily installed in Clean Room ceiling grids.
• Low energy consumption reduces operating costs.
• Our FFU comes with powerful blowers, which are extremely reliable and quiet even under high static pressure.
• Our FFU is capable of achieving Class 10,000 through Class 1 Clean Room condition.
• Control for our FFUs can be 3-speed on device control, 3-speed remote control (with status indicator), computer control, and main-sub controller system.

These two interfaces are connected to the touchscreen network cable

The white switch is the address dial and is also used to connect the touch screen.

 We already connect the FFU to 220 V, without the filter, but the fan looks very weak

 The motor speed and wind speed can be adjusted. Since you chose touch screen control, you need to adjust it on the touch screen.

 I thought that your FFU had a motor, but we only see an electronic target connected to the fan

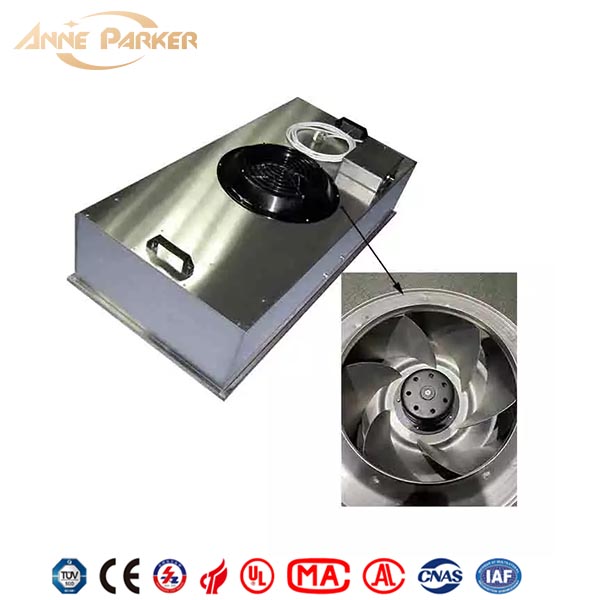

The motor is behind the fan, and the structure inside is like this.

The fan and the motor are connected.

 The fan starts but it looks like a very low speed or potency

The motor speed and wind speed can be adjusted. Since you chose touch screen control, you need to adjust it on the touch screen.

 We will test the FFU next week to know the output, but it looks too weak you get 0,45 m/s  outside the filter and 1.5 m away from the filter

The motor speed and wind speed can be adjusted. Since you chose touch screen control, you need to adjust it on the touch screen.  The wind speed is 0.35m/s when leaving the factory

FAQ

Q1: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.

Q2: Can you provide customized products?

A: We can customize the right size for you according to your actual needs.

Q3: What is your motor type?

A: We have EBM motor and China-made motor, and it included both DC and AC specifications .

Q4: How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
