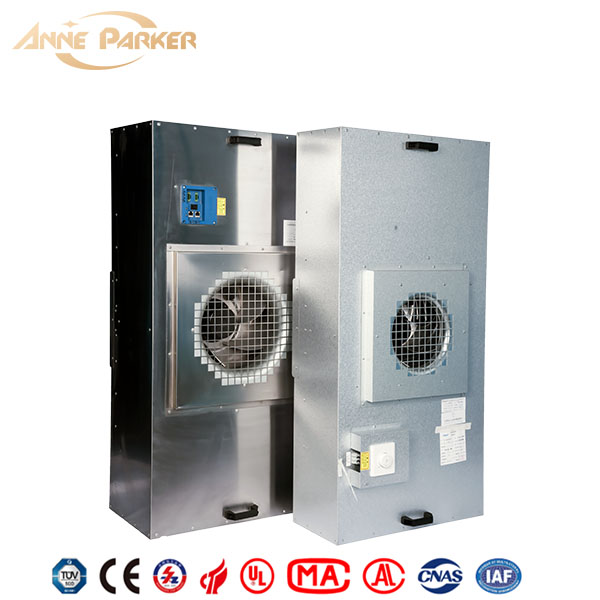

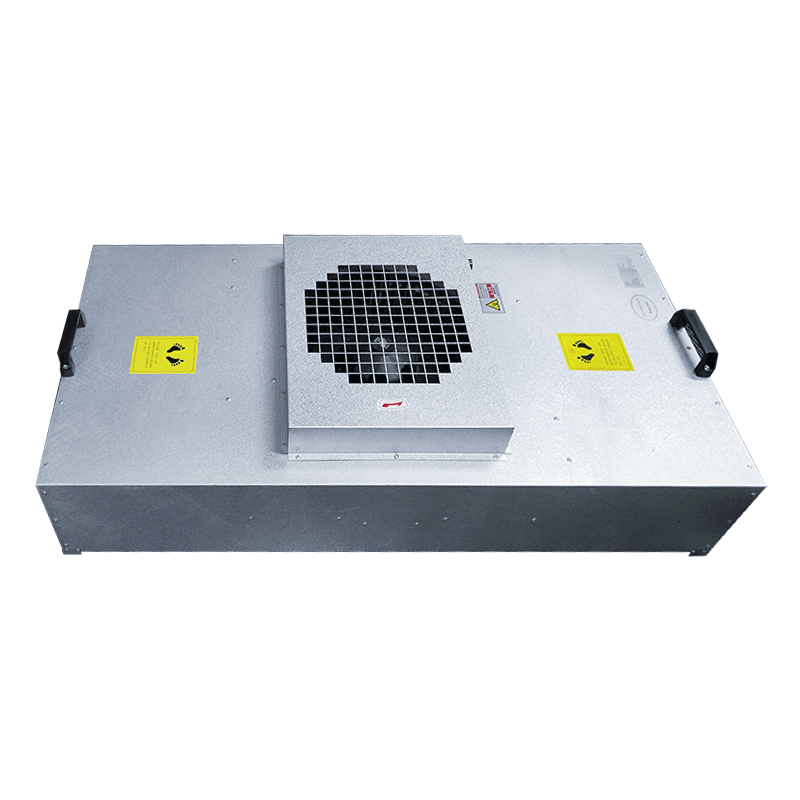

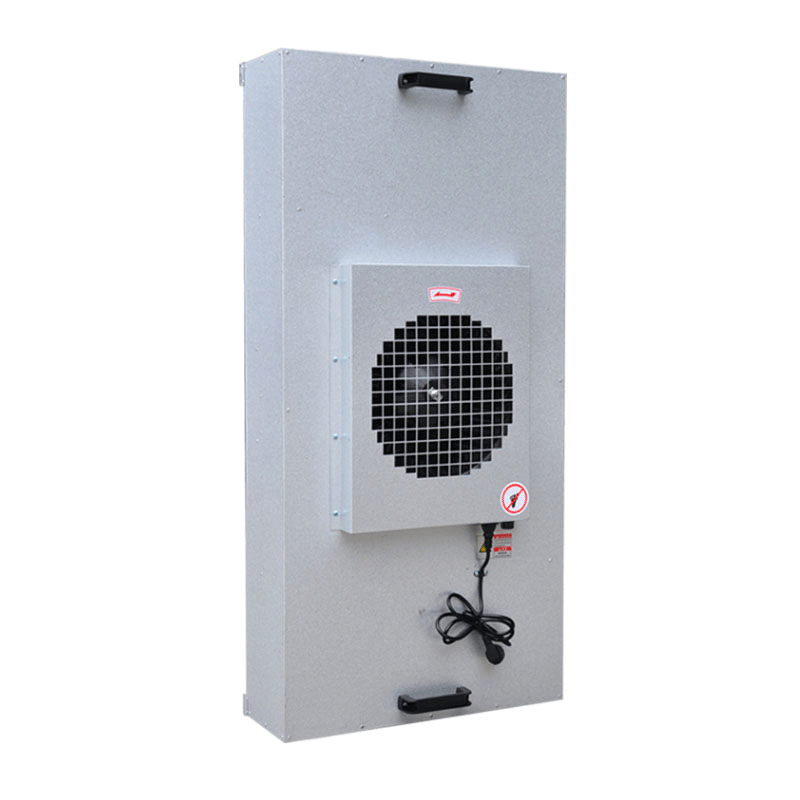

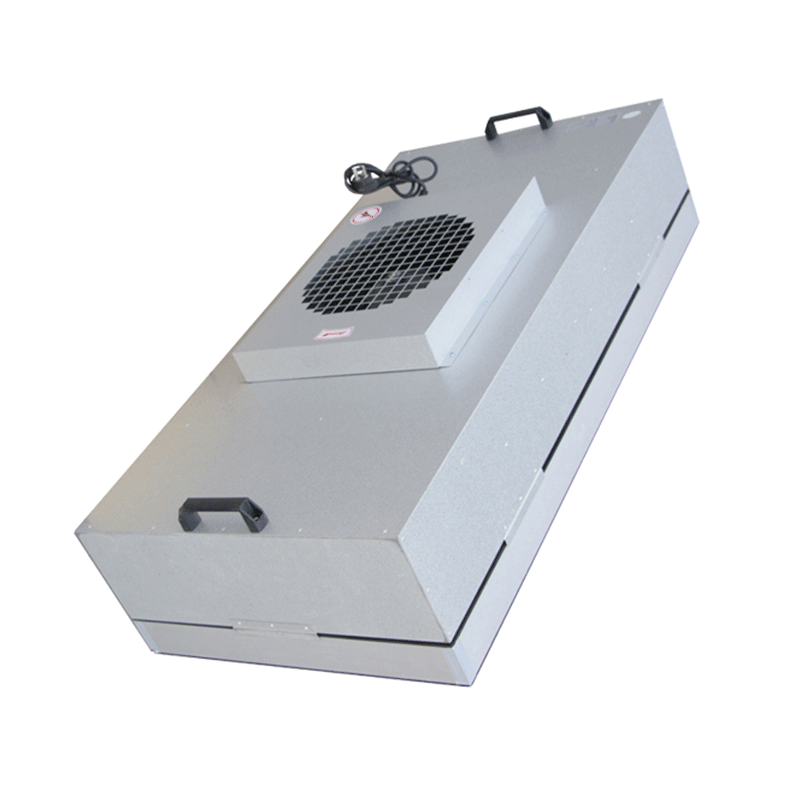

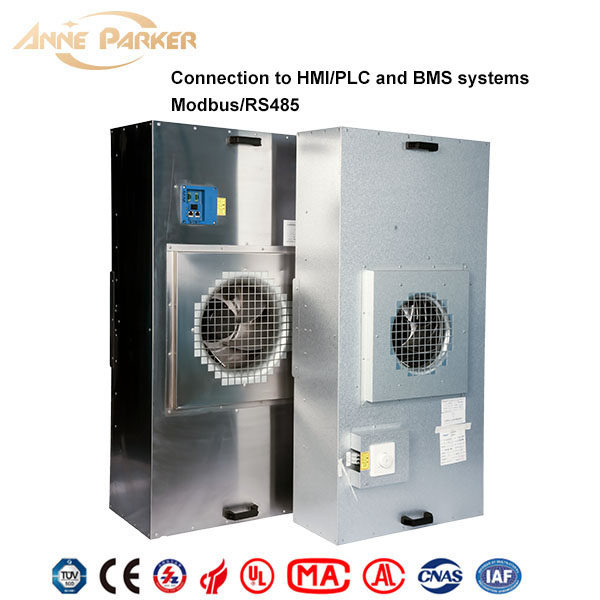

1175*575 clean room low noise ulpa fan filter unit
-
This product is divided into two types of AC and DC motors, with low energy consumption and low operating costs.
-
Suitable for various clean rooms from class 10000 to class 1.
-
A variety of different box materials can be selected, stainless steel, rust-proof aluminum plate, etc.
-
There are many ways to control the system, manual control, computer control, providing group control system.
Product Description
|
Model |
FFU0612G-AIU-S-14-I |
|

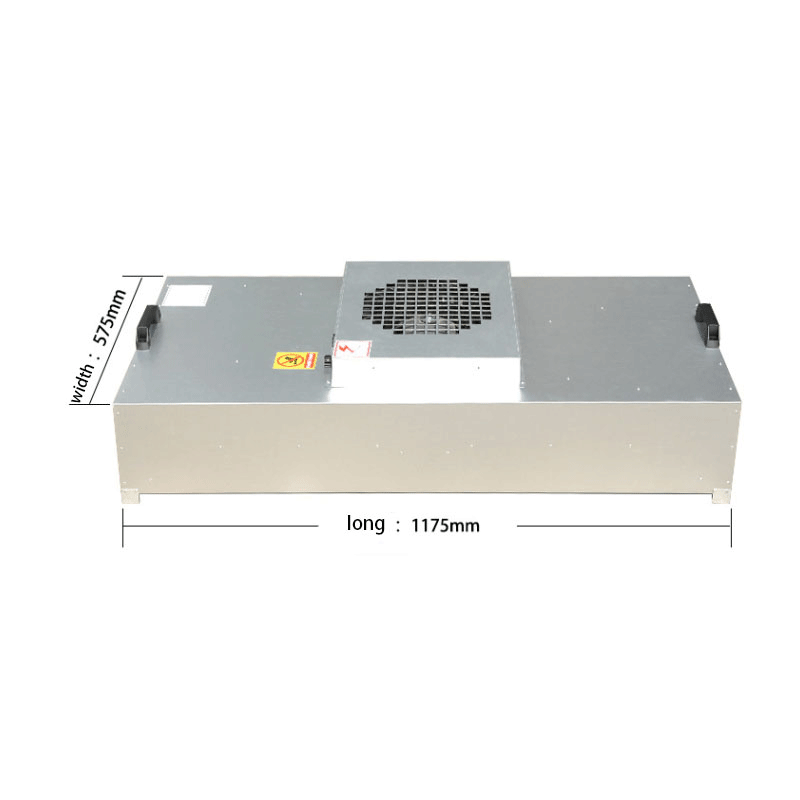

Dimensions (L×W×H) mm |
1175×575× (225+25) (without filter) |
|
Keel installation size |
1200*600mm |
|
Shell material |
0.8mm galvanized sheet |
|
Fan rated air volume |
1000m3/h |
|
Full pressure |
150Pa(1.5m below the FFU) |
|
Single noise |
≤54dB(A),(@0.45m/s wind speed, 1.5m below the FFU) |
|
Maximum power |
≤135W≤150W |
|
Fan Type/Brand |
Outer Rotor Centrifugal Fan/Avro |
|
Motor type |
Centrifugal fan (domestic brand) |
|
Insulation class |
Class B |
|
Protection class |
IP20 |
|
Filter size and material |
1170*570*70mm, glass fiber |
|
Filter connection |
self-weight seal |
|
Filtration efficiency |
99.995％（@0.3μm ） |
|
Initial resistance |
≤120Pa (0.45m/s) |
|
HEPA face mesh |
Stencil surface spray mesh |
|
HEPA seal |
EVA |
|
Way to control |
DC group control stepless speed regulation |
|
Power supply |
AC single phase 220V 50Hz |
|
Group control function |
1. Monitor the running status of FFU in real time. 2. There is a historical record of the running status of the FFU, which can be set to work mode, night mode, holiday mode, automatic switch, and can control the switch of FFU regularly. 3. The system can realize the control of starting, stopping, adjusting the motor speed, and adjusting the air volume of the FFU (single control and group control); real-time monitoring of the running status, speed value, and alarm display of the FFU. |

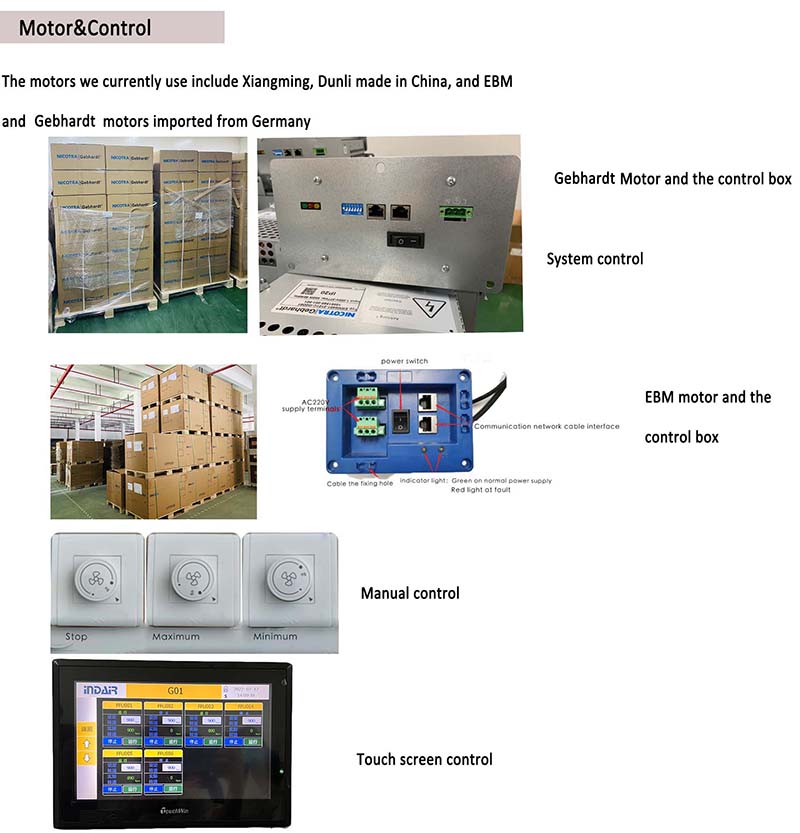

The FFU group control system can centrally control and monitor a large number of FFUs.
Control FFU operation, stop, speed, and can monitor FFU status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, distinguish the authority of different operators.
• It can provide on- site layout view to visually display the FFU location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the FFU at the specified time (only computer support).
•You can record system logs, and you can view historical operations, equipment failures and other information (only supported by computers).
• Fast communication response speed, the status of 3000 FFUs can be inquired every minute, and the inquiry speed can be doubled by adding a communication interface.
• AC FFU and DC FFU can be mixed in one system, and the group control system provides a unified control interface.
• It can provide dual control functions. When using a computer as the main control terminal, the touch screen or LCD screen can be installed on site as a slave control terminal.
All control terminals can monitor and control the FFU.
• The control terminal can be connected with third-party systems such as firefighting and automatic control for data exchange, or control the FFU according to external input signals.
• Sensors such as wind speed and pressure difference can be added to the system, and the data can be displayed and monitored on the control terminal.
• Customized functions can be added according to customer needs.
Product Details
Certifications
Cooperation Patners
FAQ
Q1: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.
Q2: Can you provide customized products?
A: We can customize the right size for you according to your actual needs.

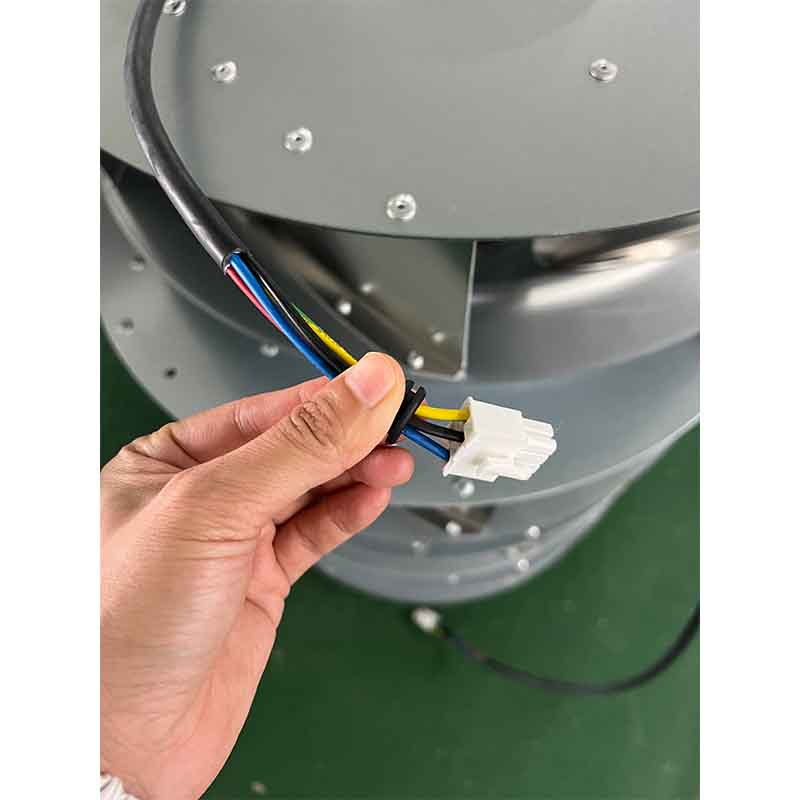

Q3: What is your motor type?
A: We have an EBM motor and a China-made motor, and it included both DC and AC specifications.
Q4: How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
