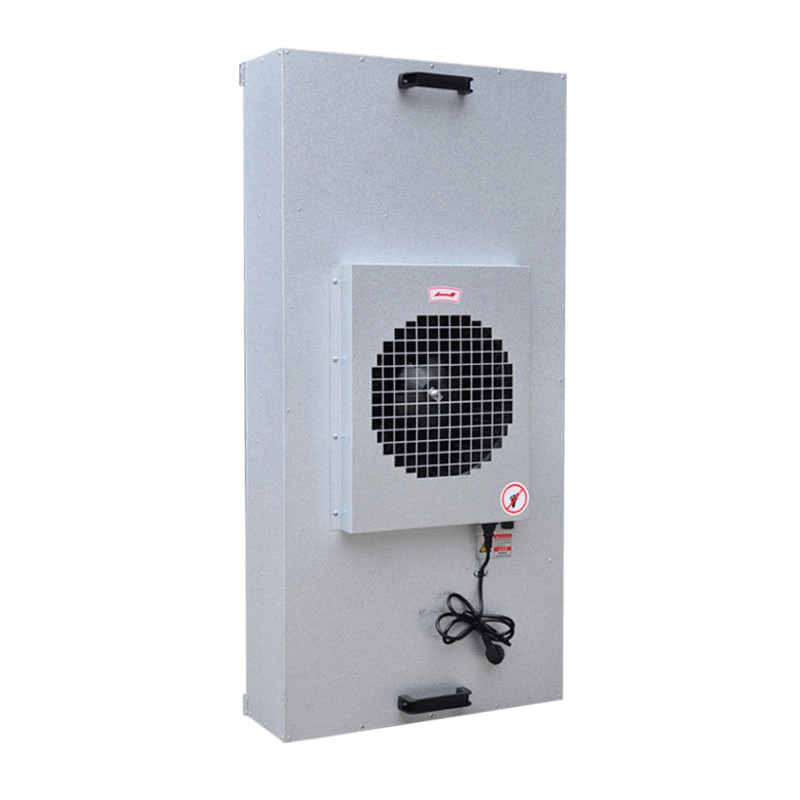

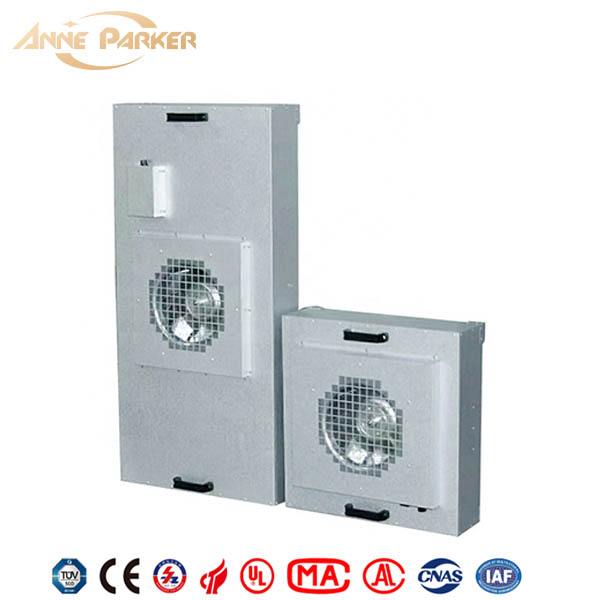

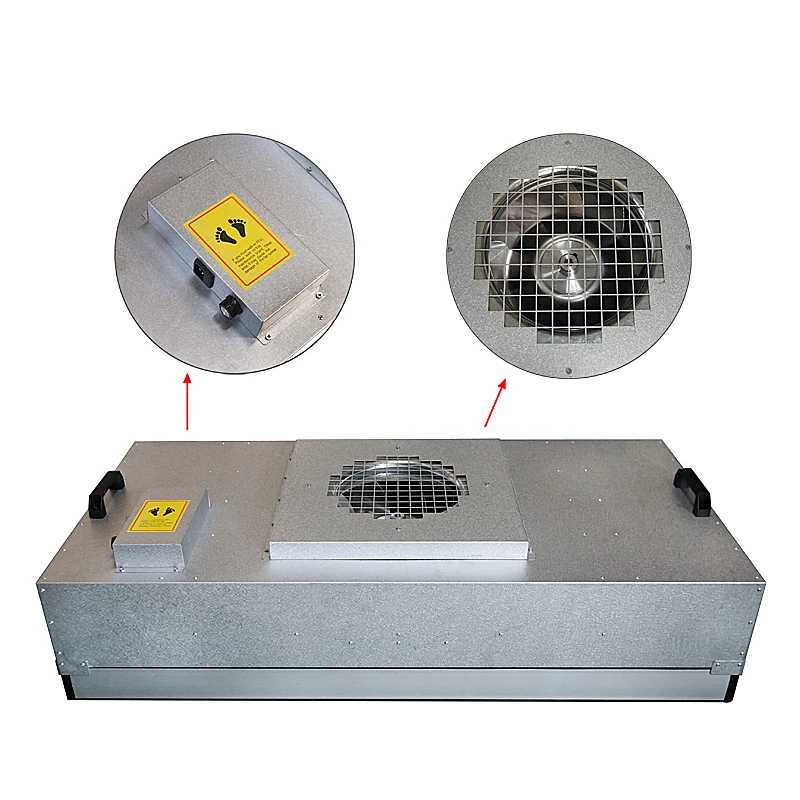

EC Motor Energy efficient ffu clean room fan filter unit installation
1. Our DC Motor Energy efficient ffu clean room fan filter unit installation is very versatile and flexible, capable of supporting any Clean Room configuration, layout and level of cleanliness. It can also be used in many other applications, such as clean booths, clean workbenches,and Clean Room tunnels.
2. Rustproof aluminium/Self-contain stainless steel / galvalnium / powder coated steel FF is compact in size and
can be easily installed in Clean Room ceiling grids.
3. Low energy consumption reduces operating cost
4. Our FFU comes with powerful blowers, which is extremely reliable and quiet even under high static pressure.
5. Our FF are capable of achieving Class 10,000 through Class 1 Clean Room condition.

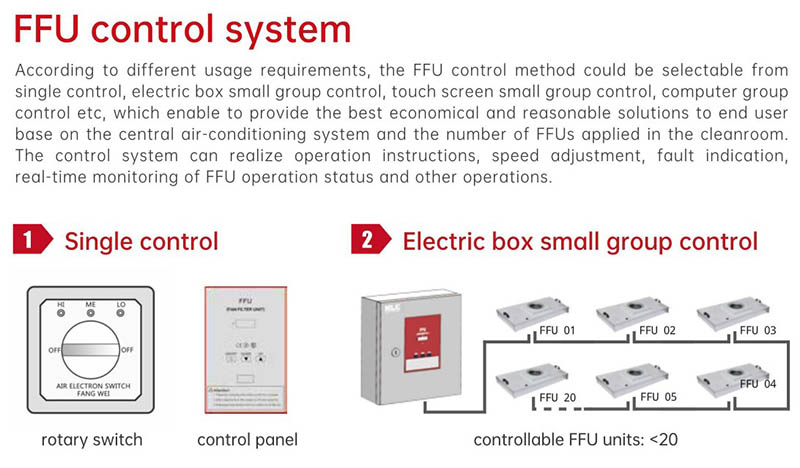

6. Control for our clean room FFUs can be: 3 speed on device control,3 speed remote control (with status indicator), computer control,and main-sub controller system.
DC Motor Energy efficient ffu clean room fan filter unit installation

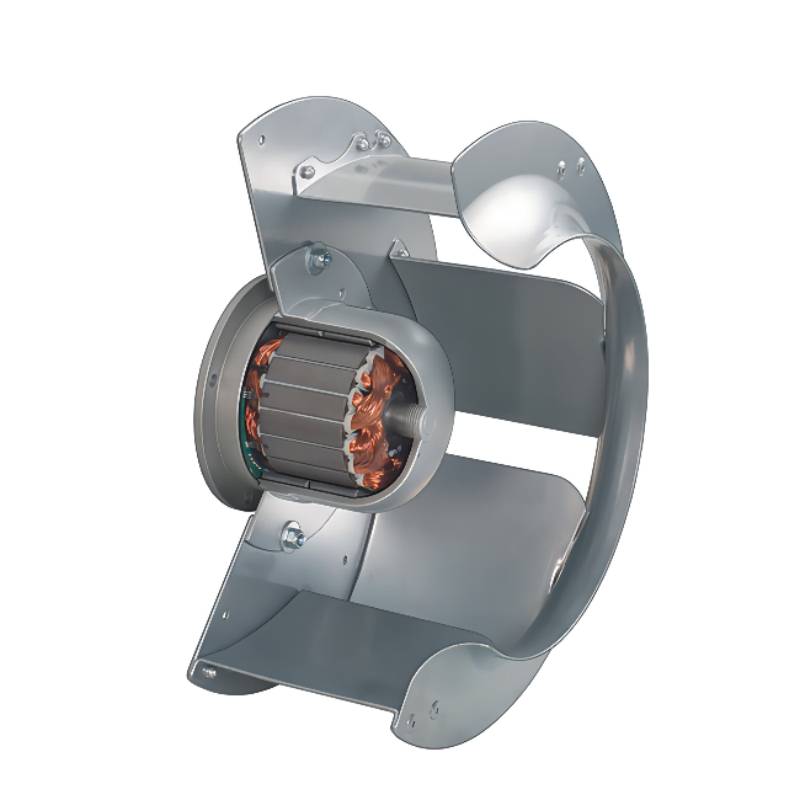

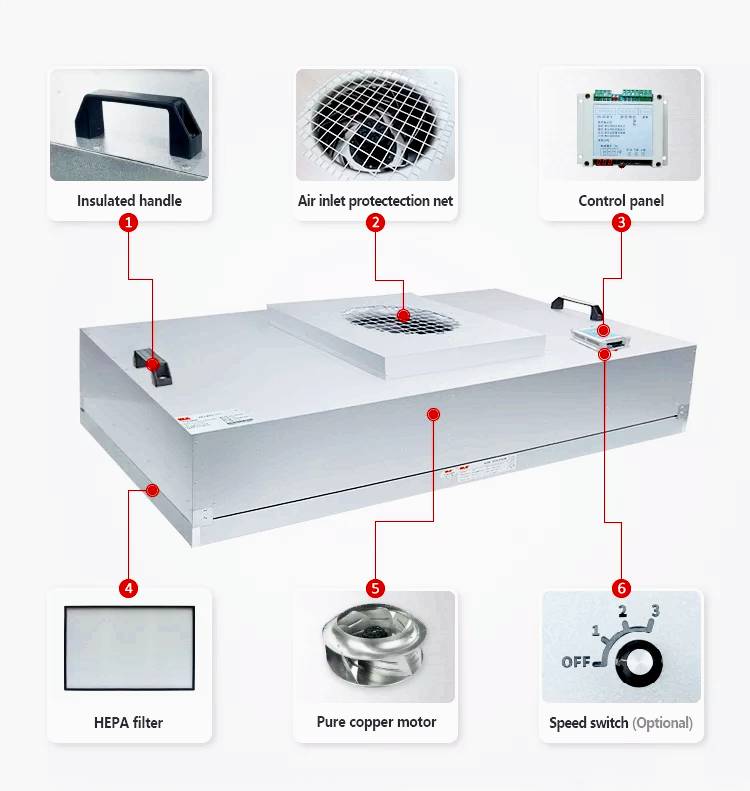

We have designed and developed the Energy efficient ffu clean room fan filter unit (FFU) to exactly meet the requirements of perfectly functioning clean rooms. The “heart“ of the FFU is the motor-impeller-unit. All components such as the air inlet nozzle, the impeller, the motor and the respective commutation unit for actuation of the motor are exactly matched to each other in every detail and therefore work in perfect harmony with each other in joint interaction ideally. And it is also a matter of: Solutions according to need for controlling and monitoring the FFU fan filter unit installation networks ensure simply operation and fan filter unit installation
|

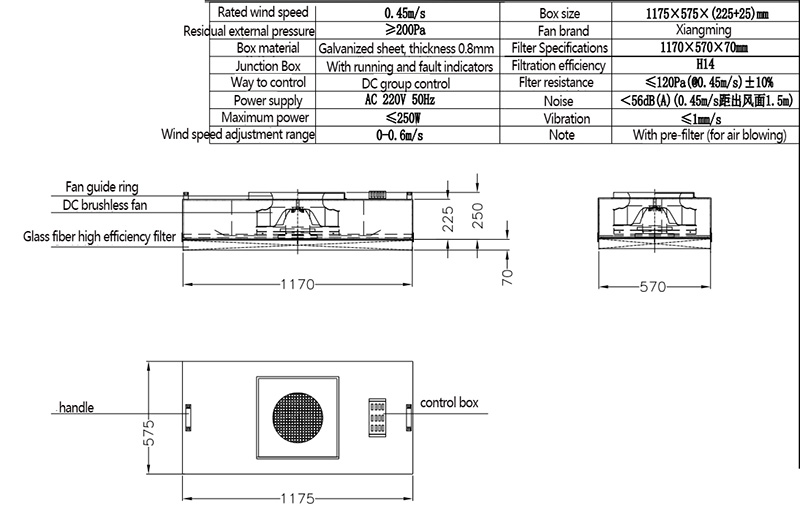

Model |
FFU0612G-ECU-H-H14-I |
|
Dimensions (L×W×H) mm |
1175×575× (225+25) (without filter) |
|
Keel installation size |
1200*600mm |
|
Shell material |
0.8mm galvanized sheet |
|
Fan rated air volume |
1000m3/h |
|
Full pressure |
250Pa(1.5m below the FFU) |
|
Single noise |
≤53dB(A),(@0.45m/s wind speed, 1.5m below the FFU) |
|
Maximum power |
≤100W≤350W |
|
Fan Type/Brand |
Centrifugal fan (Xiang Ming) |
|
Motor type |
Outer Rotor Centrifugal Fan/Avro |
|
Insulation class |
Class B |
|
Protection class |
IP20 |
|
Filter size and material |
1170*570*70mm, glass fiber |
|
Filter connection |
self-weight seal |
|
Filtration efficiency |
99.995％（@0.3μm ） |
|
Initial resistance |
≤120Pa (0.45m/s) |
|
HEPA face mesh |
Stencil surface spray mesh |
|
HEPA seal |
EVA |
|
Way to control |
DC group control stepless speed regulation (with manual five-speed control function) |
|
Power supply |
AC single phase 220V 50Hz |
|
Group control function |
1. Monitor the running status of FFU in real time. 2. There is a historical record of the running status of the FFU, which can be set to work mode, night mode, holiday mode, automatic switch, and can control the switch of FFU regularly. 3. The system can realize the control of starting, stopping, adjusting the motor speed, and adjusting the air volume of the FFU (single control and group control); real-time monitoring of the running status, speed value, and alarm display of the FFU. |
Note: 1. H is a high static pressure type, S is a standard type; 2. Energy efficient ffu clean room fan filter unit installation of the above fan filter unit specifications are not equipped with phase-effect filters, if you need to be equipped with coarse-efficiency filters, you need to add an explanation when ordering, and the height of the cleanroom FFU is also Will increase by 30mm accordingly.
3 Standard operating conditions refer to the operating conditions when the rated wind speed is 0.45m/s and the residual pressure outside the machine is 50Pa (120Pa). 4. The maximum power consumption is the power consumption when the Energy efficient ffu clean room fan filter unit installation air volume is at its maximum.price hepa fan filter unit.

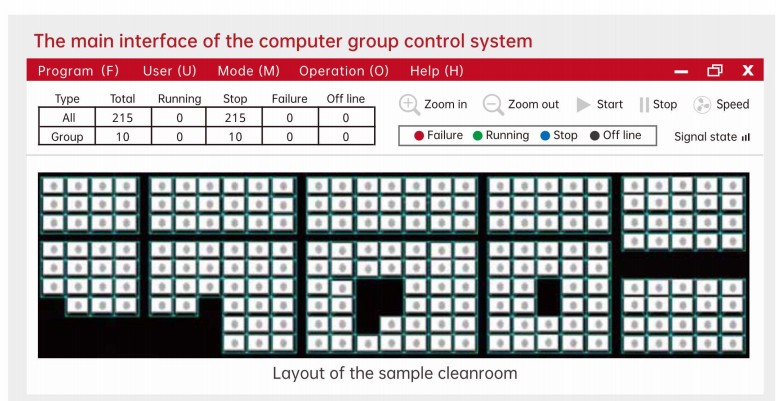

4 Computer group control system

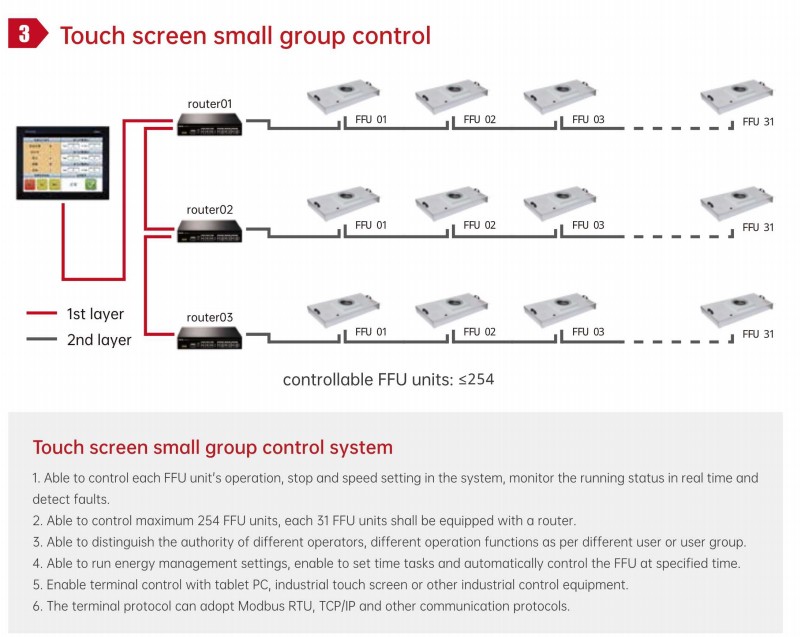

The cleanroom FFU fan filter unit installation group control system can centrally control and monitor many ENERGY EFFICIENT FFUs.
Control FFU clean room operation, stop, speed, and monitor FFU clean room status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, and distinguish the authority of different operators.
• It can provide an on-site layout view to visually display the FFU filter unit location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the FFU filter unit at the specified time (only computer support).
•You can record system logs, and you can view historical operations, equipment failures, and other information (only supported by computers).
• Fast communication response speed, the status of 3000 cleanroom FFUs can be inquired every minute, and the inquiry speed can be doubled by adding a communication interface.
• AC FFU and DC FFU can be mixed in one system, and the group control system provides a unified control interface.
• It can provide dual control functions. When using a computer as the main control terminal, the touch screen or LCD screen can be installed on site as a slave control terminal, and the computer and the slave control
All control terminals can monitor and control the FFU installation.
• The control terminal can be connected with third-party systems such as firefighting and automatic control for data exchange, or control the clean room FFU installation according to external input signals.
• Sensors such as wind speed and pressure difference can be added to the system, and the data can be displayed and monitored on the control terminal.
• Customized functions can be added according to customer needs.
、
