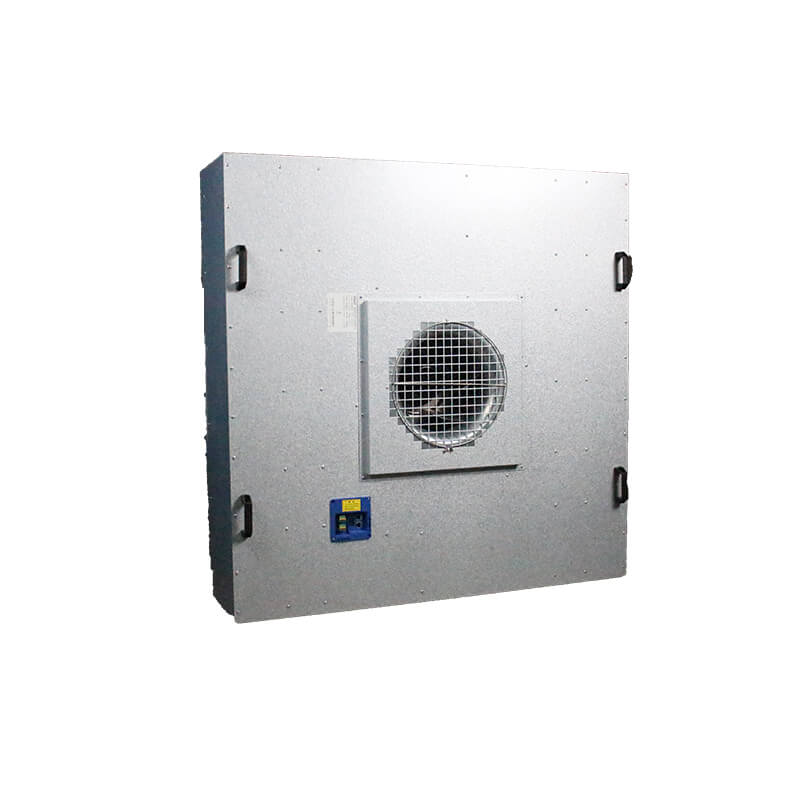

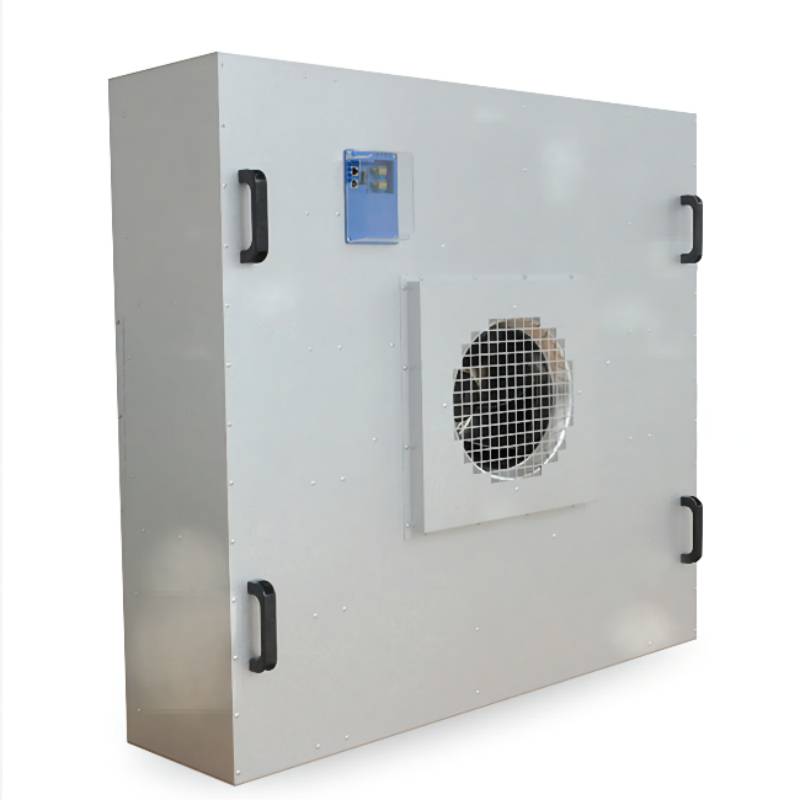

4*4 EC Motor FFU hepa fan filter unit for clean room
1. Our fan filter unit for clean room FFU system is very versatile and flexible, capable of supporting any Clean Room configuration, layout and level of cleanliness. It can also be used in many other applications, such as clean booths, clean workbenches,and Clean Room tunnels.
2. Rustproof aluminium/Self-contain stainless steel / galvalnium / powder coated steel FF is compact in size and can be easily installed in Clean Room ceiling grids.
3. Low energy consumption reduces operating cost
4. Our FFU comes with powerful blowers, which is extremely reliable and quiet even under high static pressure.
5. Our FF are capable of achieving Class 10,000 through Class 1 Clean Room condition.
6. Control for our clean room FFUs can be: 3 speed on device control,3 speed remote control (with status indicator), computer control,and main-sub controller system.
4*4 DC Motor FFU hepa fan filter unit for clean room
| 1 | Product Size | 4*4 |
| 2 | Dimensions(mm) | 1175*1175(1200*1200) |
| 3 | Height(mm) | 250+50 |
| 4 | Total Pressure (Pa)@0.45m/s | 250 |
| 5 | Energy consumption | 250-260 |
| 6 | Material | Stainless steel/ Galvalume |
| 7 | Power Supply | 220V 50Hz |
| 8 | Optimal Temperature | -20℃-80℃ |
| 9 | Face Velocity(m/s) | 0.35-0.45 |
| 10 | Filter/Thickness | Fiberglass |
| 11 | Efficiency | H13-U17 |
| 12 | External Static Pressure (Pa) | 90 |
| 13 | Noise Level dB | 50-53 52-55 55-57 |
| 14 | Motor Type | EBM |
| 15 | Way control | Group control |
Note:
- H is a high static pressure type, S is a standard type;
- Clean room fan filter unit for clean room of the above specifications are not equipped with phase-effect filters, if you need to be equipped with coarse-efficiency filters, you need to add an explanation when ordering, and the height of the cleanroom fan filter unit for clean room is also Will increase by 30mm accordingly.
- 3 Standard operating conditions refer to the operating conditions when the rated wind speed is 0.45m/s and the residual pressure outside the machine is 50Pa (120Pa). 4. The maximum power consumption is the power consumption when the cleanroom fan filter unit for clean room air volume is at its maximum.
FFU CONTROL SYSTEM

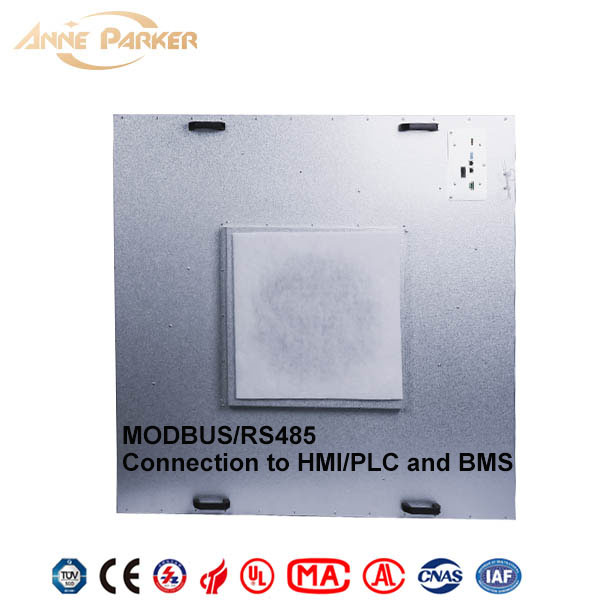

The cleanroom fan filter unit for clean room group control system can centrally control and monitor a large number of fan filter unit for clean rooms.
Control cleanroom fan filter unit for clean room operation, stop, speed, and can monitor fan filter unit for clean room status and faults.
• The control terminal has a variety of forms such as computers, touch screens, LCD screens, etc. to choose from.
•Support three levels of password protection, distinguish the authority of different operators.
• It can provide on-site layout view to visually display the fan filter unit for clean room filter unit location and status for easy identification. (LCD screen does not support).
• You can set timed tasks to automatically control the fan filter unit for clean room filter unit at the specified time (only computer support).
•You can record system logs, and you can view historical operations, equipment failures and other information (only supported by computers).
• Fast communication response speed, the status of 3000 cleanroom fan filter unit for clean rooms can be inquired every minute, and the inquiry speed can be doubled by adding a communication interface.
• AC fan filter unit for clean room and DC fan filter unit for clean room can be mixed in one system, and the group control system provides a unified control interface.
• It can provide dual control functions. When using a computer as the main control terminal, the touch screen or LCD screen can be installed on site as a slave control terminal, and the computer and the slave control
All control terminals can monitor and control the fan filter unit for clean room.
• The control terminal can be connected with third-party systems such as firefighting and automatic control for data exchange, or control the fan filter unit for clean room according to external input signals.
• Sensors such as wind speed and pressure difference can be added to the system, and the data can be displayed and monitored on the control terminal.
• Customized functions can be added according to customer needs.
Our company developed Fan Filter Unit (FFU) systems have proven to be very successful and popular among our customers. Nowadays, FFU is one of the quietest and most cost effective system in the market.
From simple speed controller for a single standalone FFU to complex controlling and monitoring system for large clean rooms, we offer a vast range of deesigns and configuration in our business range.
