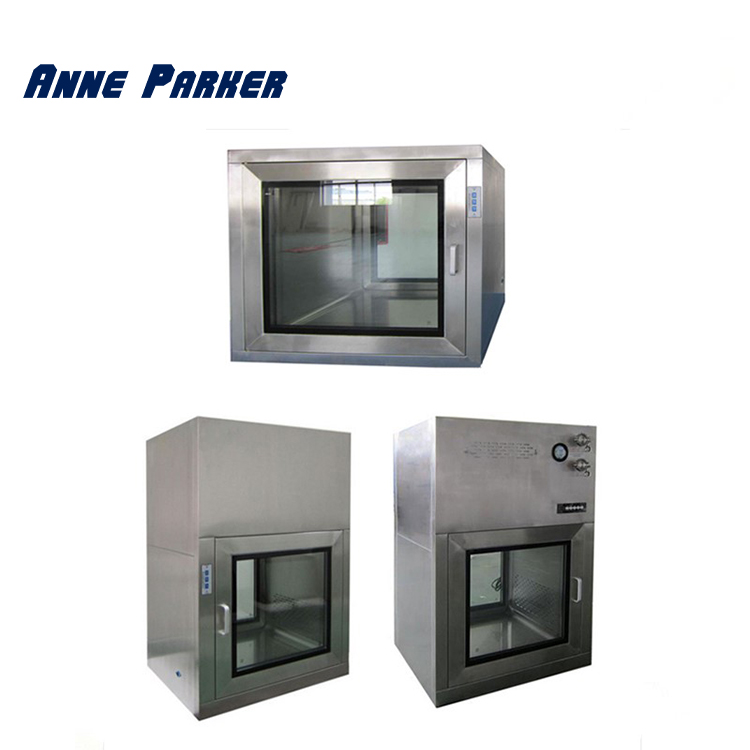

Dynamic & Static Pass Box
Product Attributes :
1: Made of stainless steel plate
2: Electromagnetic interlocking system or mechanical interlocking system
3: HEPA filter H14 air supply and exhaust filter
4: Easy to clean and integrate
5: All kinds of non-standard products can be customized
Optional accessories: intercom, germicidal lamp and other related functional accessories
Product Description

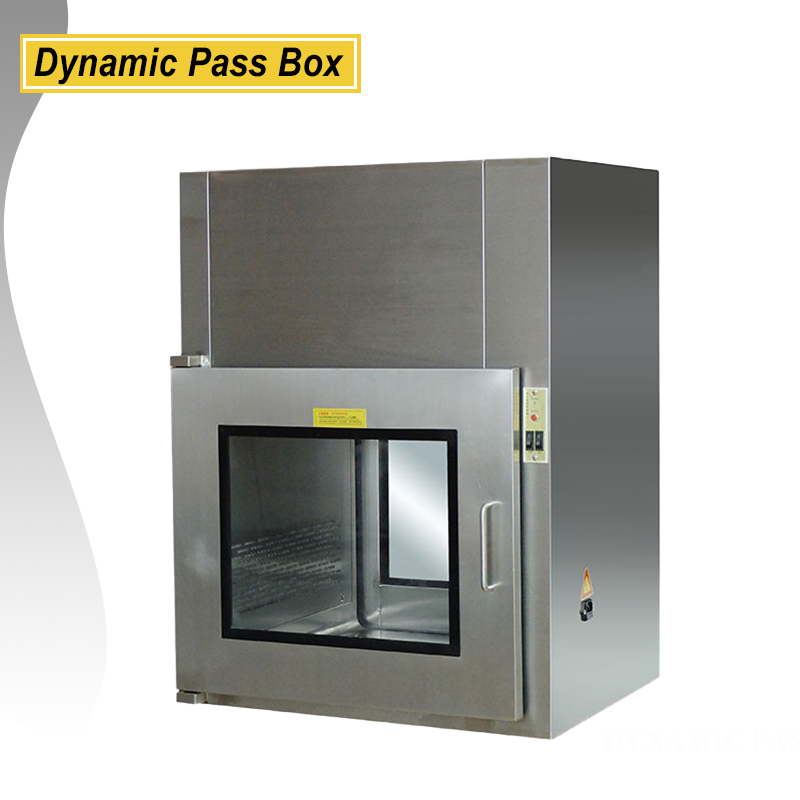

The Dynamic Pass Box, also called Transfer Hatch or Pass-through,the device is an auxiliary equipment of a clean room.
which is mainly used for goods transfer between clean areas, or clean areas and non-clean areas, thus reducing
The frequency of opening doors and lowering the risks of cleanroom contamination.
Pass Box clean room Technical Parameter ：
| 1 | Motor | 310# | 1 set | XM |
| 2 | UV Lamb | 460mm | 1 pc | KX |

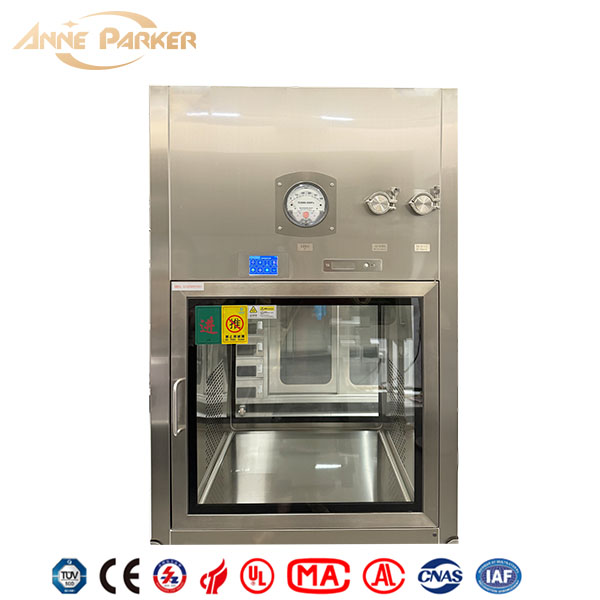

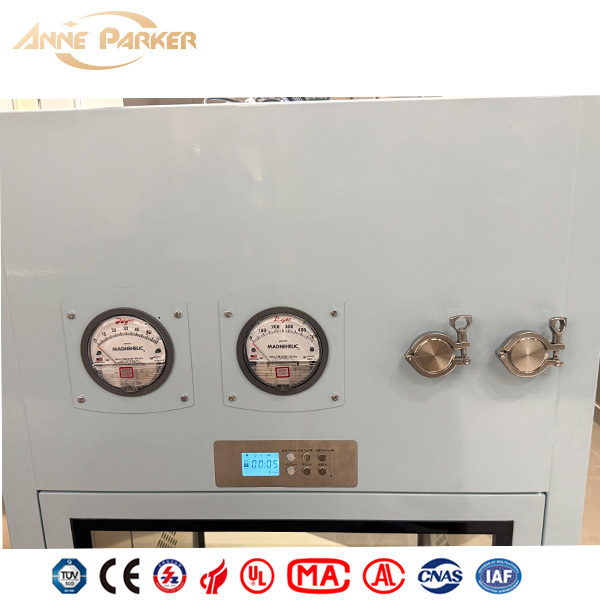

| 3 | Pressure gauge | 0-500Pa | 1 set | Duwei |
| 4 | Injection port | 6-point clamp | 1 set | SS304 |
| 5 | Test Port | 6-point clamp | 1 set | SS304 |
| 6 | Gel Seal Hepa Filter | H14 | 1 set | AN |
| 7 | Control panel | CLCDC | 1 set | AN |
| 8 | SS 304 Handle | SUS304 | 2 sets | AN |
| 9 | Tempered glass | 5.0mm | 4 pcs | AN |

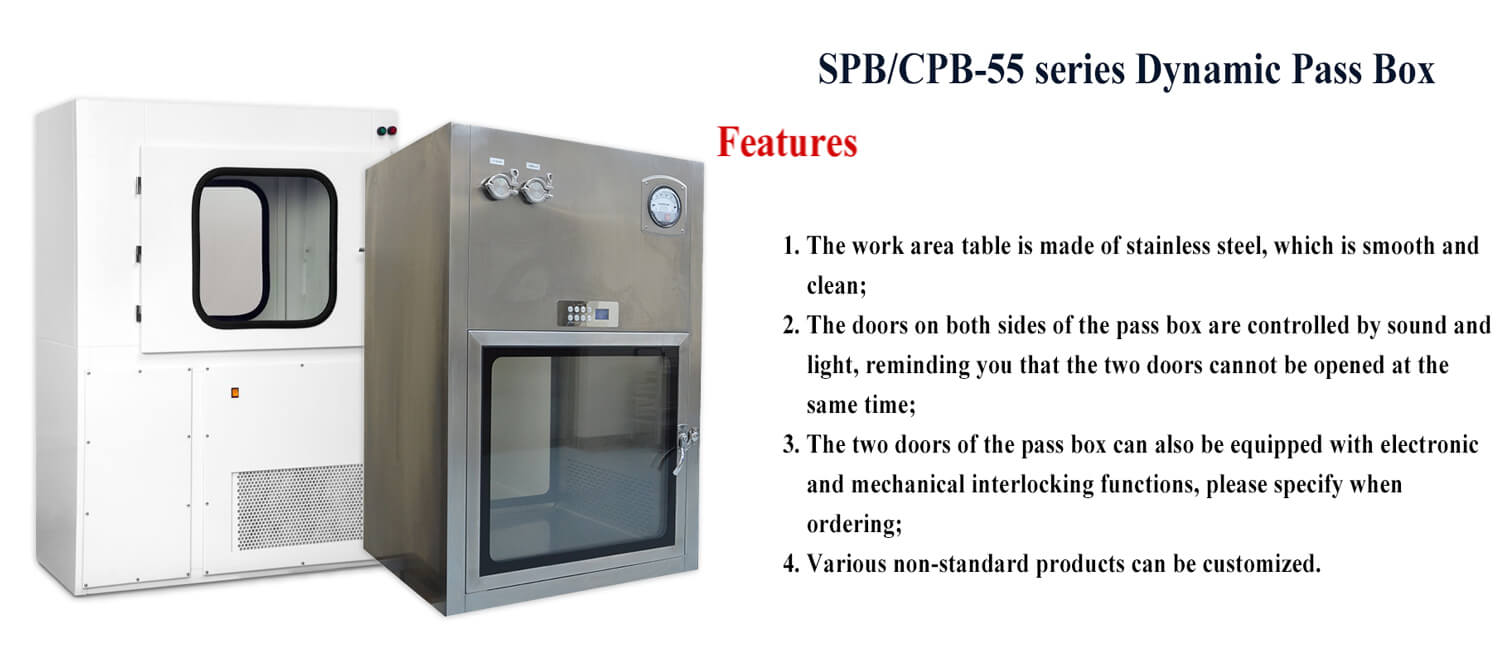

Stainless Steel Dynamic pass-through box clean room Features

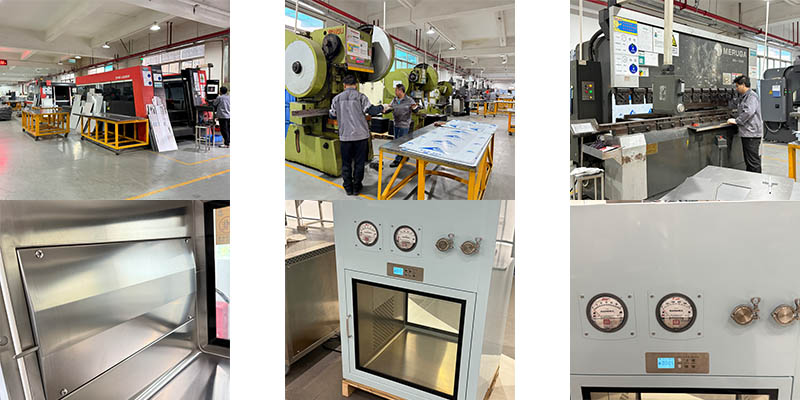

- The box body is formed by bending and welding ordinary thin steel plates, and the surface is treated with baked paint.

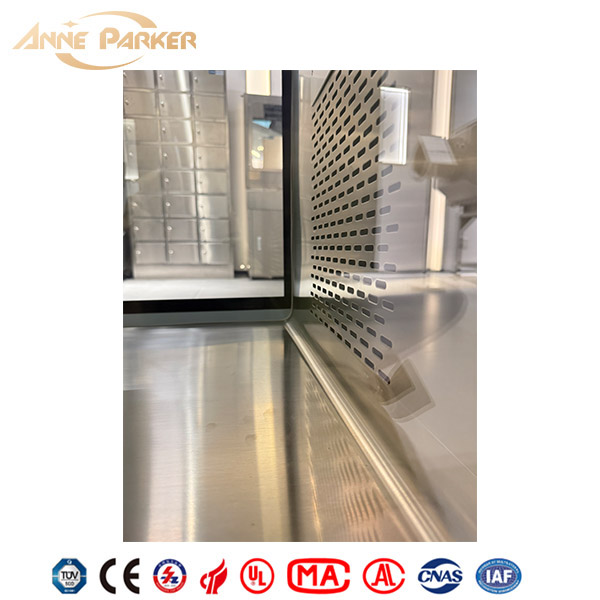

- The work surface is made of a stainless steel plate, smooth and clean.
- 2. All stainless steel types can be made according to user needs. It can also be equipped with UV lamps,
- electronic interlocking, mechanical interlocking, and other functions.
- PB▢-Universal pass window
- PB▢-Electronic interlock transfer window
- PB▢-Mechanical interlock transfer window
- PB▢- UV lamp Pass through box cleanroom
- PB▢-Electronic interlock with UV lamp cleanroom pass box
Note: ▢- for various specifications
Stainless Steel Dynamic Pass Box Advantages:

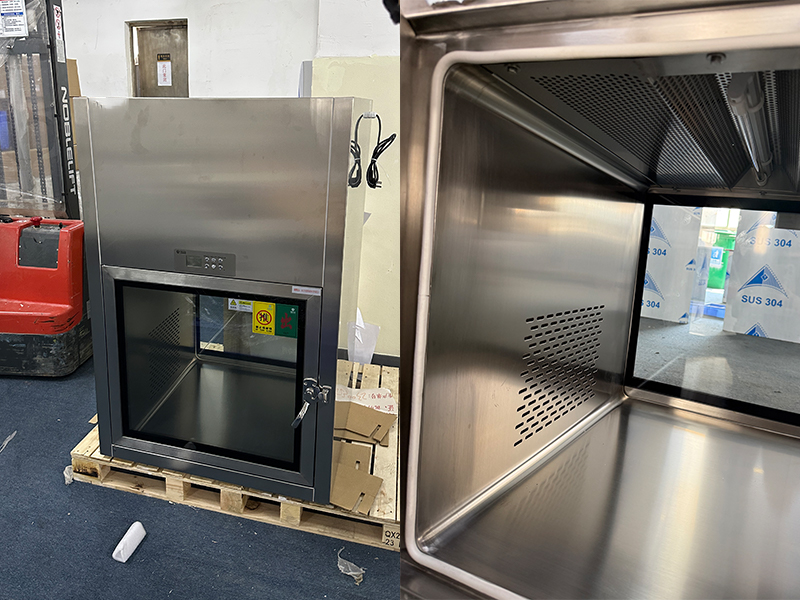

- The pass box is made of SUS 304 stainless steel or a power-coated steel plate
- Top air supply with H14 HEPA Filter (99.995%~99.999%@0.3um), reach up to ISO-5 (Class 100)
- Double doors are interlocking to prevent cross-contamination
- External flush surface and ace corner ensure no dust collection and easy cleaning
- Dedicated sanitary rubber strip to ensure airtightness
- Equipped with UV light
- Safe structural design, easy installation
If you are intereated in,Welcome contact us!
```
