Air Shower Pass Box cleanroom pass thru manufacturer

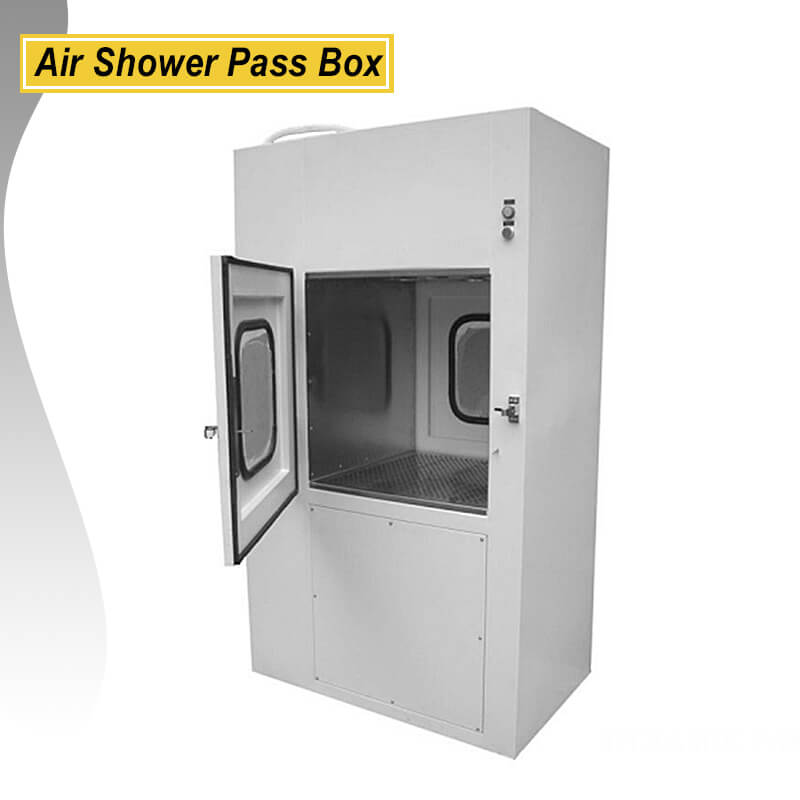

cleanroom pass thru acts a miniature air shower for items instead of personnel. An air shower pass box is larger

than a traditional pass box, but provides the additional benefit of spraying items in the pass box with high-speed jets of air to blow away unwanted particles.

Our air shower pass boxes are equipped with many of the same features as our PB series of air showers.

Features :

The principle of the air shower pass box is similar to that of the clean pass box, except that the clean airflow

filtered by the high-efficiency filter is sprayed onto the goods from all directions by the rotatable nozzle, and the

dust particles are quickly and effectively removed, to achieve the best blowing effect. , The wind speed of the nozzle

outlet can reach more than 20m/s, the highest can be 25m/s, and the noise is less than or equal to 65Db. Therefore,

the clean air shower pass box has better performance than the ordinary pass box.

• PB-▢-Universal pass window
• PB-▢-E electronic interlock transfer window
• PB-▢-M mechanical interlock transfer window
• PB-▢-U belt UV lamp transfer window
• PB-▢-EU electronic interlock with UV lamp transfer window
• PB-▢-MU mechanical joint with UV lamp transfer window

Note: ▢- for various specifications

Before placing an order, Please Confirm the Following Matters:

1. The size of the items to be passed determines whether to pass the internal size of the pass box.

2. The transfer direction of the pass box is recommended to use a self-cleaning pass box from low cleanliness to high cleanliness. Static pass box is recommended for reverse transfer or level transfer.

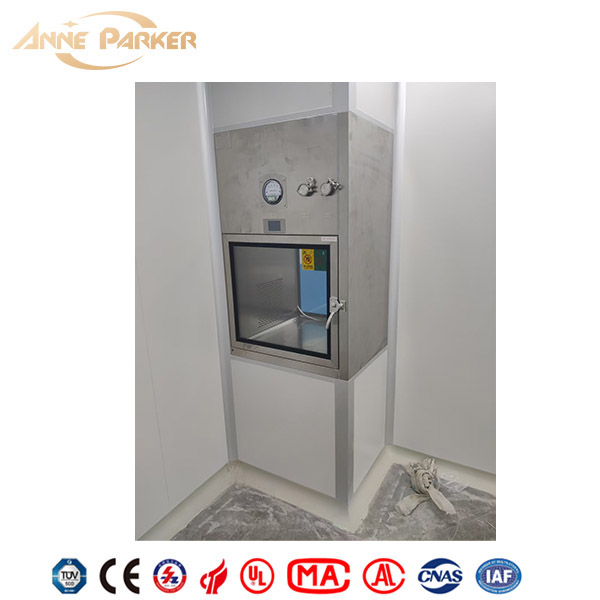

3. The installation position of the pass box, whether there are obstacles, walls or doors and windows nearby. Confirm the opening direction according to the principle of convenient opening and convenient retrieval. In addition to the following four, you can also choose a 90-degree corner to open the door;

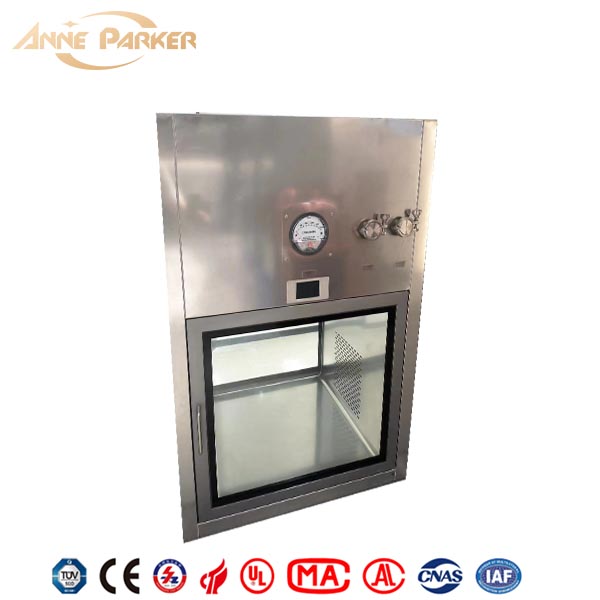

4. Pass box material: all stainless steel SUS304 is recommended;

5. If you use a cart to enter, you can choose a floor-to-ceiling pass box. Other pass boxes should also consider the installation height to facilitate retrieval.

If you are interested in, welcome to contact us!
