PRODUCT

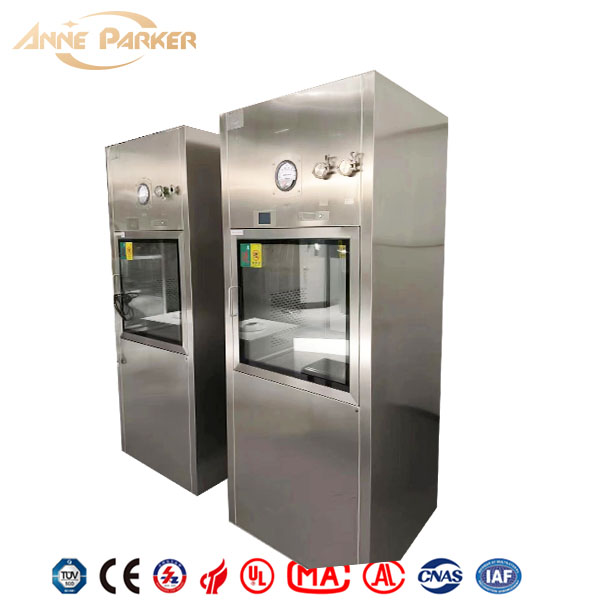

Pass through box clean room laboratory
Air showing pass box is designed according to the type of air shower, the blower quickly blows the air through the high efficiency filter into clean air, clean air is sprayed out of the stainless steel spray after the airflow speed of up to 20m/s or more, which can effectively and quickly remove the dust particles attached to the surface of the object. After circulating the air passes through the initial efficiency filter double filtration and purification effect is more significant and usability is strong.
Pass through box laboratory clean room

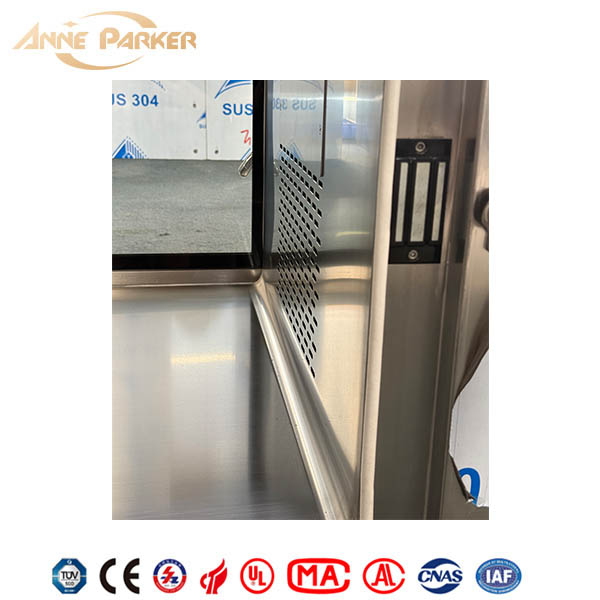

1. Electromagnetic interlock
2. Automatic blowing
3. Gel-seal HEPA Filter H14(EN1822)
4. Motor：310
5. Air Speed: 0.36-0.54m/s
6. Box material: 1.2mm/304 stainless steel plate, natural sanding surface
7. Inner Material: 1.2mm/304 stainless steel plate, natural sanding surface
8. The operation panel must display the technical functions of blowing time and cumulative sterilization time.
The technical time function can only be seen by clicking on the query in the operation interface. Provide product instructions.
9. Power: 220V/50Hz 0.3KW
Optional accessories:
1. Barometer
2. Intercom device
3. Ultraviolet lamp
4. Roller

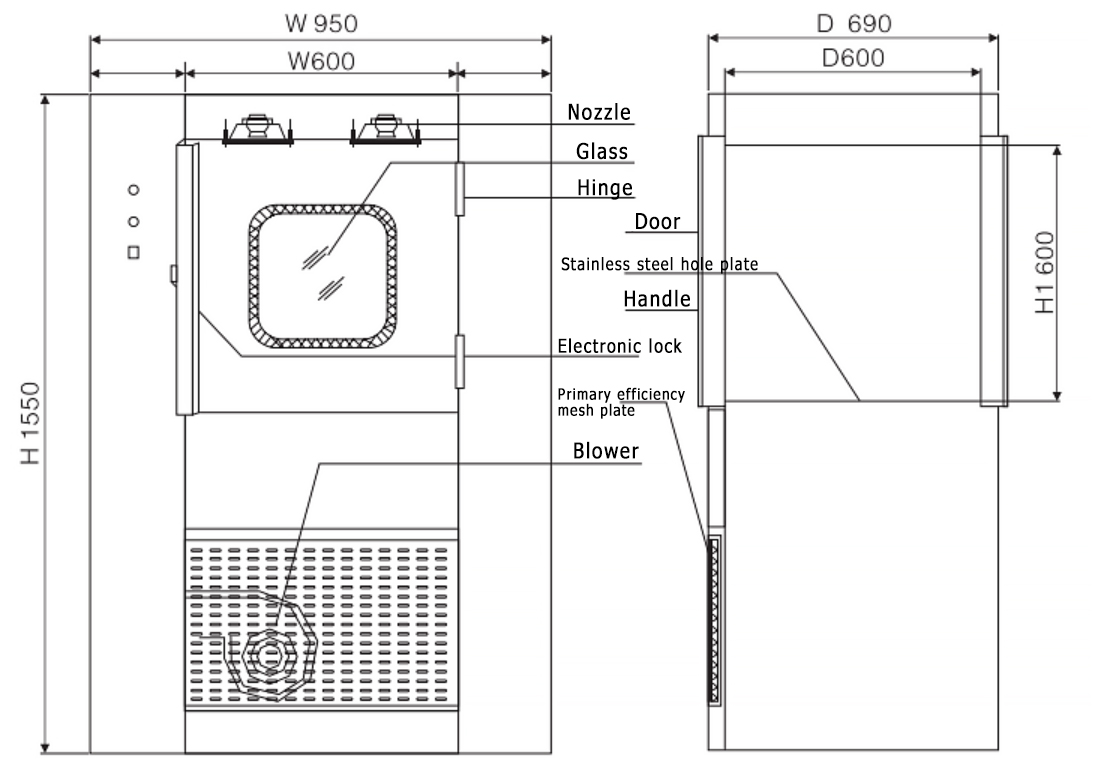

Pass through box: Main technical parameters
|
Part No. |
Air showing pass box |
|
External size (mm) |
W950*D690*H1550 |
|
Air showing size (mm) |
W600*D600*H600 |
|
Wind speed at the nozzle (m/s) |
18~22 |
|
Number of nozzles |
4 |
|
Air showing time (s) |
Factory setting 10s, 10~99s adjustable |
|
Main material |
Box body cold-rolled steel plate, inner wall stainless steel |
|
High efficiency filter size |
484*484*120mm |
|
Filtration efficiency |
99.99at0.3um |
|
Blower power (W) |
750 |
|
Power supply |
380V 50Hz |
Note: Non-standard products can be made according to customers’ requirements.
