PRODUCT
Features of fan coil units
1. High performance and high efficiency
The surface cooler is made of high-quality and efficient purple steel pipes with window-type hydrophilic aluminum fins through mechanical expansion, which reduces wind resistance and fully improves heat transfer performance.
2. Exquisite structure, strong and durable
The shell is molded, with exquisite appearance and high strength.
3. Safe operation and energy saving
Adopt high-quality bearings, no need to add lubricating oil. The fan has three speeds, which can be set according to customer needs. According to customer requirements, an anti-burning motor can be optionally equipped. The anti-burning motor is connected in series with a polymer PTC at low and medium speeds. If the wiring error causes current overload, the PTC can instantly cut off the circuit to protect the motor from damage.
4. Advanced technology and low noise
The steel fan impeller has no welding points as a whole, and the wheel frame sleeve is tightly combined and never deformed, which not only reduces the noise of the unit, but also effectively ensures the long-term stable operation of the unit. The low-noise fan coil unit uses flame-retardant ABS fan volute with light weight, which effectively reduces the noise of the unit.
5. Easy to adjust and maintain.
The unit is humanized in design and can be easily maintained and repaired by the user. The unit filter (optional accessory) can be cleaned at any time.

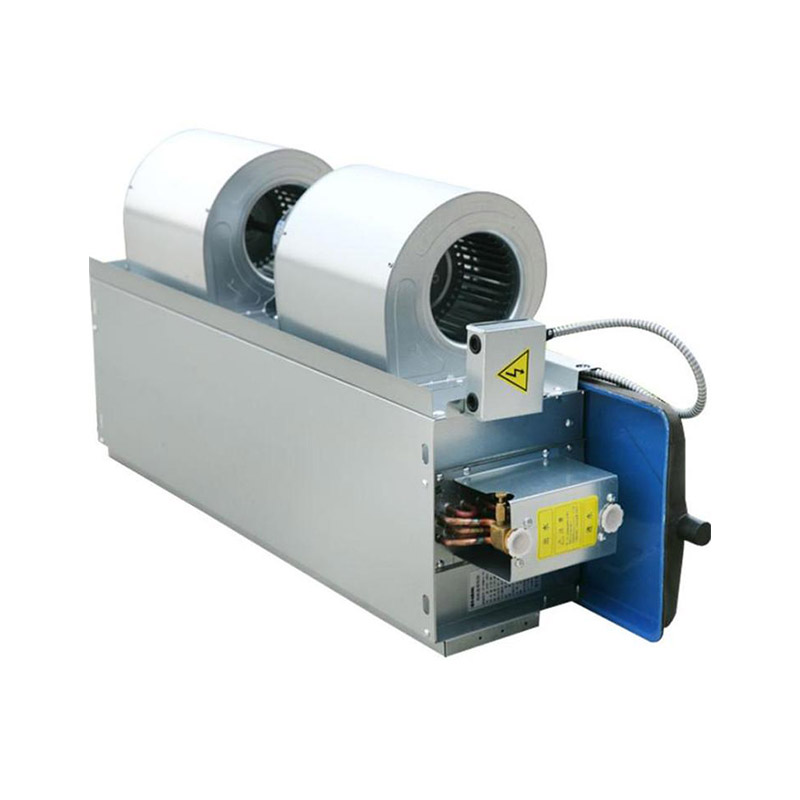

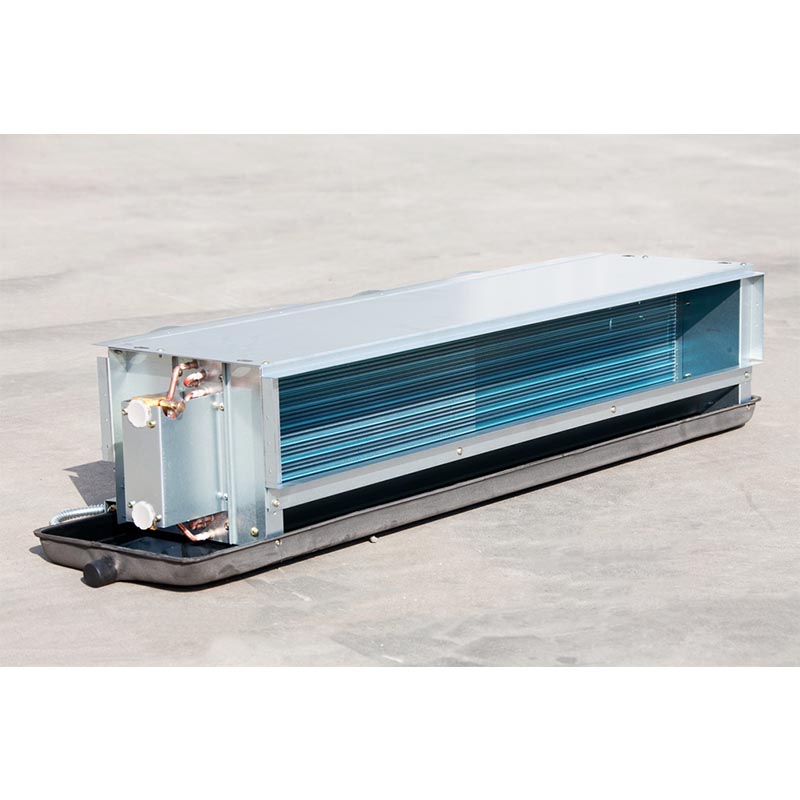

FCU fan coil unit, full name Fan Coil Unit, is the terminal device of air conditioning system. It is mainly composed of small fan, motor and coil (usually hot and cold water coil) and other components, used for cooling or heating. The following is a detailed introduction of FCU fan coil unit:
I. Working principle
The working principle of FCU fan coil unit is to circulate the air in the room through the fan in the unit, so that the air is cooled (heated) after passing through the cold water (hot water) coil to keep the room temperature constant. When cooling is required, chilled water flows in the coil, absorbing heat from the air and taking it away, thereby achieving cooling;
When heating is required, hot water flows in the coil, releasing heat into the air to achieve heating.
II. Features and applications
1. High efficiency and energy saving: FCU fan coil unit can quickly adjust the indoor temperature, and the energy consumption is relatively low, which is suitable for use in occasions where precise temperature control is required.
2. Flexible installation: FCU fan coil units have multiple installation methods such as horizontal, vertical, and wall-mounted, which can be flexibly selected according to the actual space.
3. Convenient control: Modern FCU fan coil units are mostly equipped with intelligent control systems, which can realize remote selection and control, timer switch and other functions, and are easy to operate.
4. Wide range of applications: FCU fan coil units are widely used in air conditioning systems in office buildings, hotels, shopping malls, hospitals, schools and other places.
