PRODUCT
Customized Class 100 Modular Cleanroom manufacturer

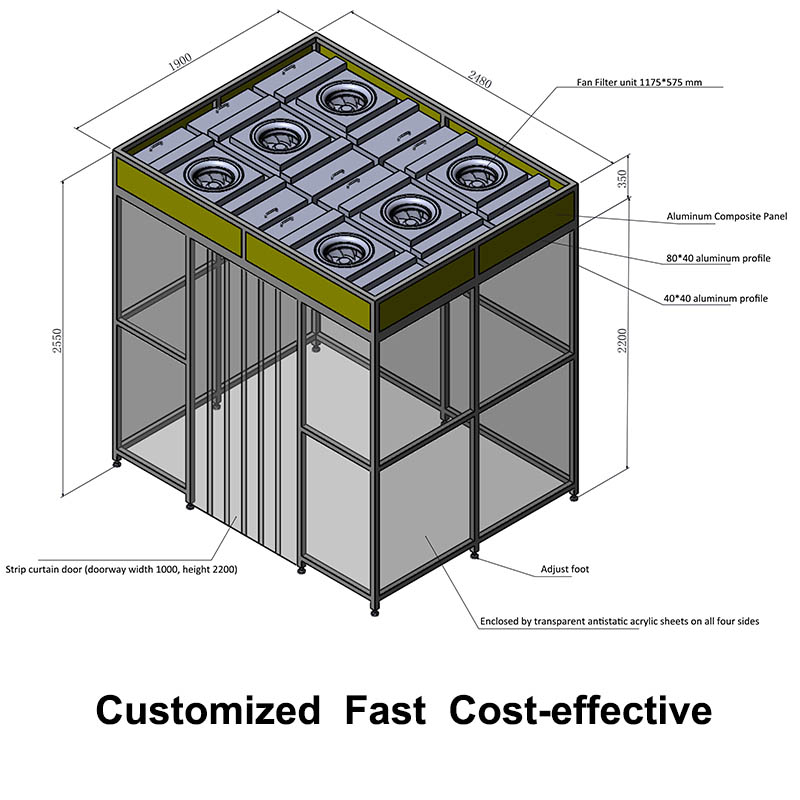

Manufacturing Specifications
1. Cleanliness Class: Class 100
2. Enclosed on all four sides with 5 mm-thick antistatic acrylic sheet.
3. Six 1175*575 FFU units, equipped with six 1170*570 H14 high-efficiency filters.
4. The frame is constructed from 80*40 and 40*40 aluminum alloy using specialized concealed connectors.
5. Equipped with M12 adjustable feet at the bottom.
6. All rough welds are polished, and burrs are removed from the edges.
7. The finished product is cleaned to cleanroom standards and wrapped with a protective film.
8. To comply with environmental policies, the surface undergoes precision grinding and polishing;
chemical electrolytic polishing (etching) is avoided to prevent environmental pollution.
Application Areas
Clean booths are particularly suitable for high-level localized cleanliness within workshops, such as assembly line work areas
and high-precision product assembly areas. They are ideal mobile devices for sampling and cargo handling in industries
such as pharmaceuticals, biopharmaceuticals, food, and electronics.
Working Principle
Air is drawn in from the top of the FFU (Fan Filter Unit), filtered through a pre-filter and a HEPA filter,
and then uniformly delivered into the clean booth at a velocity of 0.45 m/s ± 20% across the entire outlet surface.
This creates a uniform flow layer, ensuring a vertical unidirectional airflow and guaranteeing the required cleanliness level within the work area.
Advantages and Features
Compared to civil engineering or prefabricated Class 100 cleanrooms, they require less investment, offer faster results,
are easier to install, have lower operating costs, and shorter delivery cycles.
Modular structure allows for easy upgrading of cleanliness levels, strong expandability, and high reusability. Easy to move (can be equipped with casters).
The clean bench offers ample internal space, lower cost, and faster construction than traditional cleanrooms, and is not limited by floor height.
