HEPA & ULPA Filters H13–H14 • U15–U17
Product Attributes :
The frame is made of aluminum extrusion, and the imported phosphorus-free polyurethane glue is used to seal the waterproof and flame-retardant glass fiber filter element with hot melt glue, then supplemented with surface protection nets, sealing gaskets, and other components. The structure is compact, small, and light, easy to install and replace.
Product Description

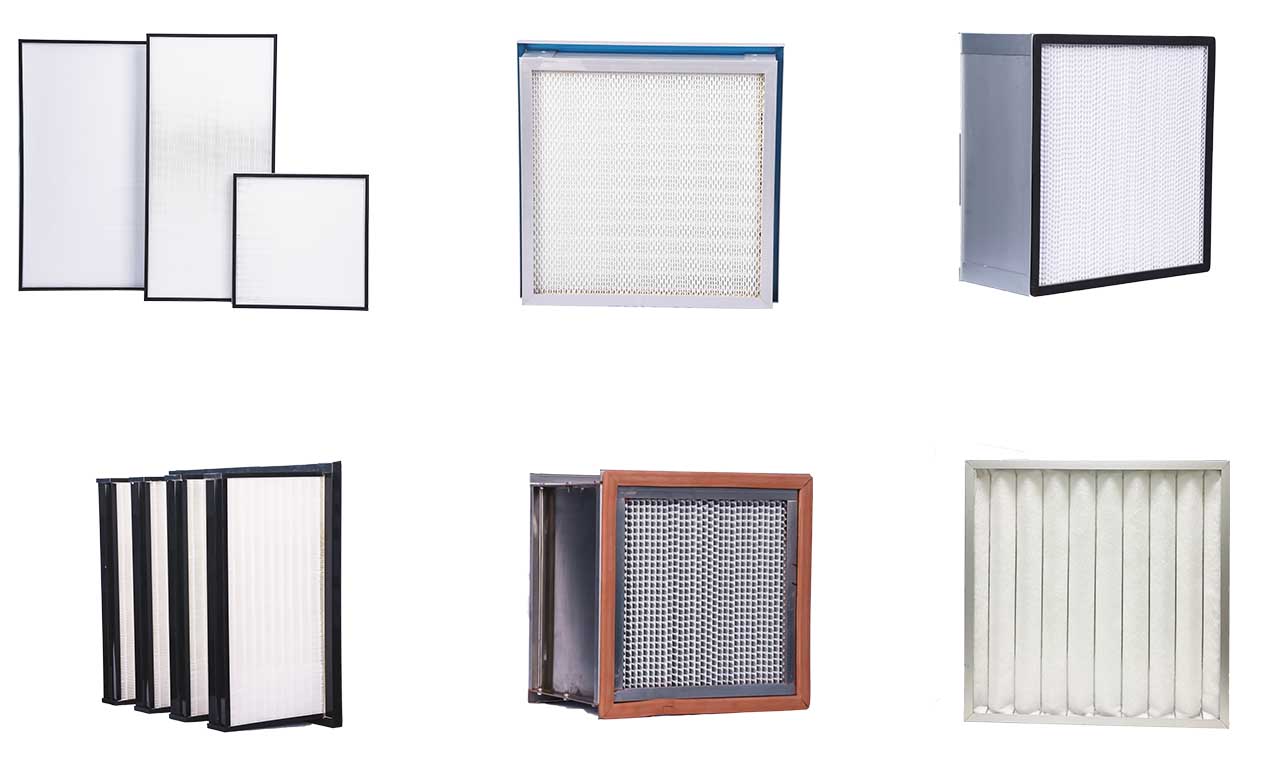

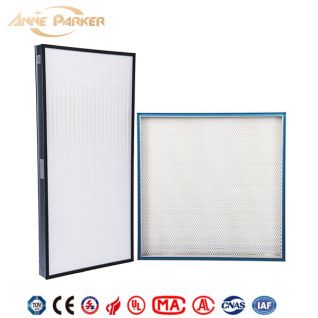

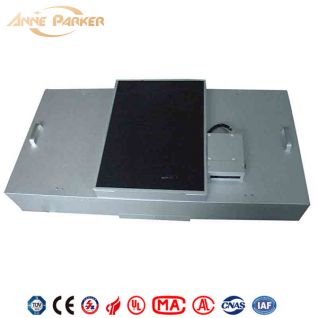

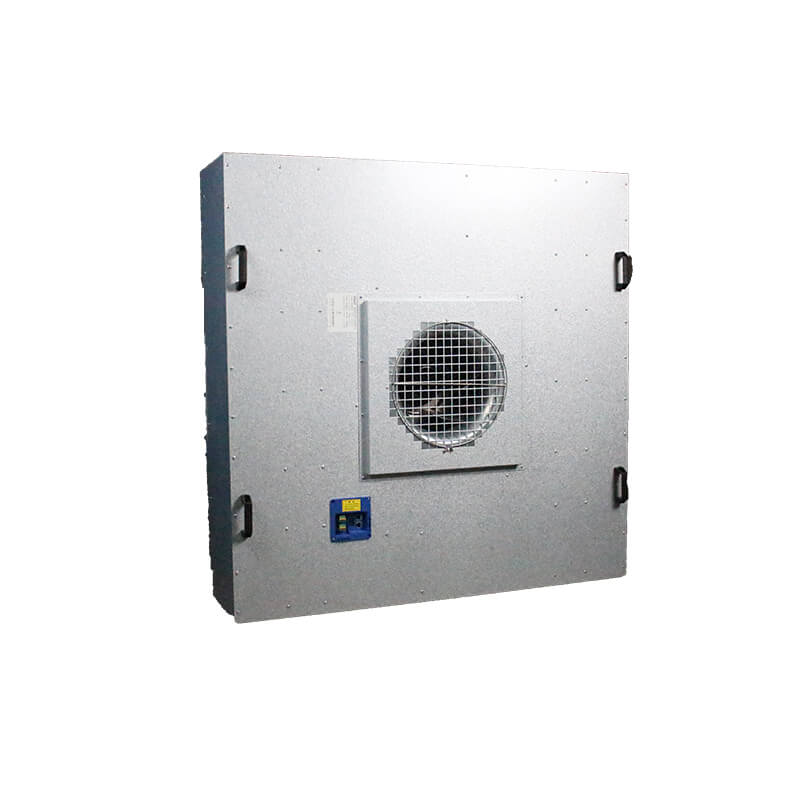

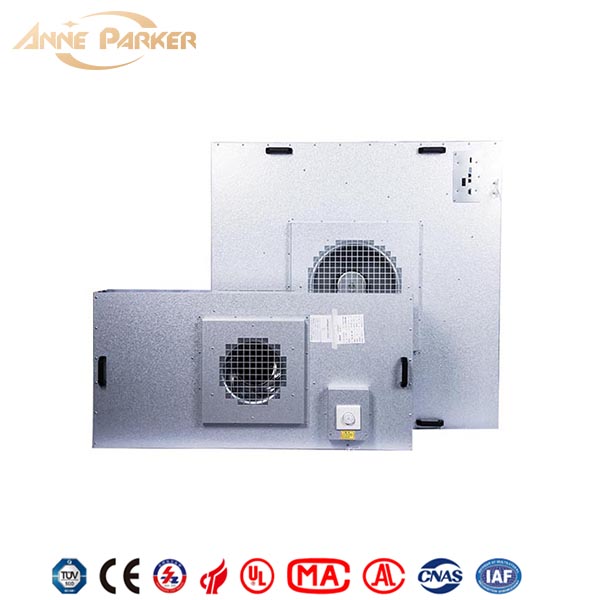

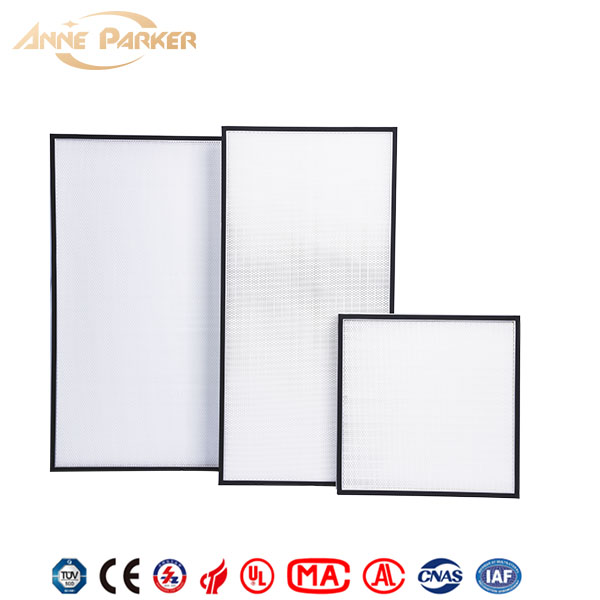

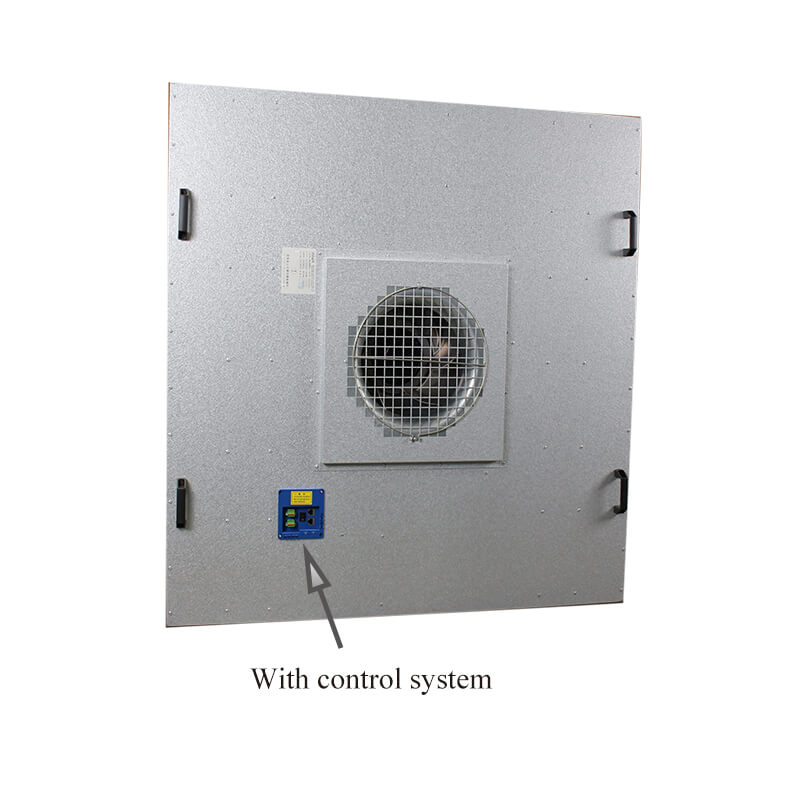

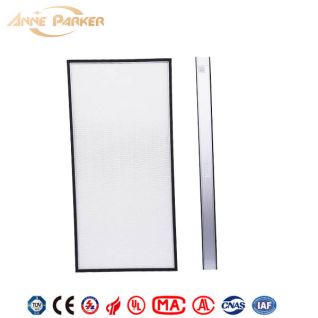

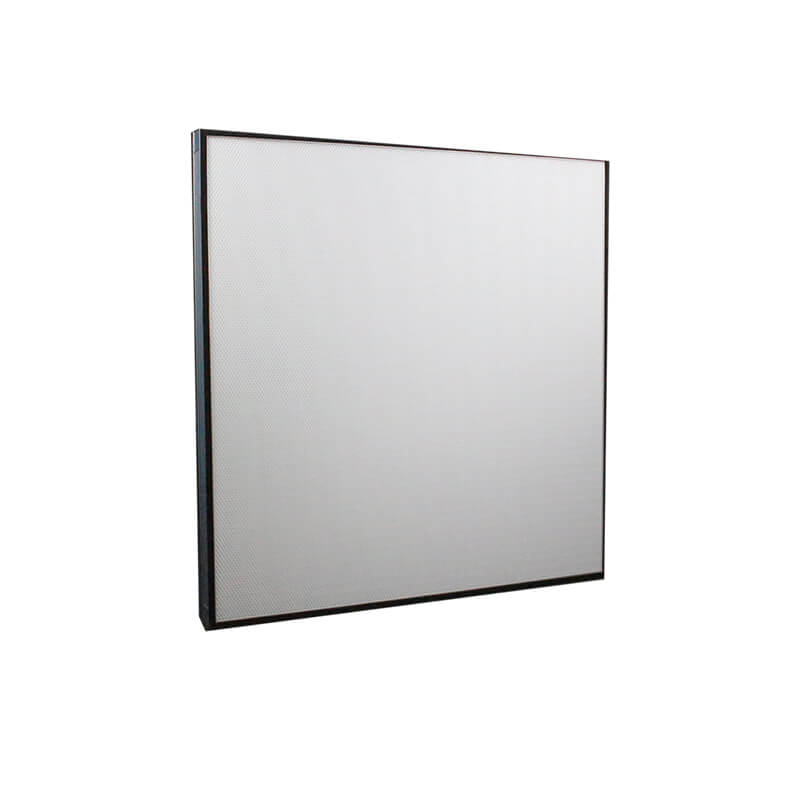

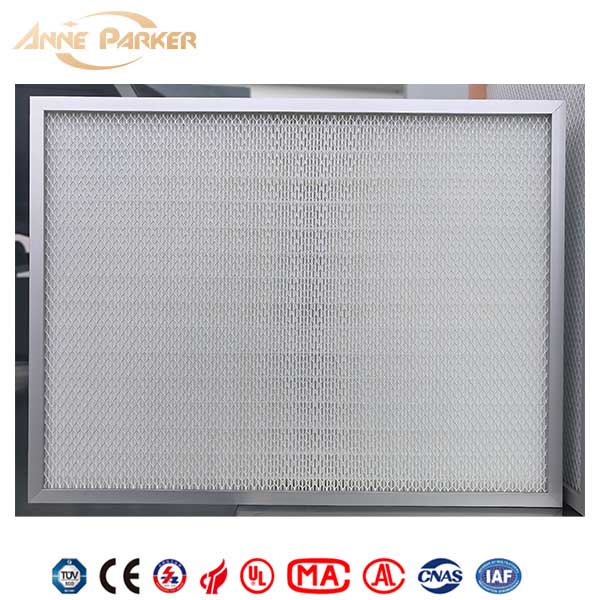

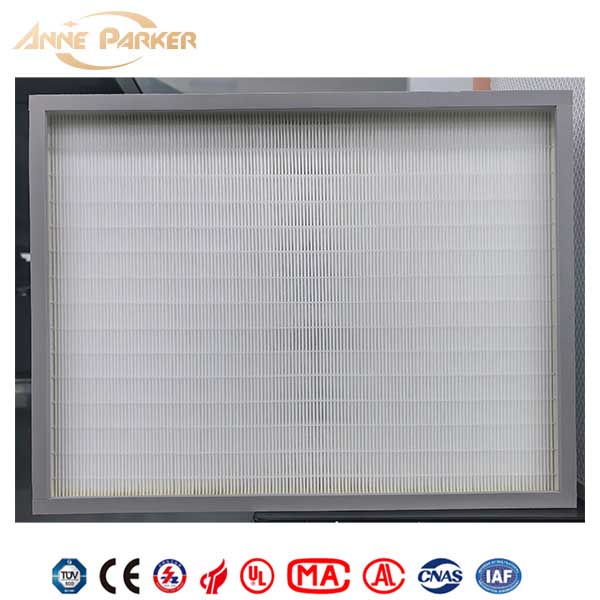

Mini Pleat ULPA filter Fiberglass ffu HEPA filter
100% leak test to ensure no leaks The industry's advanced, environmentally friendl,y water-based aerosol leak detection platform,
no secondary pollution in the test, ensuring no leaks in each filter
Test efficiency according to EN1822 to ensure efficiency According to EN1822 standard, use the American PMS laser particle
counter and PSL test particles to test the filter using the MPPS (most penetrating particle size) method to ensure that the filter efficiency meets the requirements.
No partition structure, low resistance, good energy savings. A specially designed hot melt adhesive is used to separate the HEPA filter
paper to ensure that the paper has the same reasonable spacing. The filter paper can be fully utilized to achieve uniform wind speed and low resistance.
Strict material selection, and extremely low chemical volatility All components are made of extremely low chemical volatility materials
to meet the requirements of conventional clean rooms for air filtration equipment.
Non-continuous glue spraying technology, low resistance. "V"-shaped channel, low resistance, long life.
Automatic grading, according to needs, the height and width of the filter pleats can be flexibly adjusted.
Fram
Raw Material
Filter media separator
Filtration efficiency
Continuous operating temperature
Recommended final resistance
Sealant
Protective net
Average wind speed
Rated air volume
Aluminum frame
Fiber Glass
Hot Melt Adhesive
H14 @99.995% (EN1822)
≤70°C
500pa
Polyurethane
Double-sided steel mesh spraying
0.45m/s
150m³/s
Size W*H*D(mm)
1170*1170*70
1170*1170*70
1170*1170*70
1170*570*70
1170*570*70
1170*570*70
1170*1170*80
1170*1170*80
1170*1170*80
1170*570*80
1170*570*80
1170*570*80
1170*1170*90
1170*1170*90
1170*1170*90
1170*570*90
1170*570*90
1170*570*90
1170*1170*110
1170*1170*110
1170*1170*110
1170*570*110
1170*570*110
1170*570*110
Efficiency
H13
H14
U15
H13
H14
U15
H13
H14
U15
H13
H14
U15
H13
H14
U15
H13
H14
U15
H13
H14
U15
Air Flow(m³/h)
2000
2000
2000
1000
1000
1000
2000
2000
2000
1000
1000
1000
2000
2000
2000
1000
1000
1000
2000
2000
2000
1000
1000
1000
Initial resistance (Pa)
110
125
140
110
125
140
90
105
120
90
105
120
70
95
100
70
95
100
60
85
90
60
85
90
Application
Continuous operating temperature ≤70℃
Humidity resistance ≤95%RH
Recommended final resistance ≤2 times of initial resistance
